planetary ball mill is the ideal equipment for enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time per experiment), and the vacuum ball mill can be used to grind samples in vacuum
The CYKY-XQM-10 planetary ball mill is the ideal equipment for enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time per experiment), and the vacuum ball mill can be used to grind samples in vacuum. Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical, light industry, medicine, beauty, environmental protection and other departments. Speed, forward and reverse rotation time, and total grinding time can be set according to process requirements.

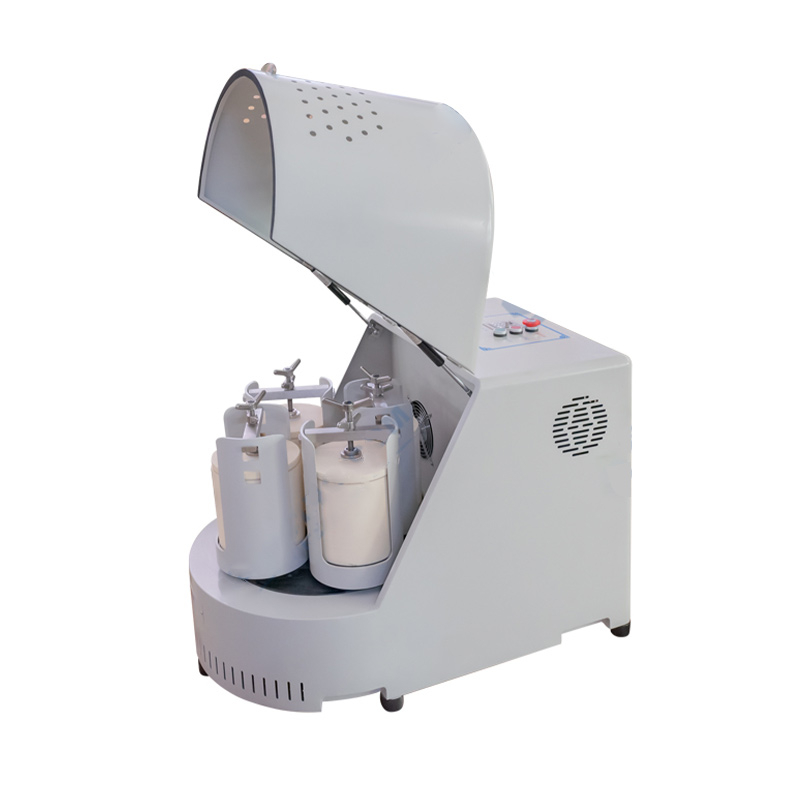

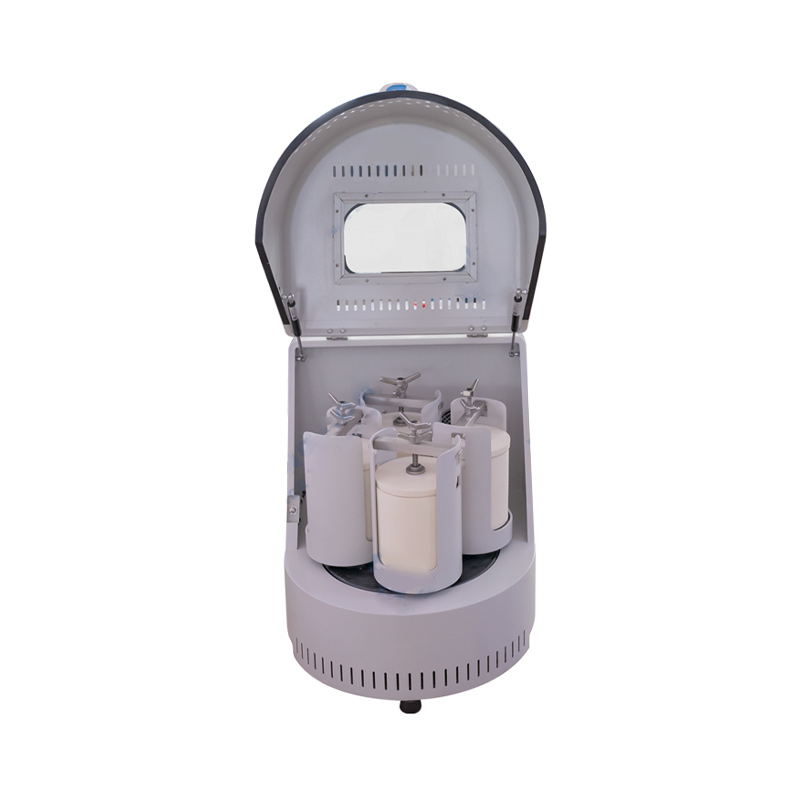

The ball grinding tank adopts the planetary movement, the ball grinding efficiency is high, the particle size is fine;
Gear drive overcomes the original belt drive easy to slip speed instability, that is, to maintain the stability of gear drive, but also overcome the original belt drive easy to slip, speed instability shortcomings;
The product is dry, wet two methods of grinding and mixing different particle size, different materials of the product, the minimum particle size of the grinding product can be 0.1 micron;
Small size, full function, high efficiency, low noise, planetary ball mill is the ideal equipment for scientific research units, colleges and universities, enterprise laboratories to obtain research samples (each experiment can obtain four samples at the same time);
The optional vacuum ball grinding tank can be used to grind the sample under vacuum condition.
Users can according to their own grinding needs, input speed, forward, reverse, grinding time and other parameters;
The equipment is equipped with a safety switch, which can prevent the equipment from starting when the safety cover is opened, so as to avoid safety accidents.
If you are interested in our Planetary ball mill, please contact us for more information and a quote.
Contact number: +8615617875939
E-mail: gordon@zztainuo.com
Contact: Gordon Zhang
Wechat: 15617875939
WhatsApp: +8613592553141
Input power | Single-phase AC220V±10%, frequency 50Hz, power about 1.5KW |
Grinding tank volume | 2.5L*4 |
Grinding tank material | Zirconia tanks. Stainless steel tanks. Zirconia. Corundum. Nylon. Teflon, etc |
Maximum charge | The material and grinding of a single tank shall not exceed two-thirds of the volume |
Feed size | Brittle materials less than 10 mm, other less than 3 mm |
Turning speed | Rotation 70~580r/min; Revolution 35~290r/min |
Transmission mode | Gear drive |
Timing time | 1-3600 minutes |
Alternate running | Timing time 1-99 minutes |
Discharge size | Up to 0.1 micron (depending on the brittleness of the material) |
Mode of operation | Variable frequency speed regulation |
Working mode | Two or four cans working at the same time |

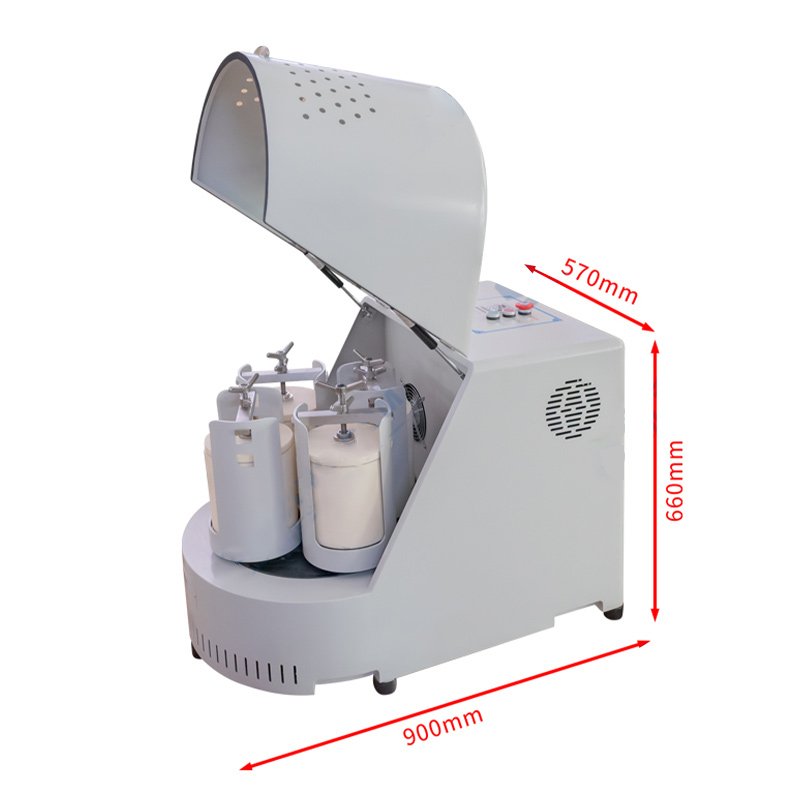

Equipment size | About L900*W570*H660mm |
Weight | About 190Kg |
Requirements | Specific specifications |
Host | 1 set |
Application field:
The application field of planetary ball mill is very wide, covering a number of industries and scientific research fields. The following are the main application areas:
Materials Science:
It is used for grinding cemented carbide, ceramics, glass, metal, plastic and other materials.
It has important applications in the preparation of nanomaterials, the synthesis of metal powders, and the ultra-fine processing of materials.
It can be used for the preparation of electronic ceramics, structural ceramics, magnetic materials, catalysts and other functional materials.
Geology and Minerals:
Provides fine grinding and mixing in geological samples, ore analysis, soil sample preparation and heavy metal analysis.
It is suitable for geological research and mineral exploration.
Agriculture and animal husbandry:
Used for soil sample processing and agricultural product quality analysis.
Contributes to agricultural research and environmental monitoring.
New energy field:
Used for the preparation of battery materials such as lithium cobaltate and lithium manganate.
Suitable for fuel cell, zinc oxide varistor and other new energy products raw material grinding.
Pharmaceutical industry:
It plays a role in the ultrafine grinding of pharmaceutical raw materials and the preparation of catalysts.
It can be used for drug preparation, dissolution, dispersion, mixing and other fields to improve drug bioavailability and reduce drug side effects.
Environmental protection:
Suitable for the preparation of environmental protection materials and waste treatment.
It has important applications in the grinding of materials needed in the treatment of waste water and exhaust gas.
Chemical & Light Industry:
It is widely used in the mixing and fine grinding of chemical raw materials, the preparation of dyes and coatings.
It is often used in synthetic chemical reaction, preparation of polymer materials and other fields, which can realize the dispersion of material molecules and the change of morphology.
Electronics and Information Technology:
Used for the preparation of electronic ceramics, MLCC (multi-layer ceramic capacitors), thermistor and other electronic components materials.
It is widely used in chip manufacturing and other fields.
Nanotechnology:
It can grind out materials with particle size up to the nanometer level, supporting the development and production of nanomaterials.
Research and Education:
As a tool for research and development of new materials and preparation of laboratory samples, it is widely used in the scientific research work of major universities and institutes.
In addition, the planetary ball mill is also widely used in beauty, metallurgy, building materials, food and other fields. Its efficient crushing, grinding, mixing and dispersing functions, as well as the characteristics of dry grinding, wet grinding, vacuum grinding and other working modes, make it an indispensable equipment in many fields.
