double dispersion axis vacuum planetary mixer is an efficient mixing equipment that integrates vacuum low speed mixing and high speed dispersing, combining with revolution and rotation motion to achieve full mixing of materials.

Inquire Now Next Product

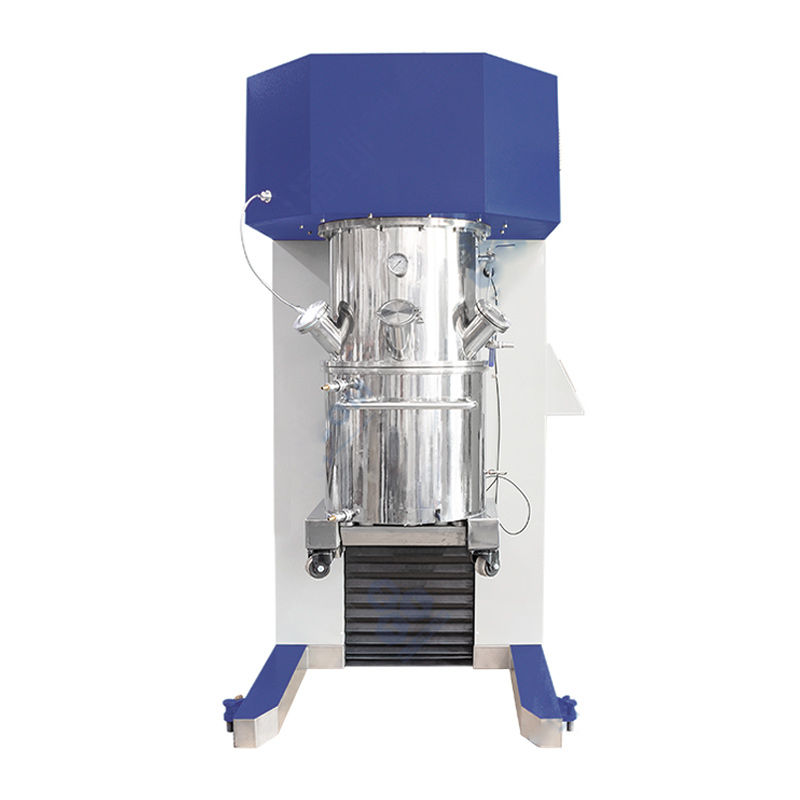

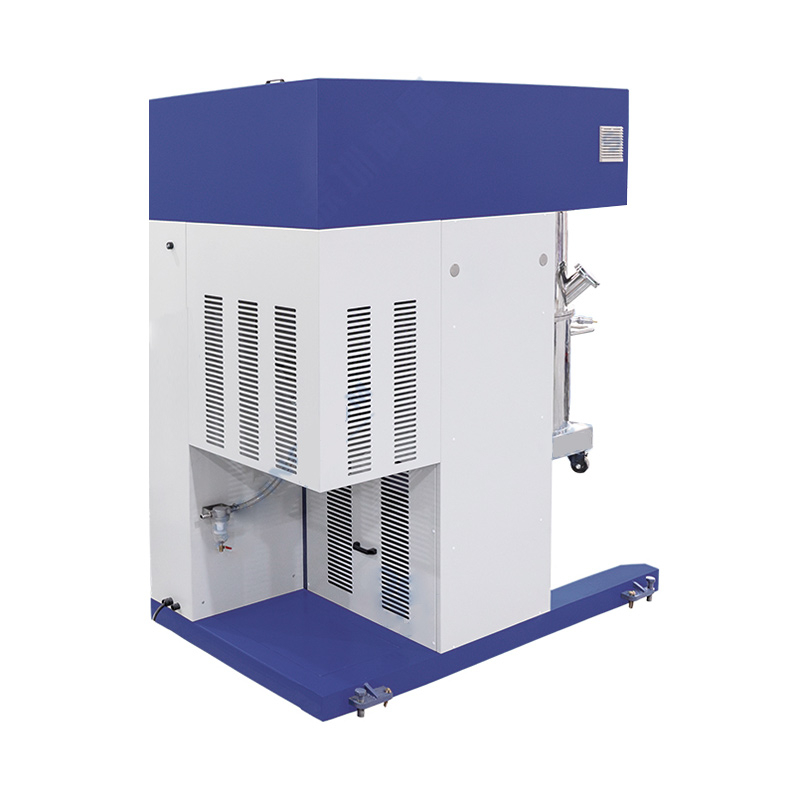

CYKY-SFM-9-100L-2 double dispersion axis vacuum planetary mixer is an efficient mixing equipment that integrates vacuum low speed mixing and high speed dispersing, combining with revolution and rotation motion to achieve full mixing of materials. It can be used in the mixing process of various solvents and powders, such as the batching process of raw materials such as lithium-ion batteries, tape, solar energy and chemical industry. The equipment has integrated design, good mixing uniformity and easy to use.

Product characteristics:

Four-paddle two-axis planetary mixing, twist frame mixing paddle with high-speed dispersion plate and wall scraping, no mixing dead Angle;

The low speed mixing achieves macro mixing through mass and rotation, and the high speed dispersing disc achieves micro mixing through shear force.

Vacuum environment, effectively eliminate the bubbles generated during the stirring process, vacuum maintenance effect is good;

The effective volume of the mixing tank is 100L, refined by high quality SUS304 stainless steel, resistant to acid and alkali corrosion;

Multi-speed operation can be performed, and the mixing speed and time of each section can be set;

Slurry bucket manual lifting design, equipped with spotlights, easy to operate, to ensure the safety of vacuum mixing process;

PLC control, HMI operation, motor overload protection and other electrical safety design;

Jacketed mixing tank design, can pass cooling water, suitable for a variety of process requirements.

Purchase information:

If you are interested in our Double dispersion axis vacuum planetary mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Electric Source	Single-phase AC380V±10%, frequency 50Hz, power about 30KW
Rack structure	Column type
Mixing method	Revolution + rotation, double stirring shaft + double dispersion shaft (total 4 dispersion plates) +1 wall scraper (Teflon)

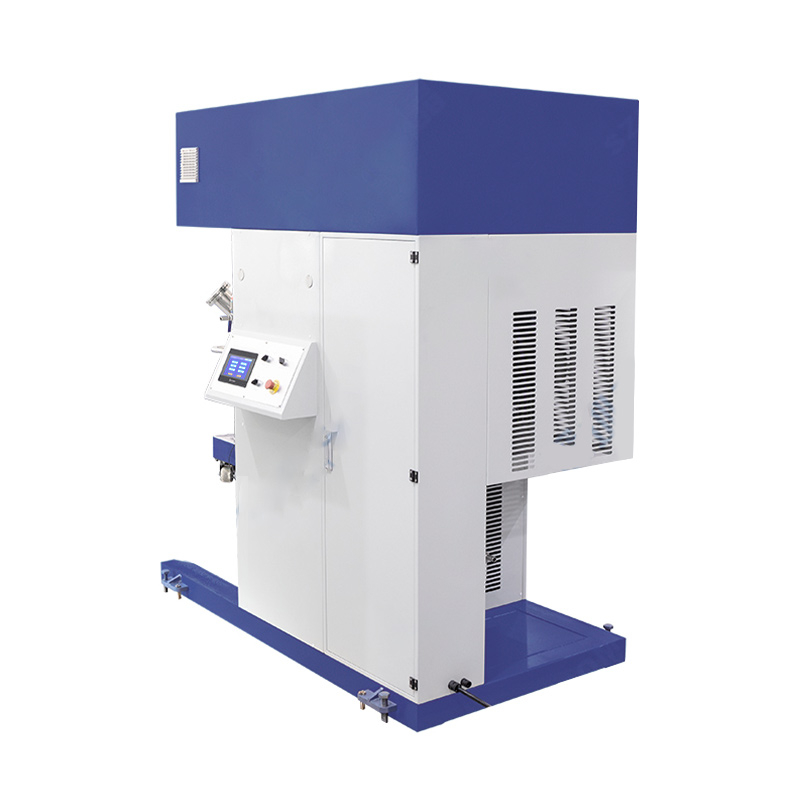

Control mode	Variable frequency speed regulation, temperature control, spotlights, lifting, running/emergency stop and other functions are displayed and operated on the control panel of the electrical cabinet. The equipment can automatically change the speed of the time segment.
Vacuum system	With vacuum buffer tank and switch; Optional vacuum pump, recommended AC380V,VRD-30
Vacuum	-0.098Mpa
Lifting system	Electric lift
Positioning system	With positioning adjustment device. Barrel body barrel cover through the positioning of the precise match, accurate position, to ensure vacuum sealing
Thermal insulation	Cooling water, no insulation required
Suitable stock	Viscosity: 1000 ~ 100,000 MPa.s, solid content 30%-80%

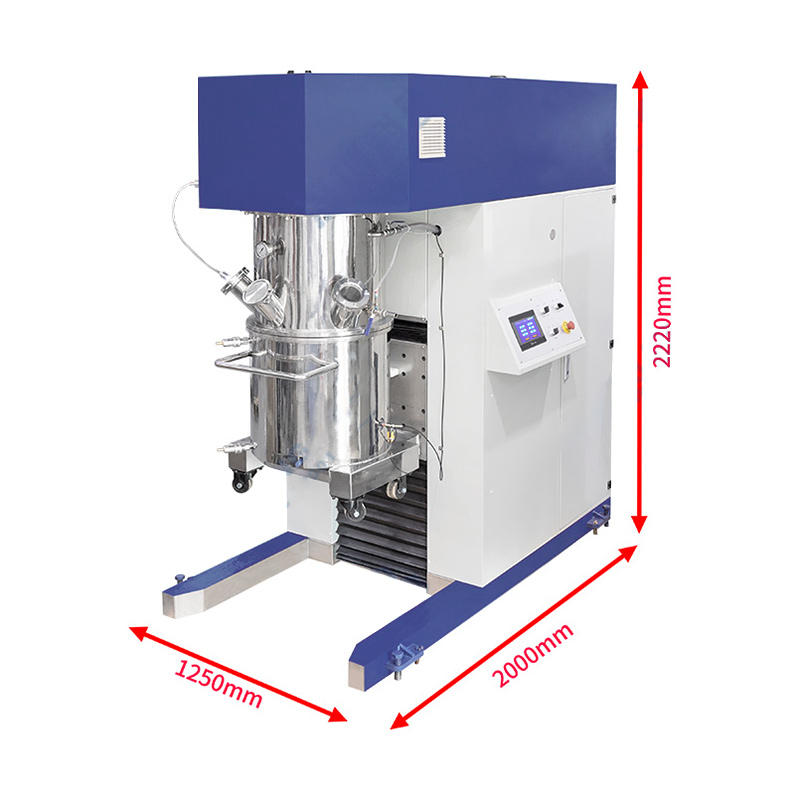

Equipment size	Approx. L2000W1250H2220mm (subject to actual size)
Heavyweight	About 2 tons
Upper barrel parts
Keg material	SUS304
Powder charging port	Quick open port DN80
Viewwindow	DN80
Spotlight port	DN80
Vacuum port	DN20
Exhaust port	One G1/2" ball valve
Lower barrel parts
Design total volume	About 149L
Effective volume	About 10L
Inside diameter of container	650mm
Depth inside container	450mm
Container material	Part in contact with material 304
Tempering jacket form	Barrel wall single-layer jacket for cooling or heating; And single-layer jacket for bottom of barrel for cooling or heating
Thermostat jacketed interface	G1/2", with quick-opening live connector, jacket pressure ≤0.4MPa, water inlet/outlet, one each
Discharge form	A DN32 ball valve at the bottom of the barrel controls the discharge port
Design ambient temperature	0 to +55℃
Mixing parts
Mixing paddle	Two groups of twist frame type mixing paddle, SUS304 material, precision machining
Transmission mode	Two drive, one chain drive; Two-stage gear drive
Paddle material	304
Number of mixing paddles	2
Paddle to paddle distance	4 to 8 mm
Distance from paddle to barrel wall	3 to 8 mm
Distance of paddle from bottom of barrel	2 to 4 mm
Disperse parts
Dispersion shaft	2 sets of dispersion shafts, each shaft is equipped with 2 dispersion disks, SUS304 material
Dispersing disc style	Zigzag
Scatter plate material	304
Number of dispersion plates	four
Number of scatter shafts	2 shafts
Wall scraping pieces
Wall scraping bracket material	304
Wall scraper material	Teflon
Wall scraping RPM	Consistent with planet box RPM
Detachable or not	Detachable design (wall scraping must be removed during high viscosity process)
Anti-stay protection
Anti-stay protection	1. Equipment with emergency stop switch, press the device immediately stop; 2. After the upper and lower barrel body is closed in place, the mixing head can start to work; 3. The upper and lower barrels cannot be opened during the mixing work; 4. The tank cannot be opened without vacuum discharge; 5. There is a protection switch in the lifting process, which can choose the slow "return material" function; 6. Automatic stop protection when the motor current is overloaded; 7. When the temperature exceeds the set value, self-stop protection; 8. Stirring host, electric control box must be grounded.
