lab vacuum mixer

    vacuum mixer, can be used in a variety of solvent and powder mixing process, such as lithium ion battery, tape, solar energy, chemical and other raw material mixing process. The equipment is beautiful in appearance

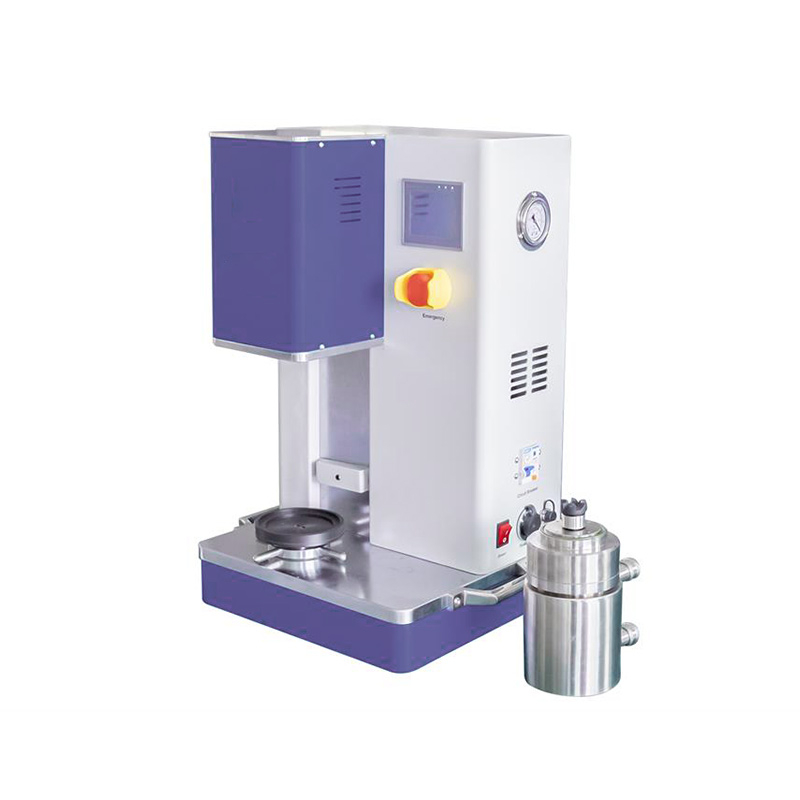

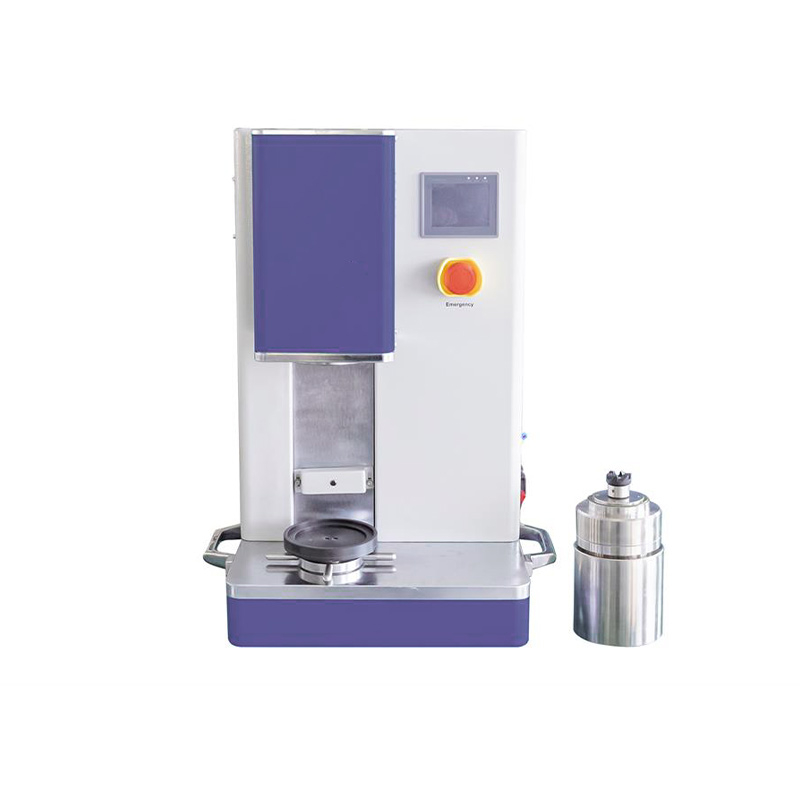

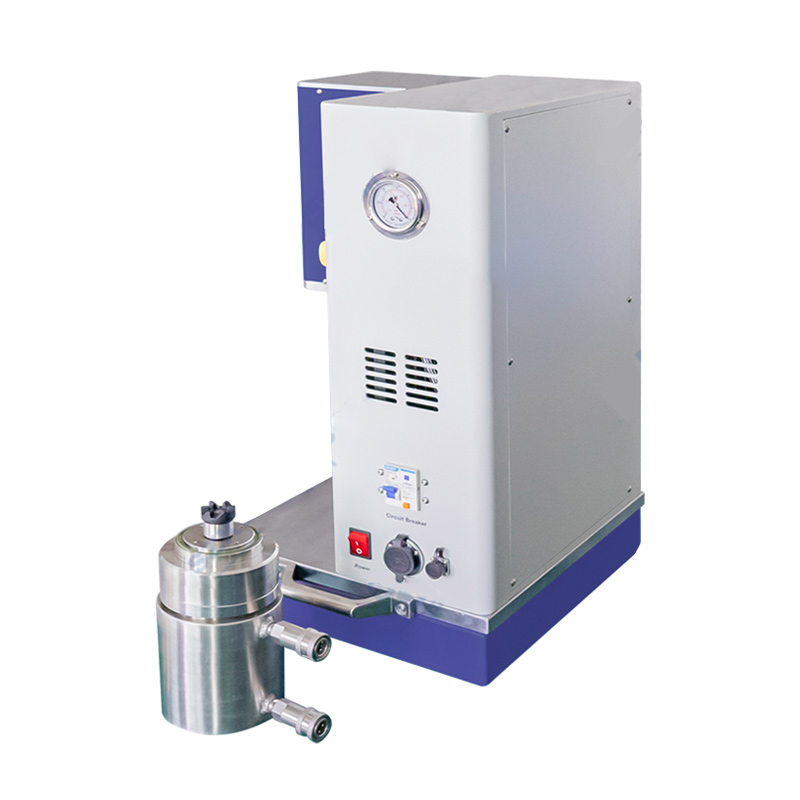

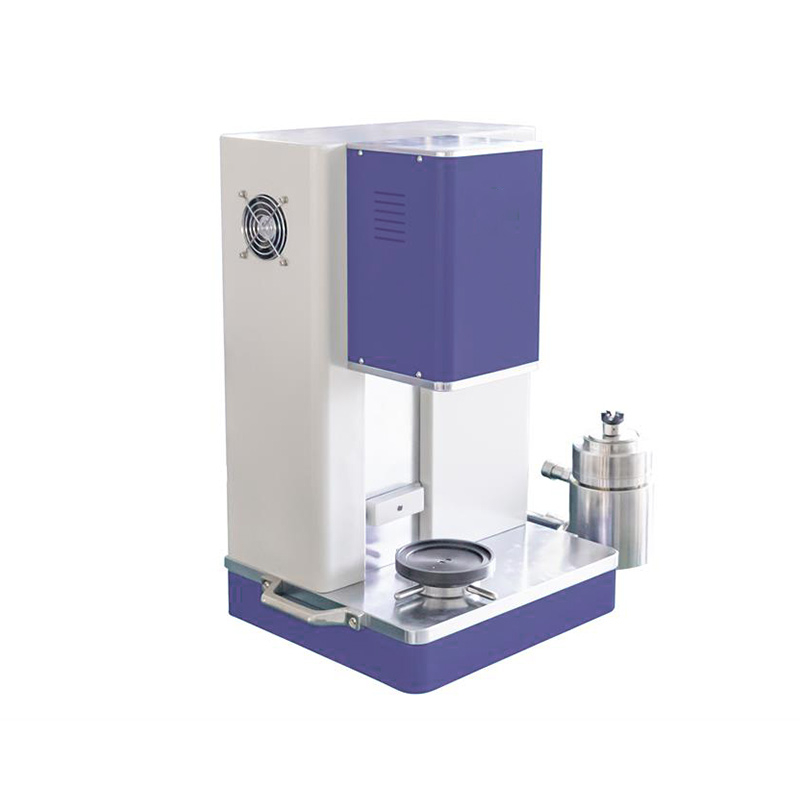

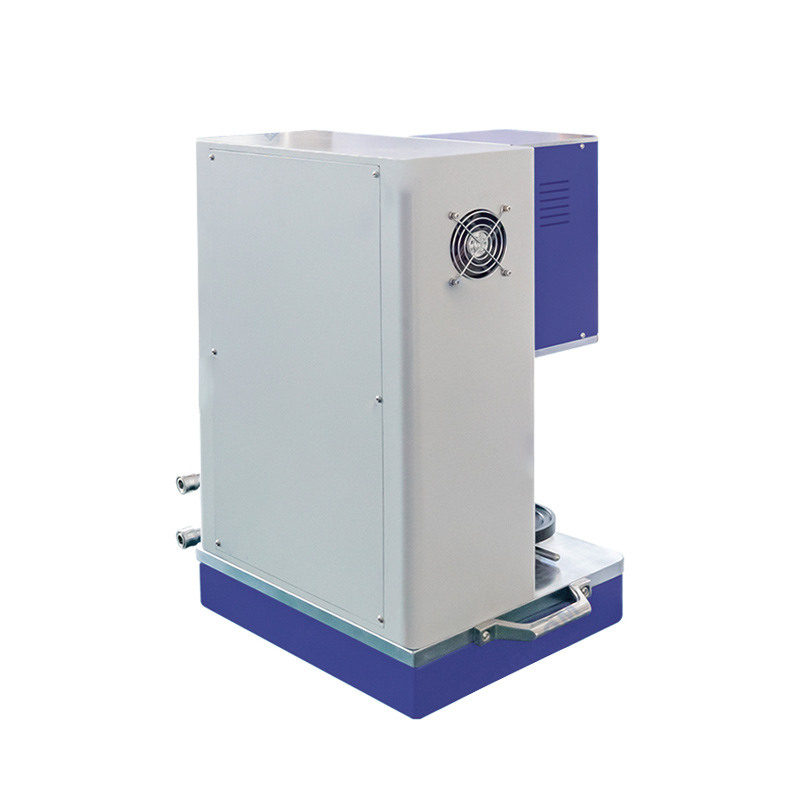

CYKY-SFM-16H vacuum mixer, can be used in a variety of solvent and powder mixing process, such as lithium ion battery, tape, solar energy, chemical and other raw material mixing process. The equipment is beautiful in appearance, small in size, easy to use, and is an ideal choice for laboratory slurry preparation.

Product characteristics:

Mixing tank is equipped with pan type and blade type mixing paddle, the mixing effect is good;

Speed 1500rpm, better mixing effect;

It can achieve high speed mixing of high viscosity slurry and good mixing uniformity;

The machine has its own vacuum system, which can effectively eliminate the bubbles generated during the stirring process;

Multi-speed operation can be performed, and the mixing speed and time of each section can be set;

Tank design cooling sleeve, can reduce the temperature of the mixing tank through cooling water, optional without cooling sleeve;

The effective volume of the mixing tank is 50ml, 200ml, 500ml and 1000ml respectively.

Bracket design, easy to operate, to ensure the safety of vacuum mixing process.

Purchase information:

If you are interested in our Vacuum mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Electric source

Single-phase AC110-220V±10%, frequency 50/60Hz, power 2KW

Use environment

Recommended ambient temperature 25±3 ° C, humidity 30-90RH, no vibration and electromagnetic   interference

Rotational speed

50ml mixing tank Max.1500rpm

200ml stirring tank revolution Max.500rpm   rotation Max.1500rpm; (Revolution: rotation =1:3)

500ml stirring tank revolution Max.500rpm   rotation Max.1500rpm; (Revolution: rotation =1:3)

1000ml stirring tank revolution   Max.500rpm rotation Max.1500rpm; (Revolution: rotation =1:3)

Vacuum

Built-in vacuum pump, vacuum degree above   or equal to -75Kpa

Stirring time

1-600min can be set

Multistage function

Three speed Settings (300-1500RPM)

Applicable viscosity

Max.10000mpa.s at 1500rpm

Agitation cooling

Method: Standard mixing tank jacket cold   water bath (optional mixing tank without cooling jacket)

Cooling water supply

Standard chiller CW-3000TG, room   temperature 0-30, (optional   without jacket mixing tank can not be equipped with chiller)

Agitator tank

50ml mixing tank -- effective capacity   15ml-50ml

200ml mixing tank -- effective capacity   30ml-200ml

500ml mixing tank -- effective capacity   60ml-400ml

1000ml mixing tank -- Reference effective   capacity 250ml-1200ml

Actual volume of mixing tank

50ml mixing tank -- 90ml volume

200ml mixing tank -- volume 500ml

500ml mixing tank -- volume 1000ml

1000ml mixing tank -- volume 1700ml

Agitator paddle

The 50ml tank is equipped with a   single-axle tray mixing paddle as standard

The 200ml tank is equipped with two-axis   tray and blade impeller as standard

The 500ml tank is equipped with   double-axle tray and blade impeller as standard

The 1000ml tank is standard equipped with   double-axis tray and blade type mixing paddle

Equipment size

L435*W330*H625mm

Weight

About 50kg

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

Planetary vacuum mixer is a kind of high efficiency stirring equipment, which has been widely used in many fields. Here are some of the main application areas:

1.  Chemical industry  : Used for the preparation of polymer materials, such as polyolefin, polyurethane, nanomaterials, etc., and the preparation of amorphous materials.

2.  Pharmaceutical industry  : It is widely used in the mixed reaction of medical polymer materials and natural drugs to make special medical materials, and in the production of preparations and preparation of drugs.

3.  Food industry  : Used in the fermentation process of lactic acid bacteria, yeast, fungi and other microorganisms mixing, reaction, growth, etc., also used in dairy products, egg products, meat products, fat food production.

4.  Electronic industry  : It is widely used in electronic materials, electronic components, batteries, photoelectric materials and other industries, especially in the preparation of electronic materials, for the mixing of electronic powders.

5.  Metallurgical industry  : It is widely used in the powder metallurgy process of tungsten and molybdenum alloy, cobalt alloy, aluminum and magnesium alloy, etc., in the preparation of metal materials through the trajectory of relative motion and collision with each other, so that the powder is mixed evenly.

6.  New energy field  : Materials for the preparation of solar panels, lithium-ion batteries and other products, the performance of these products largely depends on the uniformity and stability of the material.

7.  Cosmetics industry  : Used for emulsion preparation, etc.

8.  Electronic components  : Used for light-emitting diode (LED), liquid crystal screen (LCD), electronic components and other products in the material mixing and defoaming process.

9.  Medical devices  : Used for the preparation of medical devices and biological materials, which need to have a high degree of purity and stability to ensure the safety and effectiveness of medical products.

10.  Battery paste  : Suitable for all kinds of battery paste, paste (such as lithium battery, nickel-chromium battery, nickel-metal hydride battery, fuel cell, power battery, button battery, etc.) mixing.

To sum up, the planetary vacuum mixer plays an important role in many industries such as chemical industry, medicine industry, food industry, electronics industry and new energy industry because of its efficient and uniform mixing effect and the ability to operate in a vacuum environment.
