Lab vacuum Planetary centrifugal mixerLab vacuum Planetary centrifugal mixer

Lab vacuum Planetary centrifugal mixer

     Lab vacuum Planetary centrifugal mixer that can be used to mix a wide range of liquid or powder materials. Sample materials can be nano-powders, conductive ceramics, battery powders or slurries, carbon nanotubes, oxide powders and metal powders. This device is particularly suitable for mixing high viscosity materials.

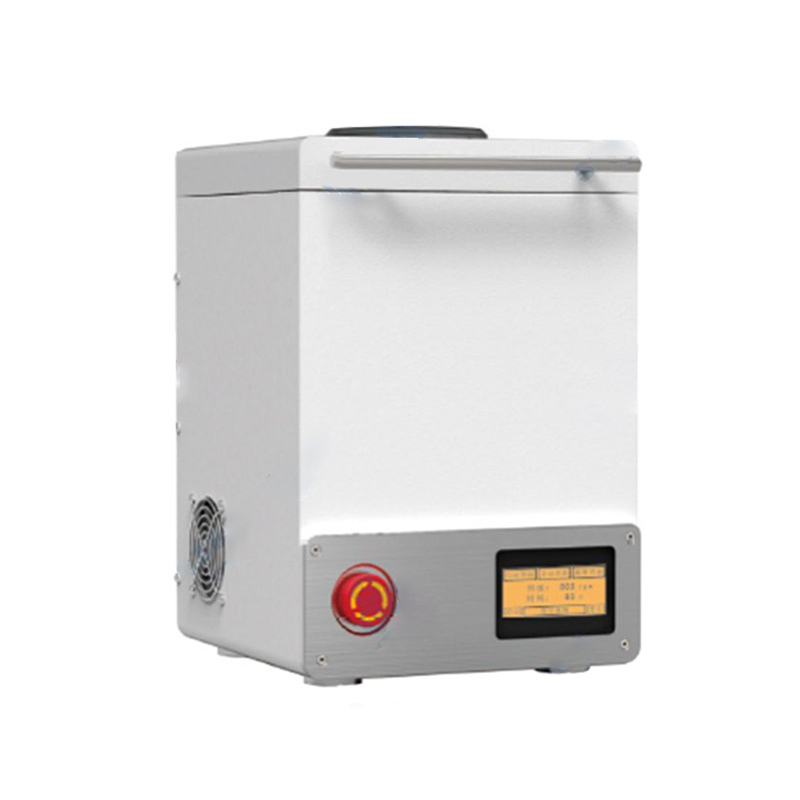

The CYKY-PCE-300V is a CE certified Lab vacuum Planetary centrifugal mixer that can be used to mix a wide range of liquid or powder materials. Sample materials can be nano-powders, conductive ceramics, battery powders or slurries, carbon nanotubes, oxide powders and metal powders. This device is particularly suitable for mixing high viscosity materials.

Product characteristics:

Dual center mixed defoaming device;

The centrifugal force of rotation and revolution cause convection and homogenize the sample material.

No contact no stirring blade, minimize pollution;

There are two operating modes: automatic and manual, and 6 modes can be stored in the automatic mode.

External cooling atmosphere and vacuum can be connected.

Purchase information:

If you are interested in our Planetary centrifugal mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Power supply

Single-phase AC 208-240V,50/60 Hz; Total   power 450W

Mixing method

Planetary centrifugal mixer

Standard container

300ml*1(Φ77*H85mm)

Maximum capacity

150mL*1; 300g*1 (gross weight)

Working principle

Planetary gravity (rotation/revolution   =0.3 times fixed) stirring/defoaming

Revolution

Speed control (300~2000rpm); Any input,   accuracy 1rpm

Autorotation

0.3 times the revolution speed

Maximum speed

2000rpm

Driving mode

400W motor

Parameter storage

6 groups

Balance regulation

Self-balancing (no counterweight   adjustment required)

Set time

Can be set up three segments, each   segment 200 seconds, a total of 600 seconds (accuracy 1s)

Vacuum system

External vacuum pump

Control system

Double closed loop, PLC control, Chinese   interface, touch screen operation

Lubrication system

Cup sleeve anti-splash structure, passive   lubrication, prevent bearing wear

Main alarm function

Out of balance/open cap/overload

Primary safety function

Automatic stop when an error occurs/Cover   automatically locks when running

Transmission mode

Gear drive

Equipment size

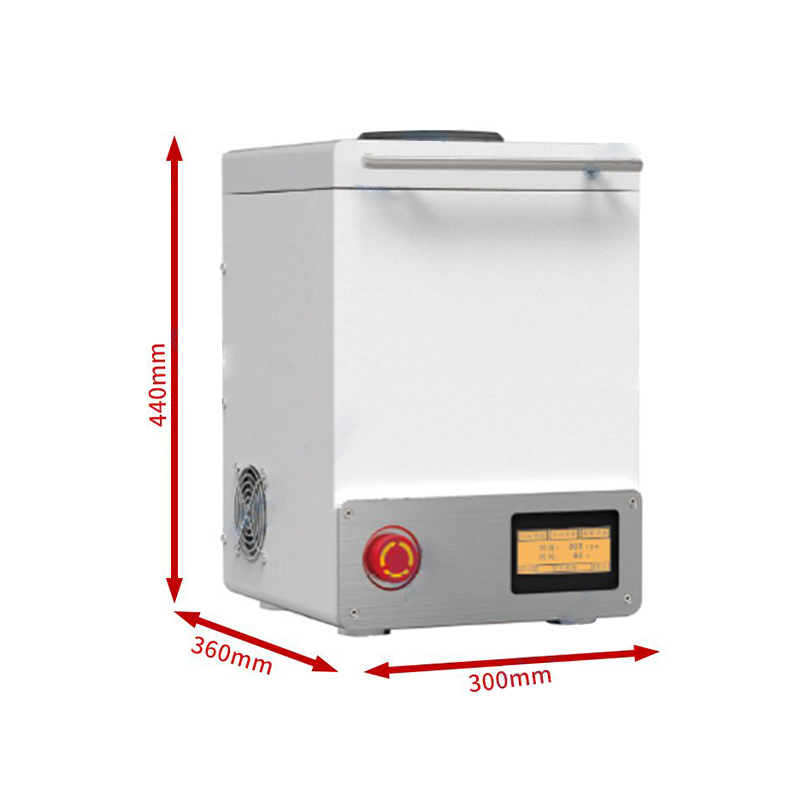

Except for the W300*H440*D360mm highligh

Weight

55kg(in kind)

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

The planetary centrifugal mixer is an efficient and versatile mixer with a wide range of applications, covering many industrial and scientific fields. The following is a detailed introduction to the application field of the planetary centrifugal mixer:

1. Material science

Nanomaterials: Planetary centrifugal mixers can be used for the mixing of nano-powders, helping to evenly disperse nanomaterials in scientific research and industrial applications.

Conductive ceramics: In the preparation of conductive ceramics, planetary centrifugal mixer can provide efficient mixing effect to ensure the conductive properties of ceramic materials.

Battery material: The mixing of battery powder or slurry is an important part of the battery manufacturing process, and the planetary centrifugal mixer can ensure the uniformity and consistency of the battery material, thereby improving the performance and safety of the battery.

2. Chemical industry

Oxide powder: planetary centrifugal mixer can be used for mixing oxide powder, suitable for the production of catalysts, pigments, coatings and other chemical products.

Metal powder: In the mixing process of metal powder, the planetary centrifugal mixer can provide a uniform mixing effect, which helps the uniform distribution of metal powder in the subsequent processing.

3. Other areas

Laboratory research: The planetary centrifugal mixer has a wide range of applications in the laboratory, and can be used for the mixing of various powders, liquids and other materials to meet the needs of scientific research experiments.

Construction industry: In the construction industry, planetary centrifugal mixer can be used to mix various building materials, such as concrete, mortar, etc., to improve the uniformity and strength of building materials.

Other industrial fields: Planetary centrifugal mixer can also be used for mixing work in glass, refractory, cement products and other industries, helping to improve product quality and production efficiency.

In summary, the planetary centrifugal mixer plays an important role in scientific research and industrial production with its efficient and uniform mixing effect and a wide range of application fields.
