Laboratory drum mixer with mixing tank

drum mixer adopts program-controlled continuous rolling mode, supporting clockwise and counterclockwise alternating rolling, with a maximum bearing capacity of 25kg. Its rolling speed can be adjusted in the range of 60-600rpm, and it has a digital display function

Inquire Now Next Product

CYKY-SFM-14 drum mixer adopts program-controlled continuous rolling mode, supporting clockwise and counterclockwise alternating rolling, with a maximum bearing capacity of 25kg. Its rolling speed can be adjusted in the range of 60-600rpm, and it has a digital display function. The equipment is suitable for a variety of mixing tanks and grinding media, and is available as an optional accessory in a variety of sizes.

Product characteristics:

● Program control: continuous rolling or intermittent rolling.

● Can control the tank clockwise and counterclockwise alternately rolling.

● Digital display, can control and display cylinder speed and other parameters.

● Running time: 1-9999min (configurable).

Purchase information:

If you are interested in our Drum mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Basic parameter	● Maximum power: 400W ● Revolution speed: 60 RPM -600 RPM adjustable ● Voltage: AC220V, 50/60Hz ● Running time: 1-9999 min (configurable)
Structure	● The equipment has a steel safety cover to ensure the safety of work, and the transparent observation window is provided above ● Optional grinding tank, liquid nitrogen tank can be used for grinding special materials ● The instrument is driven by two rollers to rotate the mixing tank ● Our unique liquid nitrogen mixing tank can be selected
Rollers and mixing tanks	● The length between the two rollers and the driving wheel can be adjusted by screws ● After the top cover is closed, a grinding tank with a length of 135 ~ 290mm and a diameter of 110 ~ 190mm can be placed. ● When the lid is open and the sensor is securely locked, the drum can accommodate up to 300mm diameter grinding tanks. ● The maximum bearing capacity of roller is 25kg ● The maximum size of the roller can be placed in the mixing tank is: Φ250175mm ● The equipment is equipped with a 2L stainless steel mixing tank (size: φ130162mm) ● Customers can choose different sizes of stainless steel mixing tank or polyurethane mixing tank ● Mixing tank material: ceramic, stainless steel, corundum, polyurethane, nylon, etc ● Suitable for mixing media: alumina, zirconia, agate, chromium steel, stainless steel, etc
Mixing medium	● Maximum loading particle size: < 5 mm ● Minimum output particle size: 200 ~ 1000 mesh
Noise	55-70 decibels
Fixed installation	● 4 V-shaped fixed brackets ● Easy to fix the tank body, can be directly installed 500ml ball mill tank, or the bottom of the nylon pad can hold 250ml ball mill tank

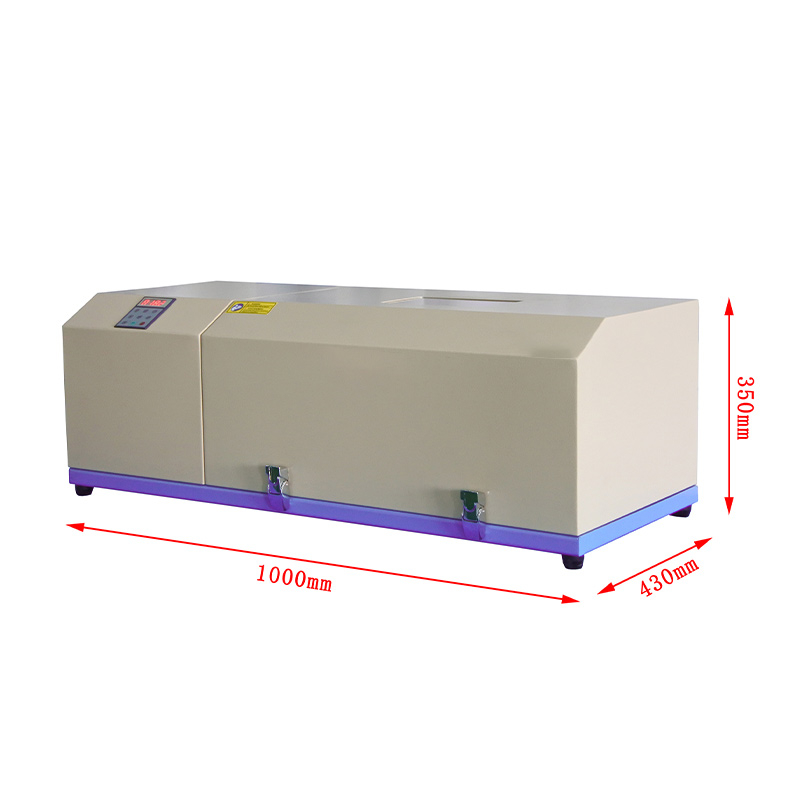

Product size	800 L x 430W x 360H, mm
Net weight	60Kg

Main components:

Requirements	Specific specifications
Host	1 set

Application field:

Drum mixers are widely used in many fields, including:

1. Geology, minerals, metallurgy : Used for material mixing and grinding in geological exploration, mineral development and metallurgical industry.

2. Electronic : In the electronics industry, horizontal planetary mixer can be used for the production of solder paste, ceramic paste, magnetic materials, silicone inks, electronic adhesives, etc.

3. Building materials : In the field of building materials, the mixer can be used to produce various sealants, adhesives and other products.

4. Ceramic : Used for raw material mixing and grinding in the ceramic industry.

5. Chemical industry : Suitable for mixing, dissolving, dispersing, homogenizing and other processes of various mixed liquids and powders in the chemical industry.

6. Light industry : In the light industry, the mixer can be used to produce a variety of ointment, polymer gel and other products.

7. Medicine : In the pharmaceutical industry, the horizontal planetary mixer can be used for the preparation of various ointment, polymer gel, etc.

8. Environmental protection : In the field of environmental protection, the mixer can be used to deal with a variety of environmentally friendly materials and processes.

9. Energy : Horizontal planetary mixer can be used for the production of various battery slurries and pastes, such as lithium batteries, nickel-chromium batteries, nickel-metal hydride batteries, etc.

10. Cosmetics, daily chemicals : In the cosmetics and daily chemicals industry, mixing machines can be used to produce moisturizer, lipstick, lotion, gel, facial mask and other products.

These application areas demonstrate the versatility and importance of horizontal planetary mixers in different industries.
