Laboratory small V-type mixer

small V-type laboratory mixer, which can be used for mixing dry powder and granular materials. The mixing structure of the machine is unique, and the material in the V-shaped cylinder of different height is reciprocated by mechanical transmission to achieve the purpose of uniform mixing

Inquire Now Next Product

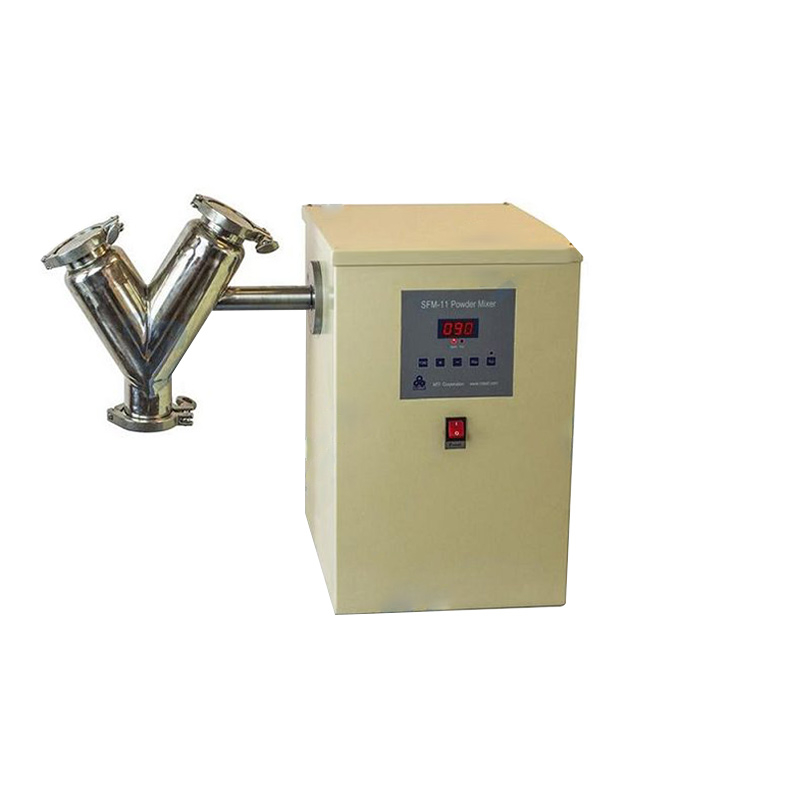

CYKY-SFM-11 is a small V-type laboratory mixer, which can be used for mixing dry powder and granular materials. The mixing structure of the machine is unique, and the material in the V-shaped cylinder of different height is reciprocated by mechanical transmission to achieve the purpose of uniform mixing. The machine has the characteristics of no dead corner in the cylinder, no accumulation of material, fast speed and short mixing time. The cylinder is made of stainless steel and equipped with a digital timer with adjustable speed. Driven by a 24V DC motor, it can be placed in the glove box and is suitable for mixing water oxygen sensitive materials.

Product characteristics:

● Unequal height V-shaped mixing cylinder can make the materials in the tank do reciprocating tumbling, to achieve the purpose of uniform mixing

● The cylinder is made of stainless steel, equipped with digital timer, adjustable speed, simple and convenient loading and unloading

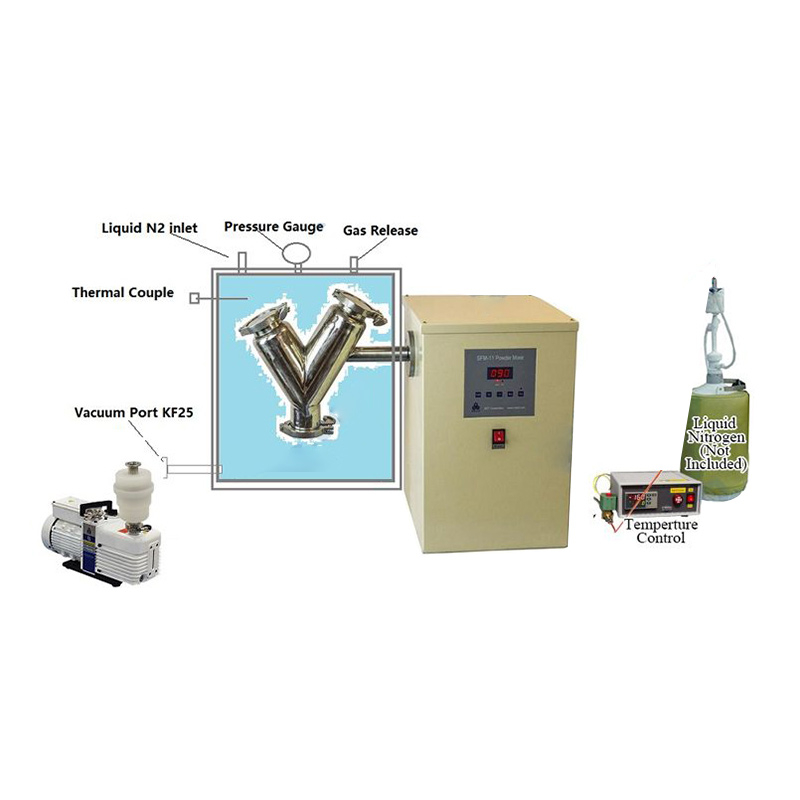

● Can be equipped with 110-240V AC to 24VDC power adapter, driven by 24VDC motor, placed in the glove box for use (Ar or N2 atmosphere)

Purchase information:

If you are interested in our Laboratory small V-type mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Working power supply	● Input voltage: AC 110-240V, 50/60Hz ● Maximum current: 3A ● Power: 25 W ● Optional 110-240V AC to 24VDC power adapter
Running time	1~900 min
Rotational speed	20~90 rpm

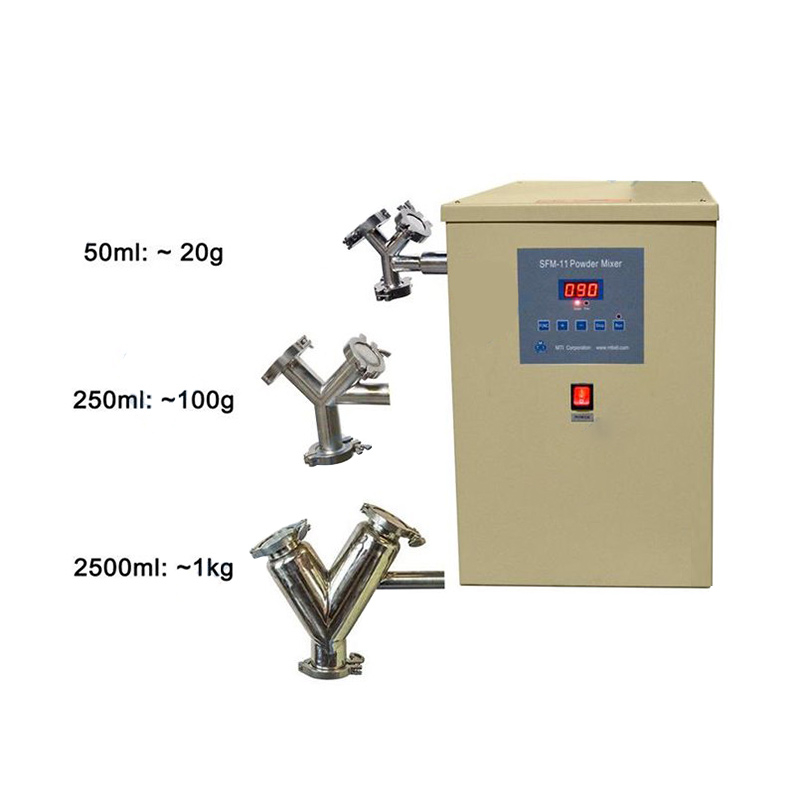

Size and capacity	● Capacity: 2.5L (usually 1000g powder particles can be placed) ● You can click on the image to view the relevant size ● The feed port adopts 2.5 "clamp interface, which makes it convenient to enter and exit materials ● Available 50mL (20g) and 250mL (100g) V-shaped cylinders (click on the right picture for details)
Selectable	● The company provides various sizes and materials of grinding ball, you can click the picture to buy ● Ball material: stainless steel, agate, alumina, zirconia ● Mixing: large size grinding ball can be used ● Grinding: large and small size combination grinding ball can be used
Product size	550×270×550 mm
Product weight	45 Kg
Quality certification	CE certification
Warranty period	Two years shelf life, lifetime maintenance

Main components:

Requirements	Specific specifications
Host	1 set

Application field:

The application field of small V-type mixer in the laboratory is very wide, mainly including the following aspects:

1. Pharmaceutical industry : Used for mixing different pharmaceutical ingredients, such as mixing panax powder and gelcoat powder.

2. Food industry : Mixing of dry powder and granular materials for food, such as mixed perfume, caffeine and Momorrhoea fruit extract.

3. Chemical industry : Suitable for the mixing of chemical raw materials, including powder or granular materials.

4. Metallurgical industry : Used for material mixing in metallurgical industry.

5. Ceramic industry : Suitable for mixing powder or granular materials in ceramic industry.

6. Electronics industry : Suitable for mixing more than two kinds of dry powder and granular materials in the electronics industry.

7. Feed industry : Used for mixing powder or granular materials in the feed industry.

8. Cosmetics industry : For the mixing of cosmetic formulations, such as mixing different cosmetic ingredients.

9. Battery industry : Suitable for mixing different materials in the battery industry, two or more kinds of dry powder, granular materials can be mixed.

10. Scientific research unit : Suitable for mixing of powder and granular materials in laboratory scientific research units.

These application areas demonstrate the versatility of the laboratory's small V-type mixer and its wide applicability in different industries.
