lithium battery slurry iron removal filter processorlithium battery slurry iron removal filter processor

lithium battery slurry iron removal filter processor

     slurry iron removal filter processor, as a slurry iron removal filter processing equipment, is used to optimize the slurry treatment of lithium ion battery after the positive and negative slurry batching and before coating

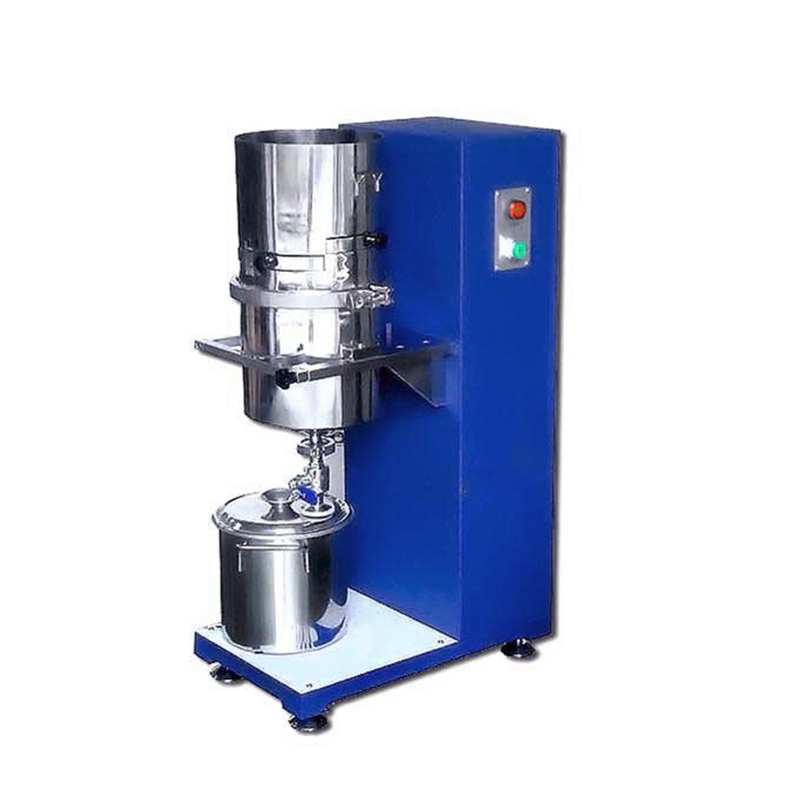

CKY-FT02 slurry iron removal filter processor, as a slurry iron removal filter processing equipment, is used to optimize the slurry treatment of lithium ion battery after the positive and negative slurry batching and before coating. The equipment is equipped with two functions of iron removal and vacuum filtration.

Product characteristics:

Filter tank all stainless steel design, good acid and alkali corrosion resistance;

Configure the vacuum system to achieve filtration, can be configured according to the requirements of different mesh filter;

Equipped with permanent magnet for iron removal, the magnet can be easily removed for easy cleaning;

Optimize slurry granularity to improve coating product consistency.

Purchase information:

If you are interested in our Slurry iron removal filter processor, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Input power

Voltage single-phase 100-240VAC±10%, frequency 50Hz/60Hz, power 60W, less than 4Ω grounded

Processing content

Vacuum filtration, magnetic separation of   iron, intermittent treatment

Processing capacity

5L/ time

Vacuum degree

Built-in vacuum pump, absolute vacuum   65KPa

Screen specification

Below 1000 mesh, lithium battery 80~120   mesh is recommended

Iron removal capacity

8000-10000 Gauss (magnetic rod ×7)

Stock condition

Recommended viscosity 20000CP, solid content 80%

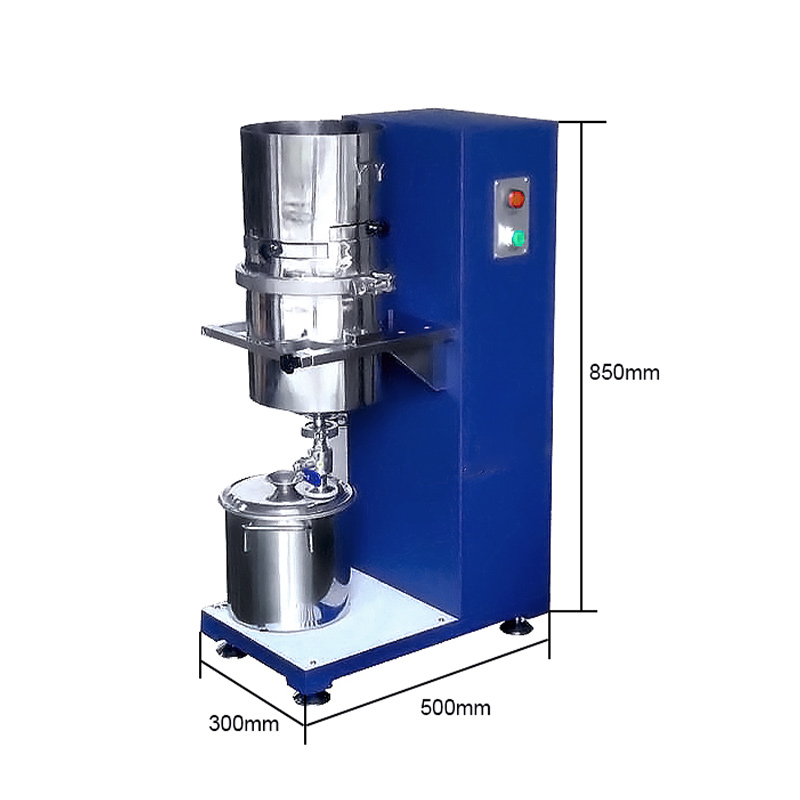

Equipment size

L500*W300*H850mm

Weight

40Kg

Main components:

Requirements

Specific specifications

Host

1 set

 Application field:

Pulp iron removal filter processor (also known as pulp iron removal) is an important industrial equipment, its application field is quite wide. The following are the main application areas of slurry iron removal filter processors:

1. Ceramic production

During the ceramic production process, glazes and other pastes may contain iron impurities, which can affect the appearance and quality of ceramic products. The slurry iron removal filter processor can effectively remove these impurities and improve the purity and beauty of ceramic products.

2. Glass manufacturing

In the process of glass manufacturing, iron impurities in raw materials may cause problems such as uneven color and bubbles in glass products. The use of slurry iron removal filter processor can ensure the purity of glass raw materials and improve product quality.

3. Food processing

In food production, especially in liquid foods (such as juices, beverages, etc.) and foods containing solid particles (such as sauces, mousse, cream, liquid chocolate, etc.), there may be tiny iron impurities. The pulp iron removal filter processor can ensure the safety and hygiene of food and prevent impurities from causing harm to consumers.

4. Chemical industry

The chemical slurry may contain iron catalyst residues or other iron impurities, which will affect the performance and quality of the product. The slurry iron removal filter processor can remove these impurities and improve the quality and stability of chemical products.

5. Paper industry

In the papermaking process, the slurry may contain iron impurities, such as rust, iron filings, etc. These impurities can affect the quality and performance of the paper. The pulp iron removal filter can remove these impurities and improve the purity and quality of the paper.

6. Mining and Metallurgy

In the mining and metallurgical industries, ores or metallurgical slurries may contain ferrous minerals or other magnetic impurities. The iron removal filter processor can be used for ore pretreatment or metallurgical slurry purification to improve the efficiency and product quality of the subsequent process.

7. Environmental protection

In the field of environmental protection such as wastewater treatment and sludge treatment, the slurry iron removal filter processor can be used to remove iron impurities in wastewater or sludge, improve water quality and sludge quality, and reduce environmental pollution.

8. New energy industry

In the new energy industry, such as the production of lithium battery materials, the slurry iron removal filter processor can be used to remove iron impurities in the material and improve the purity and performance of the material.

9. Other areas

Slurry iron removal filter processor is also widely used in power, plastics, rubber, pharmaceuticals, dyes, electronics and other industries, in these industries, as long as it is necessary to remove the ferromagnetic impurities in the slurry, slurry iron removal can play an important role.

In summary, the slurry iron removal filter processor has a wide range of applications in many industries, which can ensure the purity and quality of the product, improve production efficiency, and reduce environmental pollution.
