lithium battery slurry Vacuum ultrasonic processorlithium battery slurry Vacuum ultrasonic processor

lithium battery slurry Vacuum ultrasonic processor

    Vacuum ultrasonic processor on a vacuum chamber with a high quality soundproofing chamber and a stainless steel lifting platform. Used for dispersing nano solution, liquid phase coprecipitation averaging, is the sol-gel method to prepare a new generation of LED phosphorus material, lithium battery slurry and high-quality film ideal tool

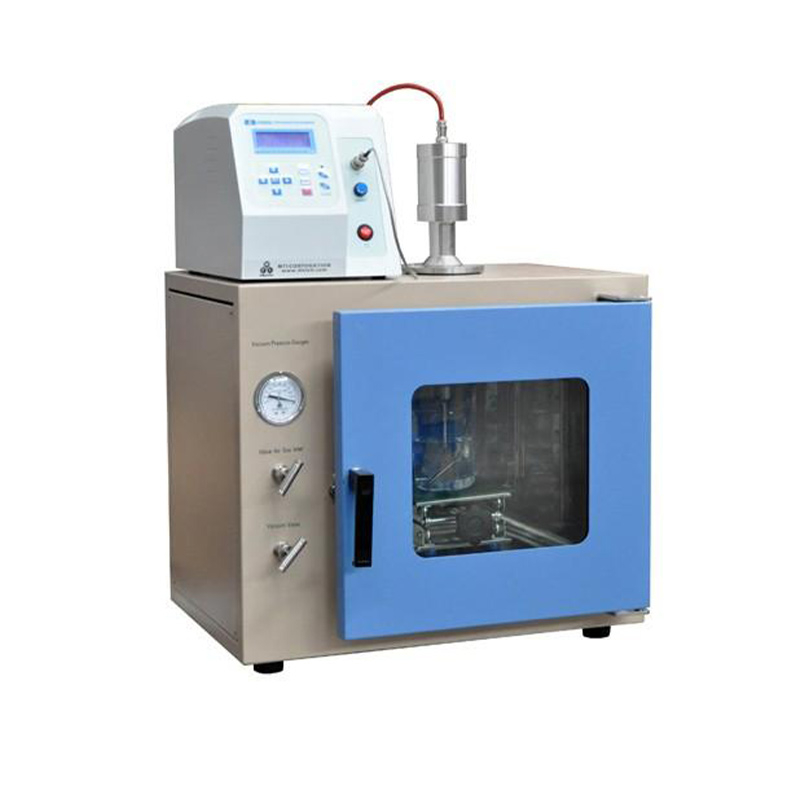

The CYKY-VUSP-12 is a Vacuum ultrasonic processor on a vacuum chamber with a high quality soundproofing chamber and a stainless steel lifting platform. Used for dispersing nano solution, liquid phase coprecipitation averaging, is the sol-gel method to prepare a new generation of LED phosphorus material, lithium battery slurry and high-quality film ideal tool.

Product characteristics:

Efficient processing: The vacuum ultrasonic processor uses the cavitation effect, mechanical effect and thermal effect of ultrasonic waves to efficiently process samples, such as dispersed nanosolutions and liquid phase co-precipitation averaging.

Precise control: The equipment is usually equipped with accurate control systems, such as automatic resonance point and power control, 99-hour process control timer, working time display, on/off pulse timer, etc., which can achieve accurate control of the processing process.

Temperature protection: A temperature sensor is usually installed in the vacuum room to monitor the temperature of the sample in real time to avoid damage to the sample caused by excessive temperature.

Compact: Vacuum ultrasonic processors are usually designed to be compact, take up little space, and at the same time be easy to operate and maintain.

Versatility: The device can be used in a variety of application scenarios, such as the preparation of LED phosphorus materials, lithium battery slurry and high-quality films by sol-gel method, and has a wide range of application prospects.

Purchase information:

If you are interested in our Vacuum ultrasonic processor, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Input power

Ultrasonic welding head: single-phase   208-240VAC 50-60Hz, 1200 W Max.

Vacuum pump: single-phase 220VAC/ 50-60Hz   375W

Ultrasonic processor output power

Max: 1200 W

20 KHz

Processor head

It's made of titanium

Diameter 12 mm (standard)

Weight: 400g

Handling liquid volume: 100 mL-2000 ml

Timepiece

The digital timer is displayed by LC   panel

Adjustable from 1 second to 99 hours

Built on the temperature controller

Vacuum chamber and pump

The ultrasonic processing head is   installed in a 53L stainless steel vacuum drying oven
  Chamber size: 16x13x14"

A stainless steel lifting platform is   used to adjust the proper height of the container

Temperature controller: A temperature   sensor installed in the vacuum chamber is used to detect the temperature of   the sample to avoid excessive temperature and damage to the sample

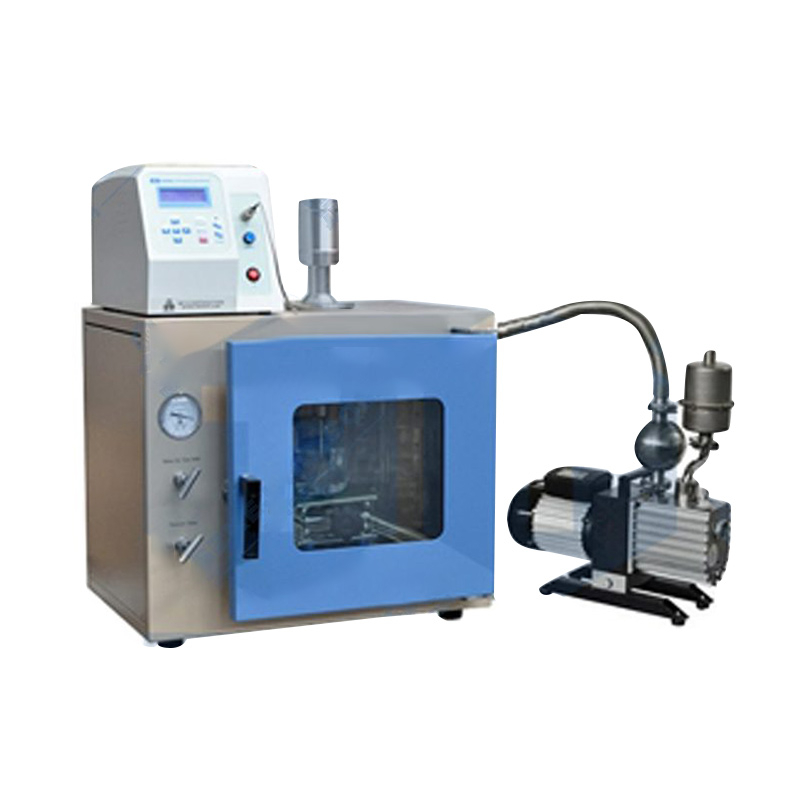

Optional 120L/M mechanical pump,   mechanical pump installed on the vertical oil filter, can filter the vacuum   pump when the oil, reduce the loss of pump oil, and protect the environment   and human health. In addition, the KF-25 interface is used to connect the   vacuum pump

Maximum vacuum: < 1 torr

Dimension

Cavity size: 270 (L) ×240 (W) ×400 (H) mm

Operation table size: 365 (L) ×235 (W) ×215 (H)

Ultrasonic welding head: 425mm (L)

Warranty period

One year warranty, lifetime maintenance

Quality certification

CE marked

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

The application field of vacuum ultrasonic processor is quite wide, and the following are its main application directions:

Materials Science:

Nanomaterials preparation: High quality nanomaterials are prepared by dispersing nanomaterials.

Sol-gel method: used to prepare LED phosphorus materials, films, etc., to improve the uniformity and performance of the material.

Composite material preparation: promote the mixing and dispersion between different materials to improve the performance of composite materials.

Chemical Engineering:

Chemical reaction acceleration: Using the cavitation effect of ultrasonic to accelerate the chemical reaction rate and improve the yield.

Catalyst treatment: Improve the dispersion and activity of the catalyst, optimize the catalytic performance.

Chemical synthesis: In the vacuum environment, avoid the influence of air on the synthesis reaction, improve the purity and quality of the synthetic product.

Bioengineering:

Cell crushing: Used to break cells and release substances in cells for subsequent extraction and analysis.

Protein extraction: Improve the efficiency and purity of protein extraction, suitable for biopharmaceutical and biological science research.

Microbial treatment: used for the crushing and inactivation of bacteria, viruses and other microorganisms, suitable for the field of biosafety.

Food processing:

Emulsification and homogenization: improve the emulsification stability and homogenization of food, improve the taste and quality of food.

Extraction and concentration: Extract active ingredients from food raw materials to improve extraction efficiency and purity.

Sterilization and preservation: using the cavitation effect and mechanical effect of ultrasonic wave to kill microorganisms in food and extend the shelf life of food.

Environmental Science:

Wastewater treatment: degradation of organic matter and pollutants in wastewater, improve wastewater treatment efficiency.

Sludge treatment: improve the dewatering efficiency and reduction effect of sludge, and reduce the cost of sludge treatment.

Other areas:

Pharmaceutical manufacturing: used for mixing, dispersing and emulsifying operations during drug preparation.

Electronic materials: for the preparation of high-quality electronic materials, such as films, coatings, etc.

Textile printing and dyeing: improve the dyeing rate and fixing rate of dyes, improve the dyeing effect of textiles.

In short, the vacuum ultrasonic processor has a wide range of application prospects in many fields by virtue of its characteristics of high efficiency, precision and multi-function. With the continuous development of technology, its application field will be further expanded.
