Lithium-ion battery High shear dispersing emulsifier with a speed memory function that allows the speed to be pre-set and paused at any time. Three different pass stator heads can be applied to a variety of different viscosity of the slurry, can be used in a variety of large and small reactors, ordinary containers and vacuum containers to achieve material dispersion, emulsification,

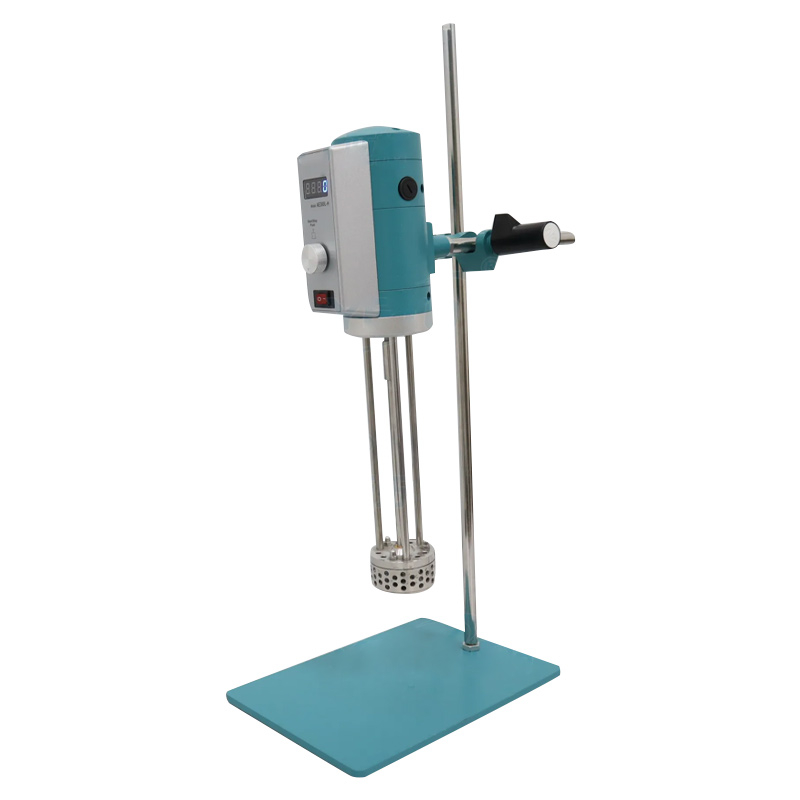

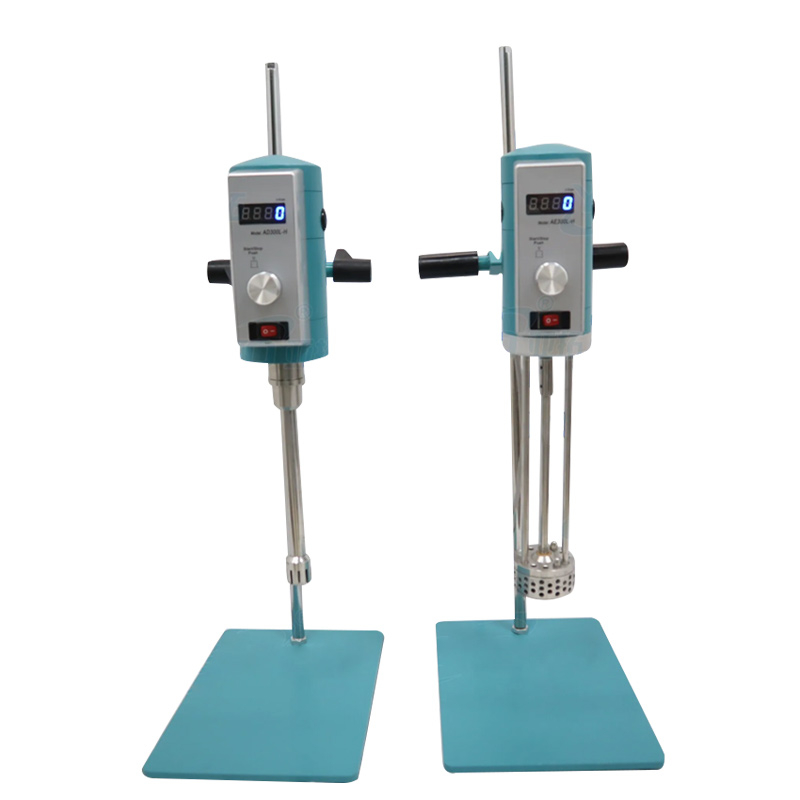

The CYKY-SFM-500D-S is an upright mounted Lithium-ion battery High shear dispersing emulsifier with a speed memory function that allows the speed to be pre-set and paused at any time. Three different pass stator heads can be applied to a variety of different viscosity of the slurry, can be used in a variety of large and small reactors, ordinary containers and vacuum containers to achieve material dispersion, emulsification, homogenization and mixing processes.
Equipped with automatic overload protection;
The design of the whole machine is reasonable and the structure is simple;
Excellent material selection, lower noise, smoother operation;

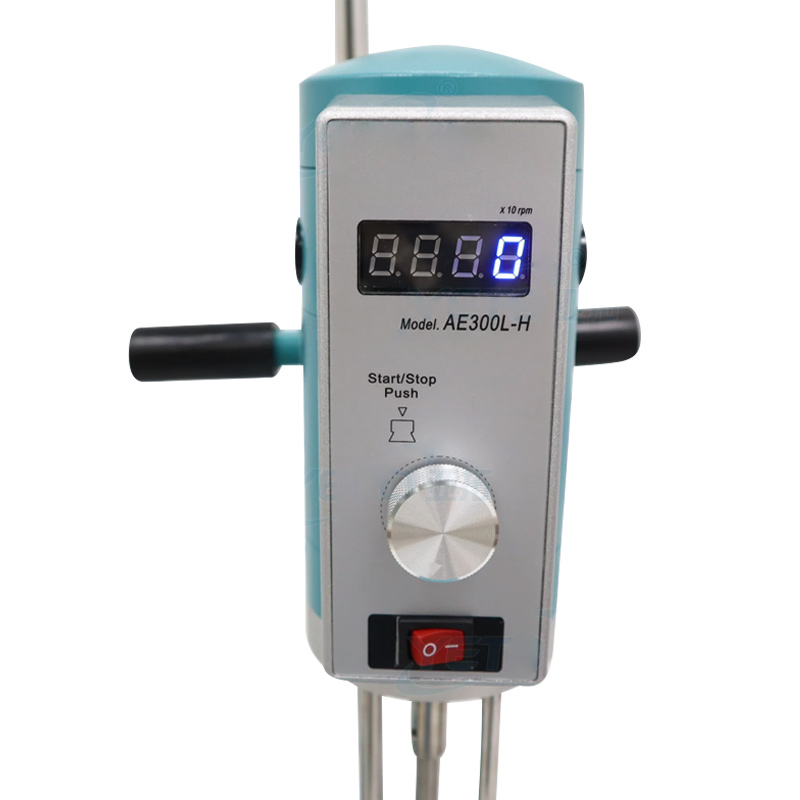

Suitable for small and medium-sized batch production, saving space; Speed digital display, easy to repeat experiments;
High quality rotary motor can realize stepless speed change under constant torque.

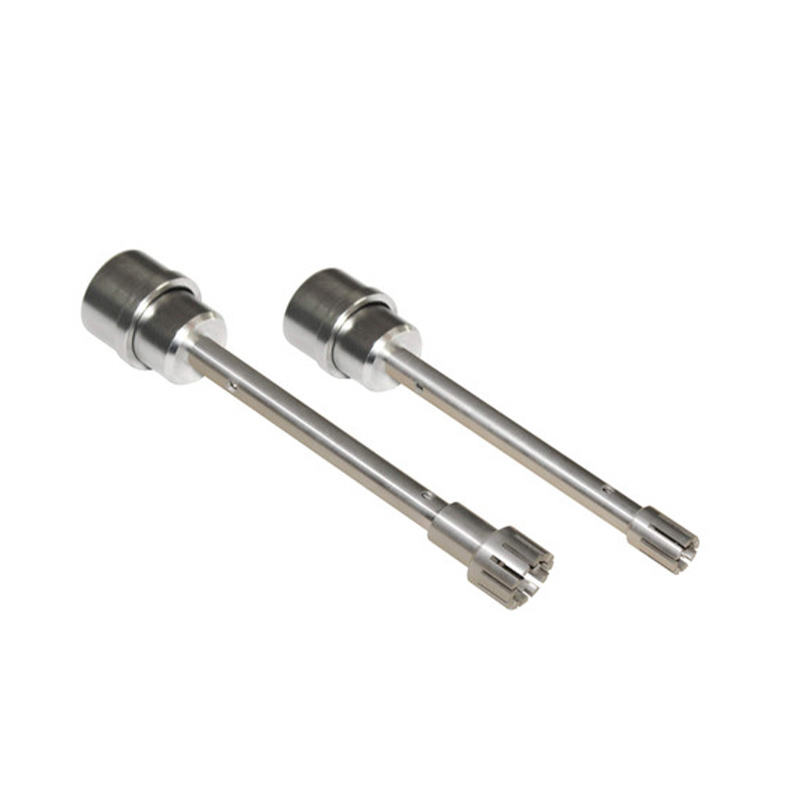

Four different hole shapes of the working head for a variety of different viscosity slurry;
If you are interested in our High shear dispersion emulsifier, please contact us for more information and a quote.
Contact number: +8615617875939
E-mail: gordon@zztainuo.com
Contact: Gordon Zhang
Wechat: 15617875939
WhatsApp: +8613592553141
Power source | Voltage single-phase AC220V±10%(AC110V can be customized), frequency 50Hz/60Hz, input power 850W, output power 500W |
Rated torque | 34.1N.cm |
Working standard | S1(continuous) |
Control mode | Combined control knob |
Speed range | 2000 ~ 14000rpm(no load) |
Timing range | 1~1000min |
Working head torque | Max.34.0N.cm |
Rotor linear speed | Max.20.5m/s |
Working head material | Stainless steel 304 |
Working head diameter | Φ70mm |
Immersion height | Min.50mm ,Max.236mm |
Stator standard configuration | 5mm²,20mm²,50mm² |
Capacity (H2O) | 500~40000mL |
Viscosity treatment | Max.8000mPa.S |
Allowable ambient temperature | 25~40℃ |
Allowable relative humidity | 30 ~ 80%RH or lower |
Equipment size | L215mm*W310mm*H720mm |
Weight | About 9.2Kg |
Requirements | Specific specifications |
Host | 1 set |
As a high-efficiency mixing, dispersing and crushing equipment, high-shear dispersing emulsifier has shown its unique value and wide application fields in many industries. The following is a detailed introduction to its application areas:
1.The food industry
In the food industry, high shear dispersion emulsifiers play a vital role. Whether it is dairy products, sauces, condiments, or juice drinks, ice cream and other products, can not be separated from the production of this equipment. It can evenly mix different food ingredients such as fats, proteins, sugars, emulsifiers, etc., to form a stable and delicate taste product. For example, when making ice cream, the high shear dispersion emulsifier can evenly mix air into the ice cream base to form a dense, delicate, smooth taste of ice cream. At the same time, in the production of fruit juice drinks, the device can ensure that the pulp particles in the juice are evenly dispersed, improving the taste and visual effect of the drink.
2. Cosmetics and personal care products
In the field of cosmetics and personal care products, high-shear dispersion emulsifiers are also indispensable. From creams, lotions, shampoos to body washes, almost all cosmetic production depends on this device. The high shear dispersion emulsifier can rapidly and evenly mix the oil phase (such as vegetable oil, mineral oil, etc.) and the water phase (such as water, glycerin, etc.) to form a stable emulsifying system. This emulsifying system not only ensures the fine texture of the product, easy to apply, but also improves the stability and shelf life of the product. In addition, in the production of makeup products, the high-shear dispersion emulsifier can also help the pigment particles to disperse evenly in the matrix, improving the color saturation and uniformity of the product.
3. Pharmaceutical industry
In the pharmaceutical industry, high shear dispersion emulsifier is widely used in the production of ointment, emulsion, suspension and other drugs. Because of the high requirements for the uniformity and stability of the ingredients of the drug, the high shear dispersion emulsifier is particularly important. It can rapidly and evenly mix the active ingredient of the drug with the carrier material to improve the solubility and bioavailability of the drug. At the same time, when preparing the suspension, the device can also ensure that the solid particles are evenly dispersed in the liquid, avoiding particle settlement and aggregation, thus ensuring the quality and efficacy of the drug.
4. Fine chemical and petrochemical industries
In the field of fine chemicals, high shear dispersion emulsifiers are used in the production of pigments, dyes, textile auxiliaries, adhesives, silicone oil emulsifiers, surfactants and other products. In the field of petrochemical industry, the equipment is suitable for the production of lubricating oil, heavy oil emulsification, diesel oil emulsification, modified emulsified asphalt and other products. In these fields, the high shear dispersion emulsifier realizes the efficient mixing and uniform dispersion of materials through its strong shear force, improving product quality and production efficiency.
5. Other areas
In addition to the above areas, High shear dispersion emulsifier is also widely used in coatings and inks (such as printing ink, latex paint, architectural coatings, nano-coatings, etc.), pesticides (such as water emulsion suspension, cream, pesticide additives, etc.), dispersion and polymerization of nano-scale materials, paper making (such as pulp, adhesives, rosin dispersions, additives, resin emulsification, etc.) and tissue dispersion in the field of biotechnology . In these areas, high-shear dispersion emulsifiers also show their strong mixing, dispersion and emulsification capabilities, providing strong support for product production and quality improvement.
In summary, the high shear dispersion emulsifier with its powerful mixing, dispersion and emulsification capabilities has shown a wide range of application prospects and important application value in many industries. With the continuous progress of science and technology and the continuous optimization of the process, it is believed that the high-shear dispersion emulsifier will play a greater role in more fields and bring more convenience and benefits to human production and life.
