high speed dispersion machine is a new type of material dispersion preparation instrument, which is rotated by high power high speed motor at high speed to break the material quickly and completely, and has the characteristics of fast dispersion compared with conventional preparation

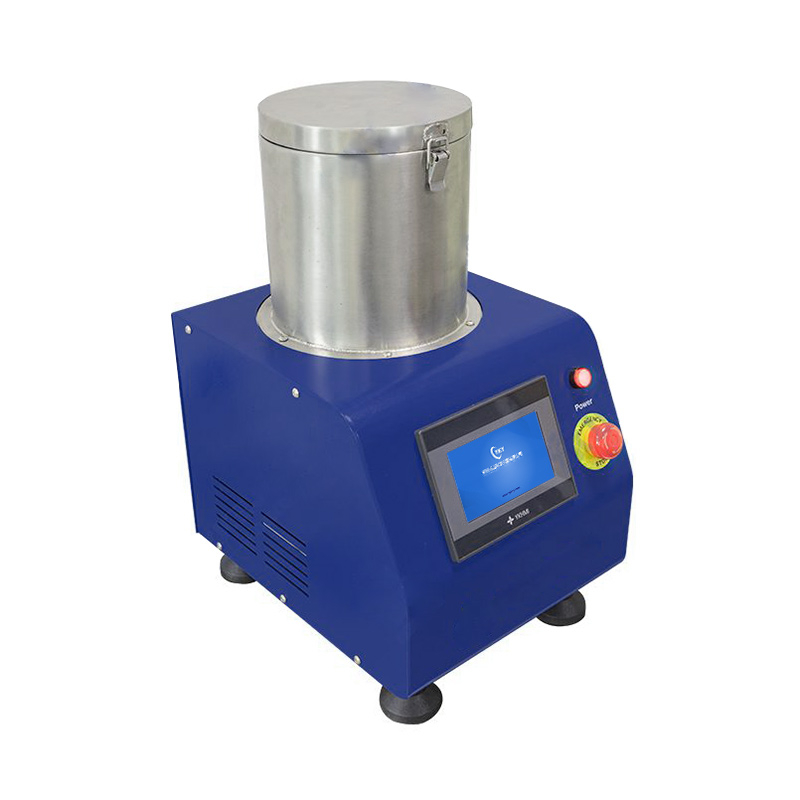

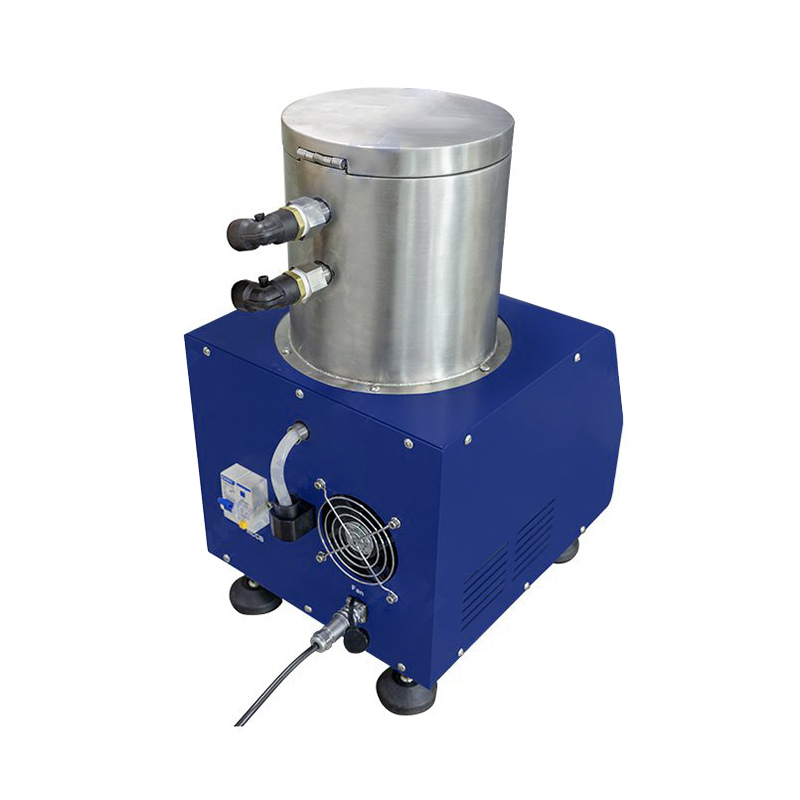

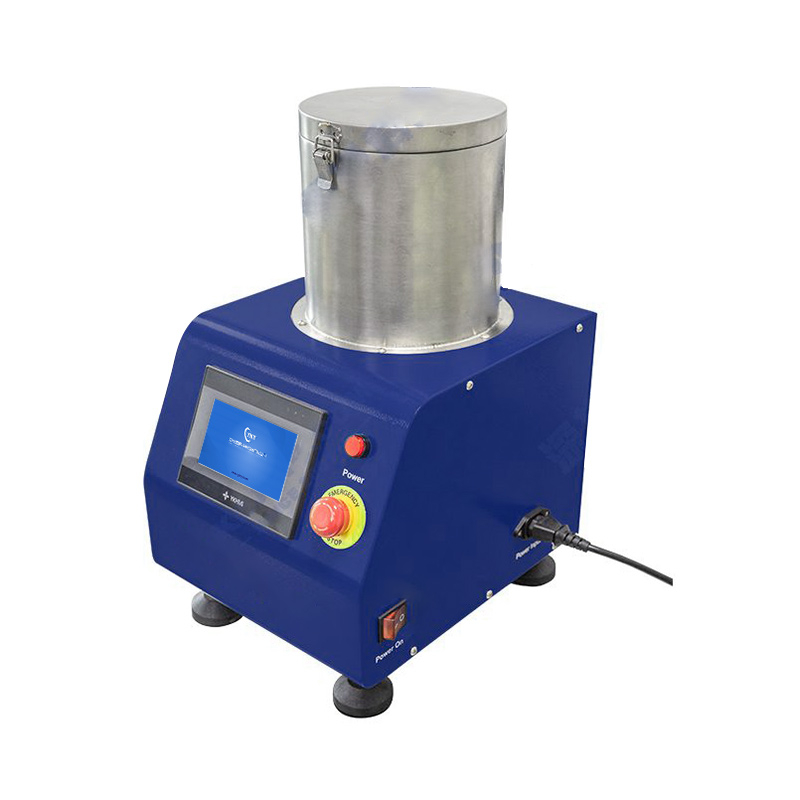

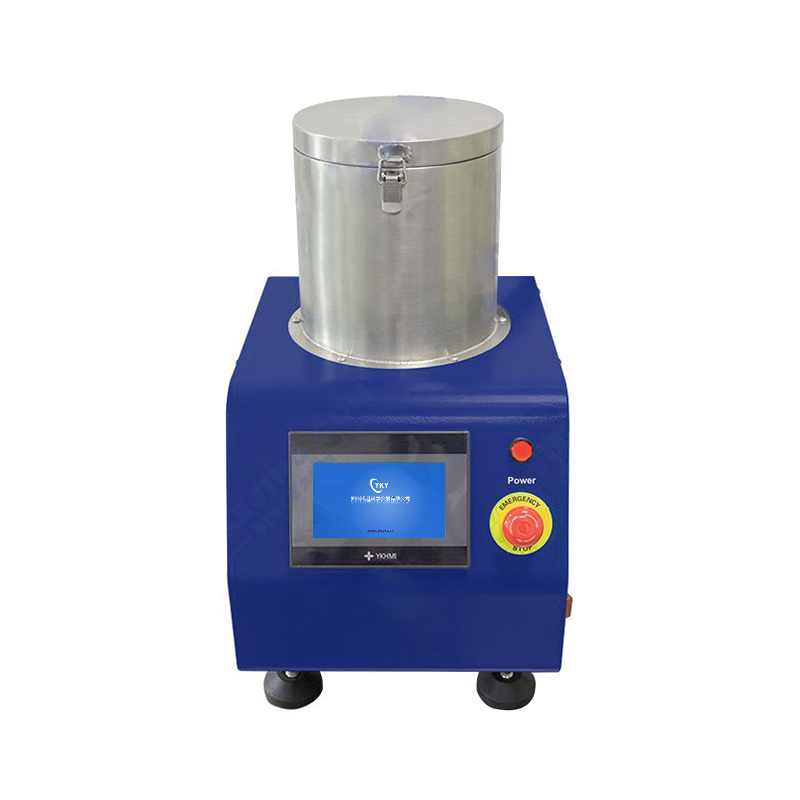

CYKY-SFM-D300 high speed dispersion machine is a new type of material dispersion preparation instrument, which is rotated by high power high speed motor at high speed to break the material quickly and completely, and has the characteristics of fast dispersion compared with conventional preparation. Special stainless steel tank can be disinfected as a whole, convenient and safe. It can be used for pulverizing and dispersing powder in medicine, pharmaceutical, cosmetics, food and microbial testing.
Multi-speed operation can be performed, and the mixing speed and time of each section can be set;
Mixing and cup body integrated design to ensure airtight without leakage;
Bearing with wear-resistant seal ring seal;
Speed and timing can be adjusted according to needs;
The micro high-power high-speed motor is used to prepare the test liquid quickly, reduce the work intensity, and the scope of application of the test product is large.
If you are interested in our High shear disperser, please contact us for more information and a quote.
Contact number: +8615617875939
E-mail: gordon@zztainuo.com
Contact: Gordon Zhang
Wechat: 15617875939
WhatsApp: +8613592553141
Power source | Voltage single-phase AC220V±10%(AC110V can be customized), frequency 50Hz/60Hz, input power 850W, output power 600W |
Use environment | Recommended ambient temperature 25±3 ° C, humidity 30-90RH, no vibration and electromagnetic interference |
Rotational speed | Max.10000rpm |
Stirring time | 1 to 30 minutes can be set |
Handling capacity | Max.150ml |
Tank temperature | Minimum 10℃ when running cold water |
Cooling water supply | 10±2℃(standard chiller ZX-LSJ-300SE) |

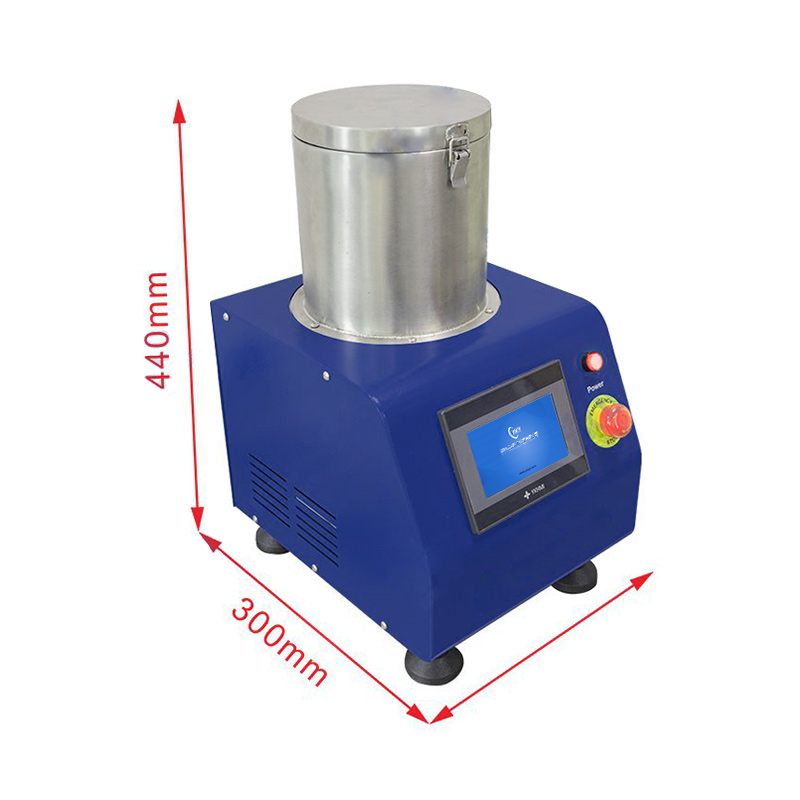

Equipment size | L300mm x W255mm x H440mm |
Weight | 15.6kg |
Requirements | Specific specifications |
Host | 1 set |
Application field:
As an efficient mixing and dispersing equipment, high speed dispersing machine plays an important role in many industries. The following are the main application areas of high speed dispersers:
1. Chemical industry
High speed dispersing machine is widely used in chemical industry, mainly used in pigment, dye, paint, ink, resin, adhesive, emulsion and other fields of material mixing, dispersion and homogenization. Through high-speed rotating blades or agitators, the high speed disperser can strongly shear, impact and stir the material, so as to achieve efficient mixing and dispersion effects. For example, in the production process of pigments, high-speed dispersing machines can evenly disperse pigment particles in solvents, improving the dispersion and stability of pigments.
2. Food industry
In the food industry, high speed dispersers are widely used in the mixing, mixing and homogenization of food raw materials such as sauces, condiments, jams, chocolates and so on. Through the processing of high-speed dispersing machine, food raw materials can be mixed together more evenly, improving the taste and quality of food. At the same time, the high speed disperser can also fine the particles in the food raw materials, making it easier to digest and absorb.
3. Pharmaceutical industry
High speed dispersers also play an important role in the pharmaceutical industry. It is mainly used for the mixing and dispersion of drugs, such as the preparation of suspension, emulsion, capsule liquid filling and so on. Through the processing of high-speed dispersing machine, the active ingredients of the drug can be more evenly dispersed in the carrier material, improving the solubility and bioavailability of the drug. This is of great significance for improving the efficacy of drugs and reducing side effects.
4. Medical device industry
In the medical device industry, high-speed dispersing machines are also used to prepare medical glue, medical paste and other products. These products have high requirements for the uniformity and stability of the material, and the high-speed dispersion machine can meet these requirements. Through the processing of high-speed dispersing machine, medical glue and paste can be mixed together more evenly, improving the quality and stability of the product.
5. Other areas
In addition to the above areas, high-speed dispersing machines are also widely used in the daily chemical industry (such as the production of cosmetics, shampoo, body wash and other products), the paper industry (such as the dispersion and homogenization of pulp), the ink printing industry (such as the dispersion and grinding of ink) and the environmental protection industry (such as the dispersion and degradation of suspended matter in wastewater treatment) and other fields. In these fields, high-speed dispersors also demonstrate their efficient and uniform mixing and dispersing capabilities.
Characteristics and advantages
High efficiency and speed: High speed dispersing machine can quickly mix and disperse materials, improve production efficiency.
Good homogeneity: the high-speed dispersing machine can evenly disperse the material to ensure the consistency of product quality.
Easy to operate: The operation of the high-speed dispersing machine is relatively simple, easy to control and adjust.
Strong adaptability: High speed dispersing machine can adapt to a variety of materials and process requirements, with strong adaptability.
In summary, high-speed dispersing machines play an important role in a number of industries, with a wide range of application prospects and market demand. With the continuous progress of science and technology and the continuous optimization of the process, I believe that the high-speed dispersion machine will show its unique value and advantages in more fields.
