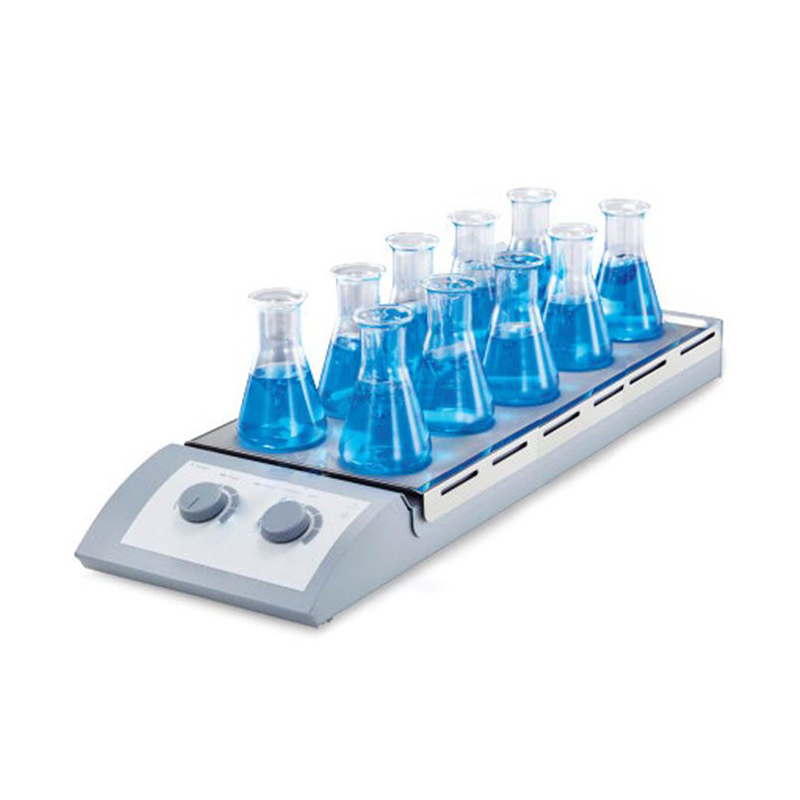

Magnetic heating agitator

Magnetic heating agitator

    Heating magnetic Stirrer suitable for low viscosity liquid or solid liquid mixing, built-in heating control board, heating pan surface temperature uniform. Multi-channel magnetic stirrer supports up to 10 stirring positions

MS-H-S10 Heating magnetic Stirrer suitable for low viscosity liquid or solid liquid mixing, built-in heating control board, heating pan surface temperature uniform. Multi-channel magnetic stirrer supports up to 10 stirring positions. Dc brushless motor, low noise, maintenance-free. Small size, light weight, convenient placement, mainly used in chemical synthesis, physical and chemical analysis, biopharmaceutical, material research and other directions.

Product characteristics:

Maximum heating temperature 120;

Efficient multi-channel magnetic stirrer, 10 mixing sites, efficient use of space;

Built-in temperature control board, heating board temperature distribution;

Motor stepless speed regulation, easy to set sensitive;

Dc brushless motor drive, effectively reduce speed noise, maintenance-free;

The stirrer runs synchronously to provide the sample with absolutely the same reaction conditions;

Polished aluminum pan.

Purchase information:

If you are interested in our Heating magnetic Stirrer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Power supply

Single-phase AC110V-220V±10%, frequency 50Hz/60Hz, power about 490W

Motor input power

12W

Motor output power

4W

Heating output power

470W

Working environment requirement

Temperature: +5 ~ +40, relative humidity 80%

Disk size

L450*W180mm

Disk material

Polished aluminum pan

Stirring station

10

Motor type

Dc brushless

Maximum mixer

0.4L*10

Speed range

0-1100rpm

Maximum mixer size

Length 40mm

Stirring speed display

Scale display

Overtemperature protection temperature

+140

Temperature control range

RT+120

Stirring temperature display

Scale display

IP protection level

IP21

Equipment size

L622mm*W182mm*H65mm

Weight

About 3.2Kg

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

The application areas of heated magnetic stirrers are very wide, according to the search results, the following are some of the main application areas:

1. Chemical laboratory: Used for mixing solution, suspension, and heating acid, alkali, salt and other chemical reagents to improve reaction efficiency and product purity.

2. Petrochemical industry: In the refining of petroleum products and the production of chemical raw materials, it is used to heat and stir reactants to improve product yield and enterprise economic benefits.

3. Food industry : Used for the extraction, emulsification, mixing and other processes of food ingredients to ensure the consistency of food quality and taste.

4. Pharmaceutical industry: In the process of drug production, it is used to mix and heat pharmaceutical raw materials, solutions and reactants to improve the quality and stability of drugs.

5. Material science: Used for the preparation of nanomaterials, organic chemical synthesis, etc., to provide stable temperature and uniform mixing to ensure the accuracy of the experiment.

6.Biological science: It is often used in the operation and control process of cell breakage, the production of enzyme preparations and the crushing and dispersing of solid material particles.

7.Scientific research education: As an indispensable experimental tool in the laboratory, it is used in the research process of various chemical reactions, biological experiments and material preparation.

8.Environmental testing: In environmental monitoring, used for sample pretreatment steps, such as extraction, concentration, dissolution, etc.

9.Paint and ink production: used for temperature control and uniform mixing in the mixing process.

10.Cosmetics industry: used in the process of mixing flavors and pigments to ensure product quality.

11.Food and beverage industry: Used in the mixing and heating process of food and beverage to ensure the quality of food and beverage.

Because of its efficient, accurate and reliable performance, the heating magnetic stirrer plays an important role in the above fields, providing a strong guarantee for industrial production and scientific research.
