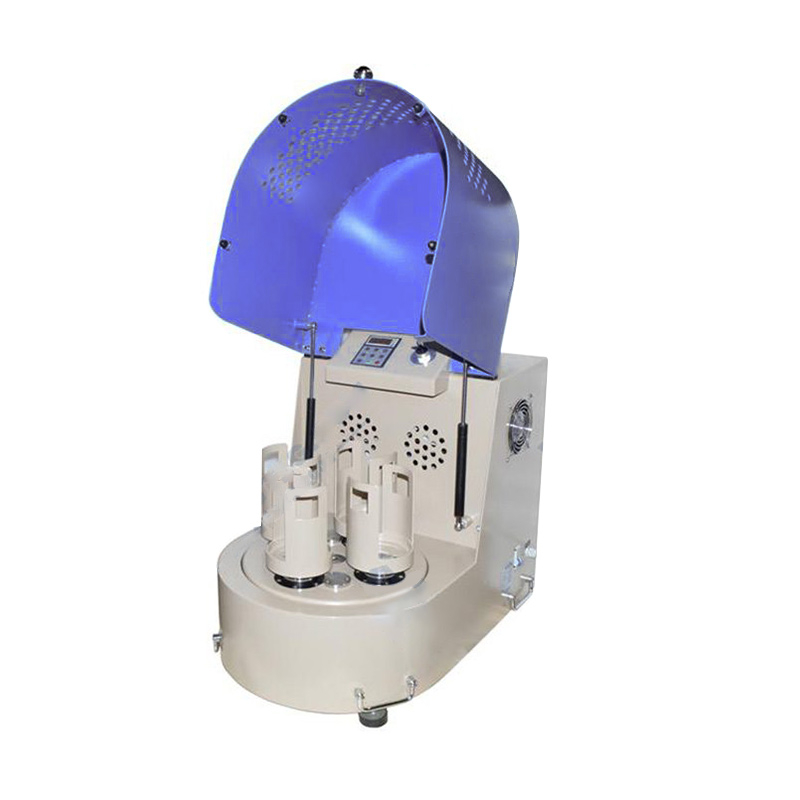

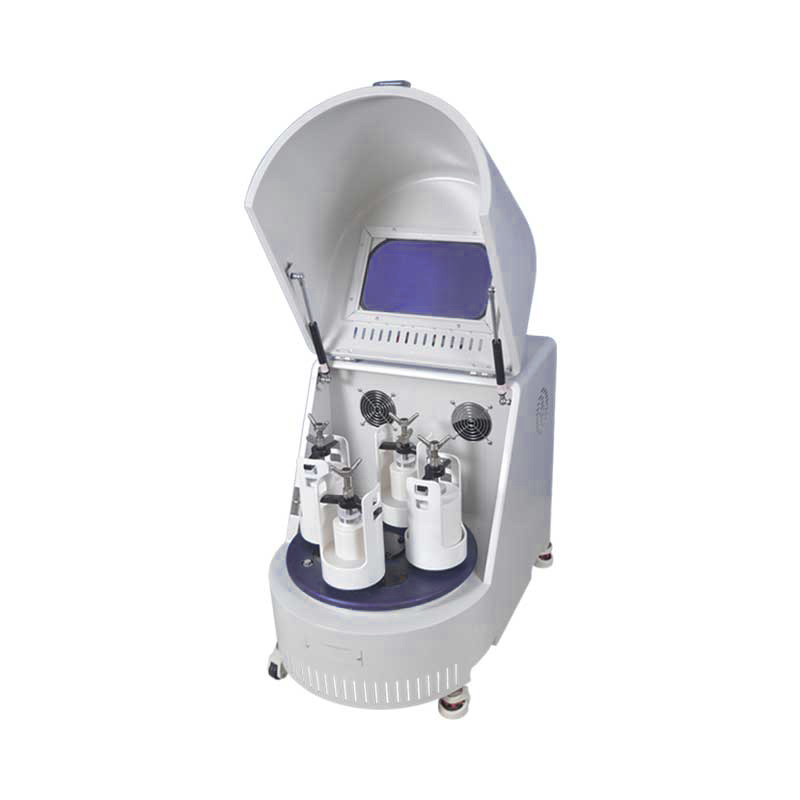

Planetary ball mill with Vacuum ball mill

    planetary ball mill is the ideal equipment for enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time per experiment), and the vacuum ball mill can be used to grind samples in vacuum

The CYKY-SFM-1 planetary ball mill is the ideal equipment for enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time per experiment), and the vacuum ball mill can be used to grind samples in vacuum. Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical, light industry, medicine, beauty, environmental protection and other departments. Speed, forward and reverse rotation time, and total grinding time can be set according to process requirements.

Product characteristics:

The ball grinding tank adopts the planetary movement, the ball grinding efficiency is high, the particle size is fine;

Gear drive overcomes the original belt drive easy to slip speed instability, that is, to maintain the stability of gear drive, but also overcome the original belt drive easy to slip, speed instability shortcomings;

The product is dry, wet two methods of grinding and mixing different particle size, different materials of the product, the minimum particle size of the grinding product can be 0.1 micron;

Small size, full function, high efficiency, low noise, planetary ball mill is the ideal equipment for scientific research units, colleges and universities, enterprise laboratories to obtain research samples (each experiment can obtain four samples at the same time);

The optional vacuum ball grinding tank can be used to grind the sample under vacuum condition.

Users can according to their own grinding needs, input speed, forward, reverse, grinding time and other parameters;

The equipment is equipped with a safety switch, which can prevent the equipment from starting when the safety cover is opened, so as to avoid safety accidents.

Purchase information:

If you are interested in our Planetary ball mill, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Main parameter

Maximum speed: revolution (big plate) :290 RPM ± 10%, rotation (ball mill tank) 580 RPM ± 10%

Rated voltage: AC 220V Rated power: 300W Maximum power: 500W

Speed regulation mode: PID no static difference speed regulation,   no pole speed regulation.

Transmission mode: belt drive

Main feature

SFM series planetary ball mill is a necessary device for mixing,   fine grinding, sample preparation, new product development and small batch   production of high-tech materials.

The product is small in size, full in function, high in   efficiency and low in noise. It is the ideal equipment for scientific   research units, universities and enterprise laboratories to obtain research   samples (four samples can be obtained at the same time in each experiment).   With vacuum mixing tank, the sample can be ground in vacuum.

Digital display



Digital display is speed in RPM/Hz

The timer controls the running time of the host: from 0.1 to 100   hours

Timer control tank from clockwise to counterclockwise rotation   time: 0.1-50 hours

Number of operation cycles: 0-100

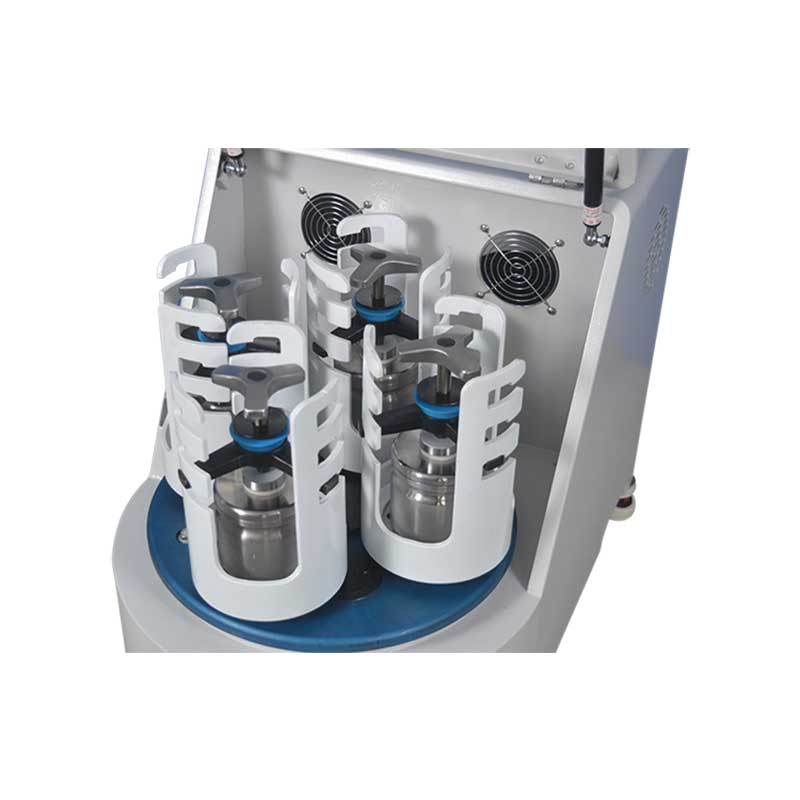

Ball mill tank/ball mill

There are various types of ball grinding tank to choose from:   (equipment is not standard ball grinding tank)

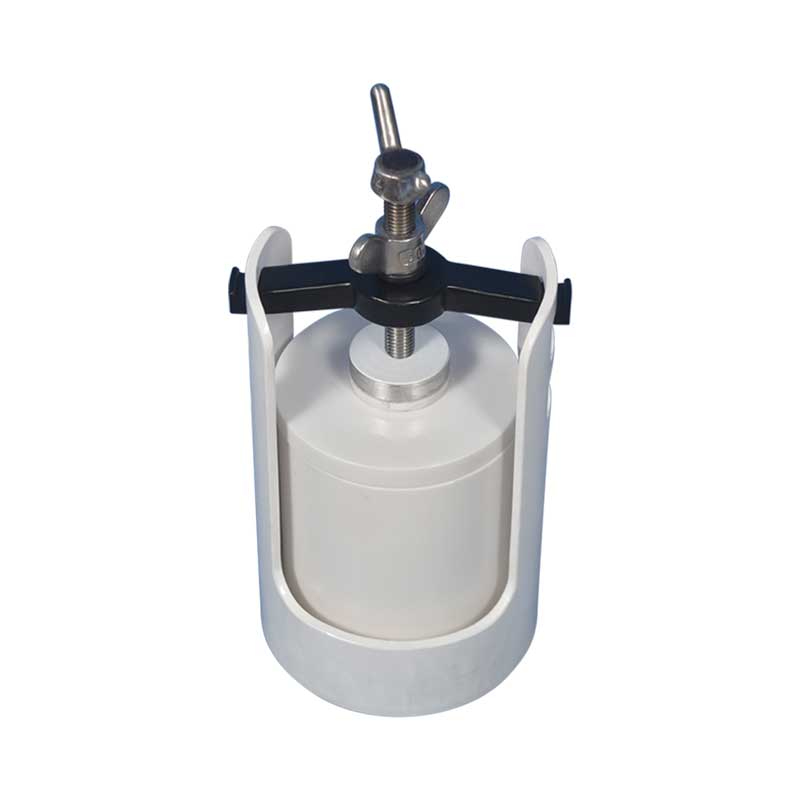

Stainless steel vacuum mixing tank :250ml 500ml

Stainless steel tank :250ml 500ml

Agate mixing tank :100ml 250ml 500ml

Corundum jar :250ml 500ml

Teflon tank: 250ml 500ml

Agate tank notes: Agate tank is made of natural mineral materials   rather than artificial synthesis, which is a non-renewable resource. Due to   the origin of minerals, the texture of minerals themselves, the reduction of   mineral resources and many other reasons, our company's agate tank promises   to be normal use but cannot guarantee the appearance of all agate products,   please mind customers carefully purchase.

Four containers can hold a maximum size of jars of 107mm O.D x   112mm H

Grinding ball specifications: Φ6, Φ10, Φ12, Φ15, Φ20

Sample screen

A molecular sieve with a mesh diameter of 1.12mm was used to   separate the sample

For effective earth grinding, feed particles should be less than   1.12mm

Dimension

450×700×550mm

Net weight

130 Kg

Related product applications and   precautions

SS304 stainless steel mixing tank is suitable for grinding all   kinds of metal materials

Abrasive oxide material, please select alumina/nylon tank and   zirconia media. Do not use stainless steel balls in alumina cans.

When using the planetary ball mill, 4 or 2 grinding tanks of the   same weight should be used symmetrically. If only one ball mill tank is used,   a tank of the same weight should be matched in a symmetrical position.   Otherwise, the eccentric force will cause damage to the machine.

If you need a forced air cooling tank to process some easily   malleable materials, you can use a portable air cooling regulator, which will   keep the tank temperature below 30°C

Authentication

CE certification (standard module   unchanged)

Warranty period

One year warranty, lifetime technical   support.

Click to view the after-sales service   commitment.

Main components:

Requirements

Specific specifications

Host

1 set

 Application field:

The application field of planetary ball mill is very wide, covering a number of industries and scientific research fields. The following are the main application areas:

Materials Science:

It is used for grinding cemented carbide, ceramics, glass, metal, plastic and other materials.

It has important applications in the preparation of nanomaterials, the synthesis of metal powders, and the ultra-fine processing of materials.

It can be used for the preparation of electronic ceramics, structural ceramics, magnetic materials, catalysts and other functional materials.

Geology and Minerals:

Provides fine grinding and mixing in geological samples, ore analysis, soil sample preparation and heavy metal analysis.

It is suitable for geological research and mineral exploration.

Agriculture and animal husbandry:

Used for soil sample processing and agricultural product quality analysis.

Contributes to agricultural research and environmental monitoring.

New energy field:

Used for the preparation of battery materials such as lithium cobaltate and lithium manganate.

Suitable for fuel cell, zinc oxide varistor and other new energy products raw material grinding.

Pharmaceutical industry:

It plays a role in the ultrafine grinding of pharmaceutical raw materials and the preparation of catalysts.

It can be used for drug preparation, dissolution, dispersion, mixing and other fields to improve drug bioavailability and reduce drug side effects.

Environmental protection:

Suitable for the preparation of environmental protection materials and waste treatment.

It has important applications in the grinding of materials needed in the treatment of waste water and exhaust gas.

Chemical & Light Industry:

It is widely used in the mixing and fine grinding of chemical raw materials, the preparation of dyes and coatings.

It is often used in synthetic chemical reaction, preparation of polymer materials and other fields, which can realize the dispersion of material molecules and the change of morphology.

Electronics and Information Technology:

Used for the preparation of electronic ceramics, MLCC (multi-layer ceramic capacitors), thermistor and other electronic components materials.

It is widely used in chip manufacturing and other fields.

Nanotechnology:

It can grind out materials with particle size up to the nanometer level, supporting the development and production of nanomaterials.

Research and Education:

As a tool for research and development of new materials and preparation of laboratory samples, it is widely used in the scientific research work of major universities and institutes.

In addition, the planetary ball mill is also widely used in beauty, metallurgy, building materials, food and other fields. Its efficient crushing, grinding, mixing and dispersing functions, as well as the characteristics of dry grinding, wet grinding, vacuum grinding and other working modes, make it an indispensable equipment in many fields.
