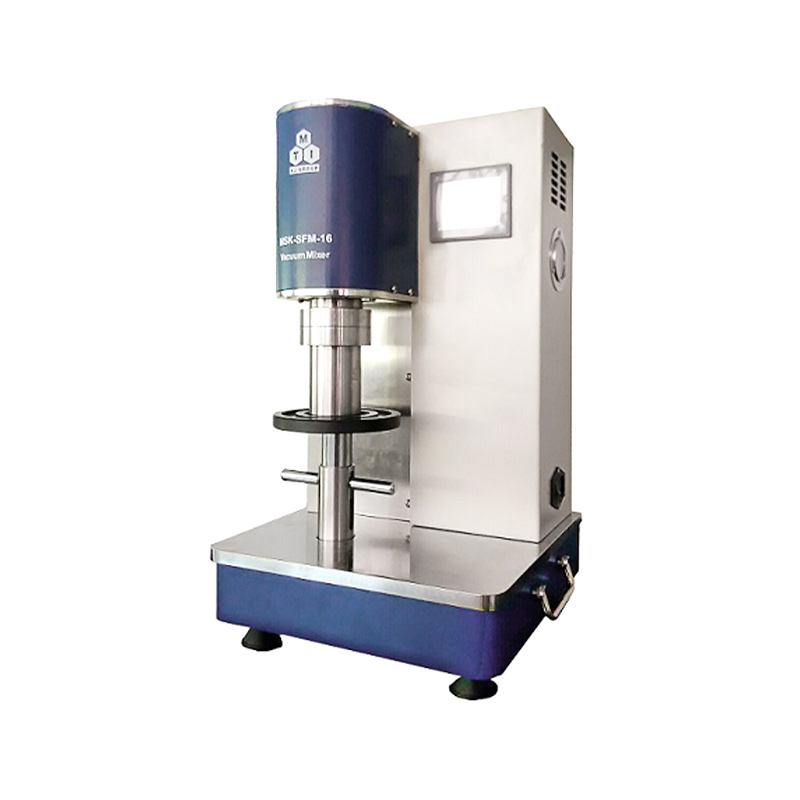

Planetary vacuum mixer machine

    planetary vacuum mixer, can be used in a variety of solvent and powder mixing process, such as lithium ion battery, tape, solar energy, chemical and other raw material mixing process. The equipment is beautiful in appearance

CYKY-SFM-16 planetary vacuum mixer, can be used in a variety of solvent and powder mixing process, such as lithium ion battery, tape, solar energy, chemical and other raw material mixing process. The equipment is beautiful in appearance, small in size, easy to use, and is an ideal choice for laboratory slurry preparation.

Product characteristics:

Different mixing tanks are equipped with belt type or blade type mixing paddle, and different mixing shaft forms and combinations are configured according to the size of the mixing tank;

The design of positive and negative stirring function can realize high speed stirring of high viscosity slurry and good mixing uniformity;

Vacuum environment, effectively eliminate the bubbles produced by the stirring process, the machine comes with vacuum system;

Multi-speed operation can be performed, and the mixing speed and time of each section can be set;

The volume of the mixing tank is 50ml, 150ml and 500ml respectively.

Bracket design, easy to operate, to ensure the safety of vacuum mixing process.

Purchase information:

If you are interested in our Planetary vacuum mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Electric source

Single-phase AC110-220V±10%, frequency 50/60Hz, power 280W

Use environment

Recommended ambient temperature 25±3 ° C, humidity 30-90RH, no vibration and electromagnetic   interference

Rotational speed

Max.600rpm

Vacuum

Built-in vacuum pump, vacuum degree above   or equal to -70Kpa

Stirring time

0-600min can be set

Multistage function

Three speed can be set

Applicable viscosity

At the speed of 600r/min Max.10000mpa.s,   higher viscosity can reduce the speed

Agitator tank

Stirring tank volume 50ml -- effective   volume Max.30ml

Mixing tank volume 150ml -- effective   volume Max.120ml

Mixing tank volume 500ml -- effective   volume Max.400ml

Agitator paddle

The 50ml tank is equipped with   single-axis blade impeller as standard, the 150ml tank is equipped with   double-axis blade impeller as standard, and the 500ml tank is equipped with   double-axis planetary belt impeller as standard

Equipment size

L330*W320*H570mm

Weight

About 35kg

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

Planetary vacuum mixer is a kind of high efficiency stirring equipment, which has been widely used in many fields. Here are some of the main application areas:

1.  Chemical industry  : Used for the preparation of polymer materials, such as polyolefin, polyurethane, nanomaterials, etc., and the preparation of amorphous materials.

2.  Pharmaceutical industry  : It is widely used in the mixed reaction of medical polymer materials and natural drugs to make special medical materials, and in the production of preparations and preparation of drugs.

3.  Food industry  : Used in the fermentation process of lactic acid bacteria, yeast, fungi and other microorganisms mixing, reaction, growth, etc., also used in dairy products, egg products, meat products, fat food production.

4.  Electronic industry  : It is widely used in electronic materials, electronic components, batteries, photoelectric materials and other industries, especially in the preparation of electronic materials, for the mixing of electronic powders.

5.  Metallurgical industry  : It is widely used in the powder metallurgy process of tungsten and molybdenum alloy, cobalt alloy, aluminum and magnesium alloy, etc., in the preparation of metal materials through the trajectory of relative motion and collision with each other, so that the powder is mixed evenly.

6.  New energy field  : Materials for the preparation of solar panels, lithium-ion batteries and other products, the performance of these products largely depends on the uniformity and stability of the material.

7.  Cosmetics industry  : Used for emulsion preparation, etc.

8.  Electronic components  : Used for light-emitting diode (LED), liquid crystal screen (LCD), electronic components and other products in the material mixing and defoaming process.

9.  Medical devices  : Used for the preparation of medical devices and biological materials, which need to have a high degree of purity and stability to ensure the safety and effectiveness of medical products.

10.  Battery paste  : Suitable for all kinds of battery paste, paste (such as lithium battery, nickel-chromium battery, nickel-metal hydride battery, fuel cell, power battery, button battery, etc.) mixing.

To sum up, the planetary vacuum mixer plays an important role in many industries such as chemical industry, medicine industry, food industry, electronics industry and new energy industry because of its efficient and uniform mixing effect and the ability to operate in a vacuum environment.
