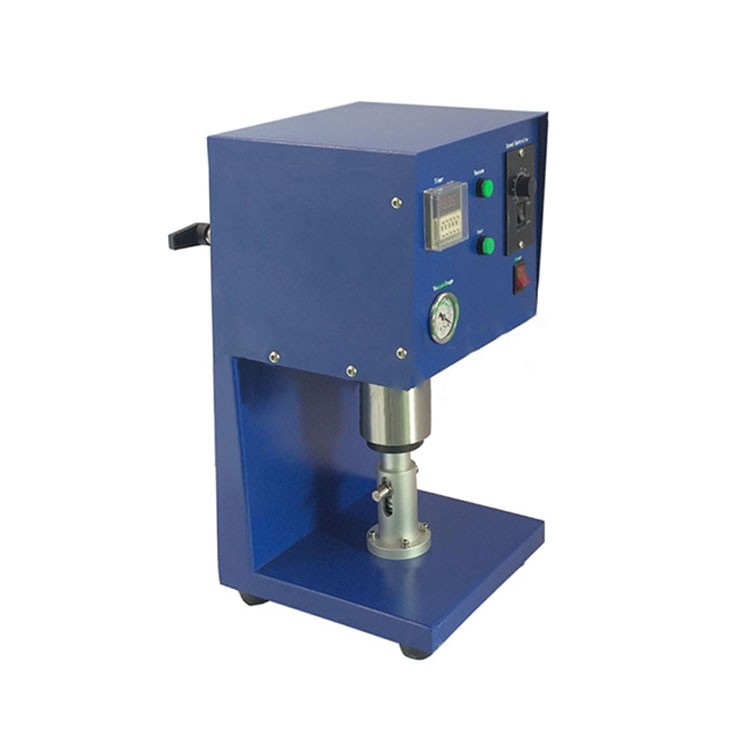

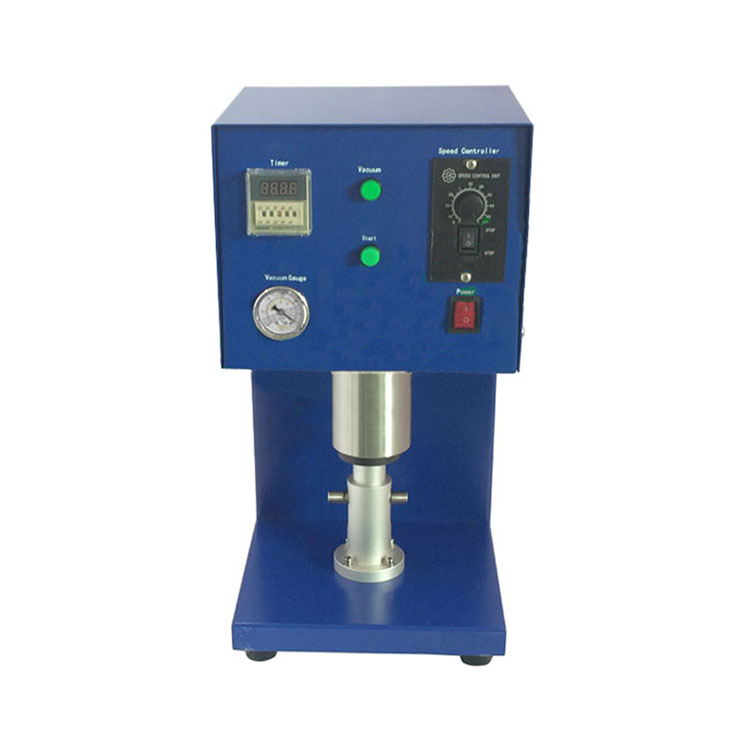

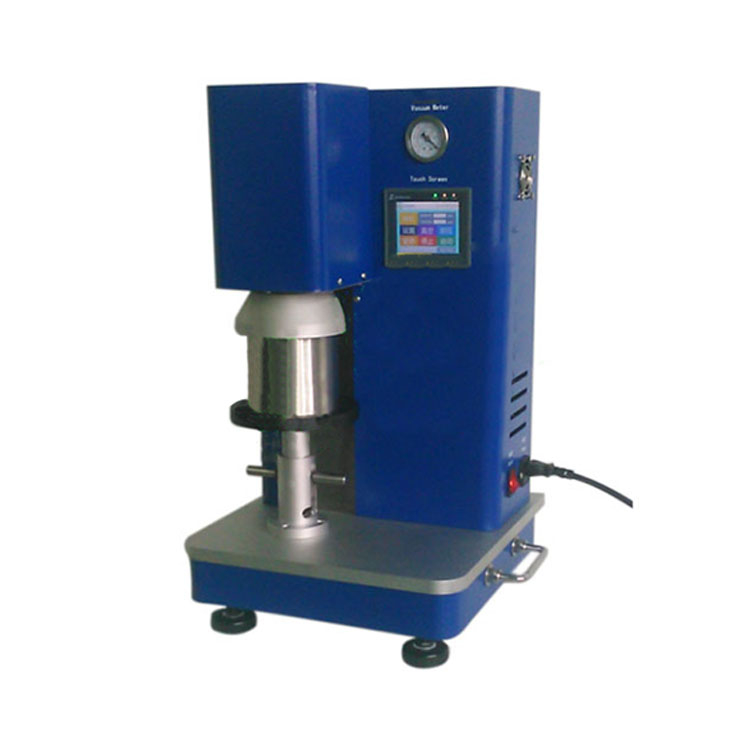

Small planetary vacuum Battery slurry mixer

Product name

Small planetary vacuum mixer

Product number

CY-XJB

Features

1. Design of forward and reverse stirring function, can realize high speed stirring of higher viscosity slurry, good stirring uniformity;

2. Vacuum environment, effectively eliminate the air bubbles generated during the stirring process, the machine comes with a vacuum system;

3. Multi-speed operation can be performed, and the stirring speed and time of each step can be set;

4. The equipment is equipped with a dual-shaft planetary stirring structure and a screw-type stirring paddle as standard. Different types and combinations of   mixing shafts are configured according to the size of the mixing tank;

5. Bracket design, easy to operate and ensure the safety of the vacuum stirring process;

6. Exquisite appearance, using three-dimensional geometric design, simple and beautiful;

7. Small dimensions can save space;

Parameters

1. Stirring speed: Max 600 rpm;

2. Standard equipped with twin-screw screw paddles, others are designed   according to the tank body;

3. Multi-stage function: three-stage speed can be set;

4. Built-in vacuum pump, vacuum degree -0.08Mpa

5. Accessory volume: 500ml stainless steel vacuum mixing tank;

6. Stirring time: 0 ~ 600min can be set

7. Power supply voltage: AC220V

8. Rated power: 200W

9. Dimensions: about 330m × 320mm × 570mm (length × width × height);

10. Weight: about 35kg.
