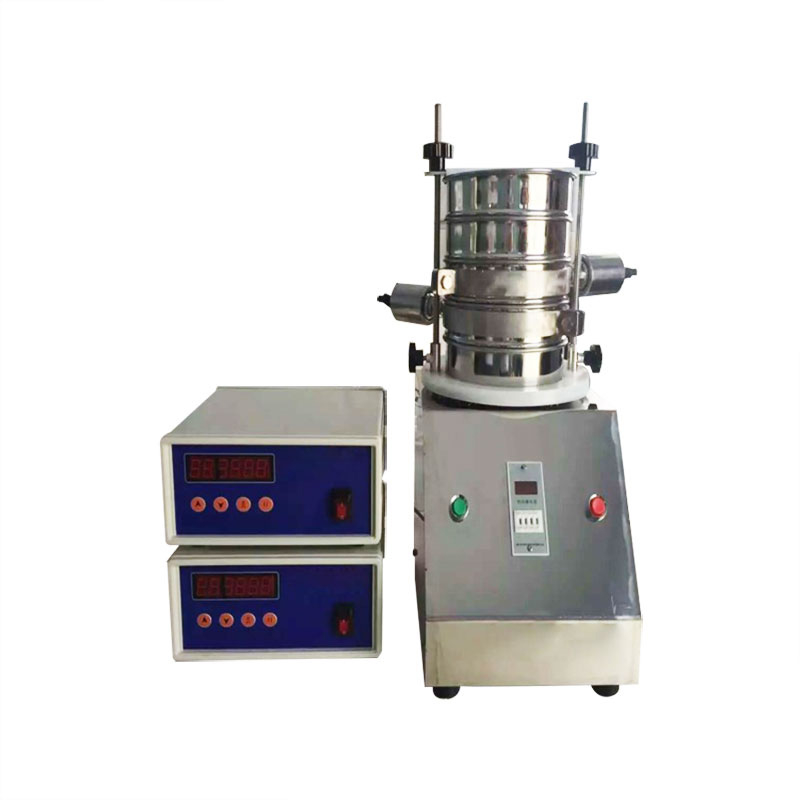

Small ultrasonic screening system

ultrasonic inspection screening system is a simple, practical and reliable screening system, which is the most effective solution to the current mesh blockage. It can be widely used in pharmaceutical,

Inquire Now Next Product

CYKY-SYU-3 ultrasonic inspection screening system is a simple, practical and reliable screening system, which is the most effective solution to the current mesh blockage. It can be widely used in pharmaceutical, metallurgy, chemical, mineral processing, food and other industries requiring fine screening and filtration, with high screening and filtration accuracy, and effectively solve the screening problems due to agglomeration, static electricity, strong adsorption stuck mesh.

Product characteristics:

● Ultrasonic vibrating screen power supply: 38KHZ high-frequency high-power ultrasonic power supply, built-in microcomputer chip, according to the different states of the material for the whole digital frequency automatic tracking, no manual adjustment

● Working mode: continuous, pulse

Purchase information:

If you are interested in our Small ultrasonic screening system, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Main parameter	● Working frequency: 38KHz ● Maximum loading: 1kg ● Machine current: ≤0.6A ● Motor speed: 1400RPM ● Power supply: AC220V±10% 50Hz
Structure	● Design is divided into two parts: ● The three-layer screen is connected with the vibration belt and the converter through a high-frequency cable ● There is an ultrasonic generator at the bottom
Mesh	Three mesh screens: 100, 200 and 450
Dimension	● Screening system: 360×300×740 (mm) ● Ultrasonic vibrating screen power supply: 350×300×200 (mm) ● Screen: I.D. 200mm× 50H (mm) Note: Includes three screens of 100,200 and 450 mesh
Certification	CE certification
Warranty period	One year warranty, lifetime technical support. Special note: 1. Consumables such as heating elements, quartz tubes, sample crucible, etc. are not included. 2. Damage caused by the use of corrosive gases and acid gases is not covered by the warranty. Click to view the after-sales service commitment.
Precautions for use	● When the grid is not loaded, do not turn on the power supply of the ultrasonic vibrating screen. Otherwise, it is easy to cause power overcurrent and damage to the grid and transducer ● If the material conducts electricity, please use the extended ultrasonic HF connection cable to isolate the ultrasonic vibrating screen power supply from the screening site to prevent the material from entering the power box and causing short circuit. ● It is recommended to use 504 glue, screen glue as much as possible, the tension of the mesh surface should be uniform (if necessary, the tension meter can be used to monitor the tension of the mesh surface).

Main components:

Requirements	Specific specifications
Host	1 set

Application field:

Ultrasonic inspection screening system (ultrasonic vibrating screen) combines ultrasonic technology with traditional vibrating screen, and has a wide range of applications in many industries. The following are the main application areas:

1. Food industry

Food additive screening: such as fine screening of various food additives to ensure product quality.

Grain products screening: such as flour, starch and other grain products screening, remove impurities, improve product quality.

Food powder seasoning screening: such as coffee powder, spices and other food powder seasoning screening, to ensure the seasoning uniformity and fineness.

Juice and vegetable juice filtration: Filter through ultrasonic vibrating screen to remove impurities and improve the purity of juice and vegetable juice.

2. Pharmaceutical industry

Chinese medicine powder screening: the Chinese medicine powder screening, remove impurities, improve the uniformity and stability of Chinese medicine preparation.

Drug particle screening and liquid filtration: Drug particles are screened and unwanted liquids are filtered out to ensure the purity and quality of the drug.

Classification and purification of pharmaceutical raw materials: classification and purification of pharmaceutical raw materials through ultrasonic vibrating screen to improve the utilization of raw materials and product quality.

3. Chemical industry

Chemical raw materials screening: such as synthetic resin, rubber and other chemical raw materials screening, remove impurities, improve the purity and utilization of raw materials.

Screening and filtration of pigments and dyes: screening and filtration of pigments and dyes to ensure the color and uniformity of the product.

Screening of chemical catalysts: sifting chemical catalysts through ultrasonic vibrating screens to improve the activity and utilization of catalysts.

4. Metal material industry

Screening of powder metallurgy products: Screening of powder metallurgy products to remove impurities and improve product quality and performance.

Rare metal powder screening: Screening of rare metal powder to ensure the purity and size distribution of the powder.

Casting sand screening and filtration: through the ultrasonic vibrating screen for casting sand screening and filtration, improve the quality and utilization of casting sand.

5. Ceramic industry

Screening of ceramic raw materials: screening of ceramic raw materials to remove impurities and improve the quality and stability of ceramic products.

Glaze screening: The glaze is screened to ensure the uniformity and fineness of the glaze.

Filtration of ceramic body: The ceramic body is filtered through the ultrasonic vibrating screen to remove excess water and impurities.

6. Mining and building materials

Screening and grading of mineral powder: screening and grading of mineral powder to improve the quality and utilization of mineral powder.

Screening of cement: The cement is screened to remove impurities and improve the purity and quality of cement.

Filter of building materials: Filter building materials through ultrasonic vibrating screen to remove impurities and unwanted particles.

7. Environmental protection

Solid recovery in wastewater treatment: through the ultrasonic vibrating screen to recover the solids in wastewater, improve the utilization of resources.

Classification and screening of waste: classification and screening of waste to achieve the reuse of resources and reduce environmental pollution.

Resource utilization of solid waste: solid waste is screened and purified through ultrasonic vibrating screen to achieve the reuse of resources.

8. Other industries

Screening of paint and coatings industry: Screening of paint and coatings to remove impurities and particles and improve product quality and purity.

Rubber industry packing screening: the rubber industry packing screening to ensure the uniformity and quality of the packing.

Sizing in the textile industry: Sizing in the textile industry to remove impurities and particles, improve the quality and stability of the sizing.

In short, the ultrasonic inspection screening system plays an important role in many industries with its unique screening advantages and a wide range of application fields. With the continuous progress of technology and the deepening of application, its application field will be further expanded.
