acupuncture extrusion machine

     Acupuncture extrusion machine is a device that can be used in the extrusion test and acupuncture test process of lithium ion batteries. The hydraulic cylinder is selected as the driving element of the equipment,

 Acupuncture extrusion machine is a device that can be used in the extrusion test and acupuncture test process of lithium ion batteries. The hydraulic cylinder is selected as the driving element of the equipment, and the special fixture is configured to fix the battery and the working head, which can realize the test of various cylinders, aluminum shells, soft bags and large power cells and battery packs. The equipment design data collection function, the experimental data can be continuously collected and stored. Thoughtful safety design, double-layer sheet metal structure, explosion-proof observation window, back design explosion-proof opening, exhaust gas discharge reservation, can be local and remote control.

Product Model: CY-TE905-UL

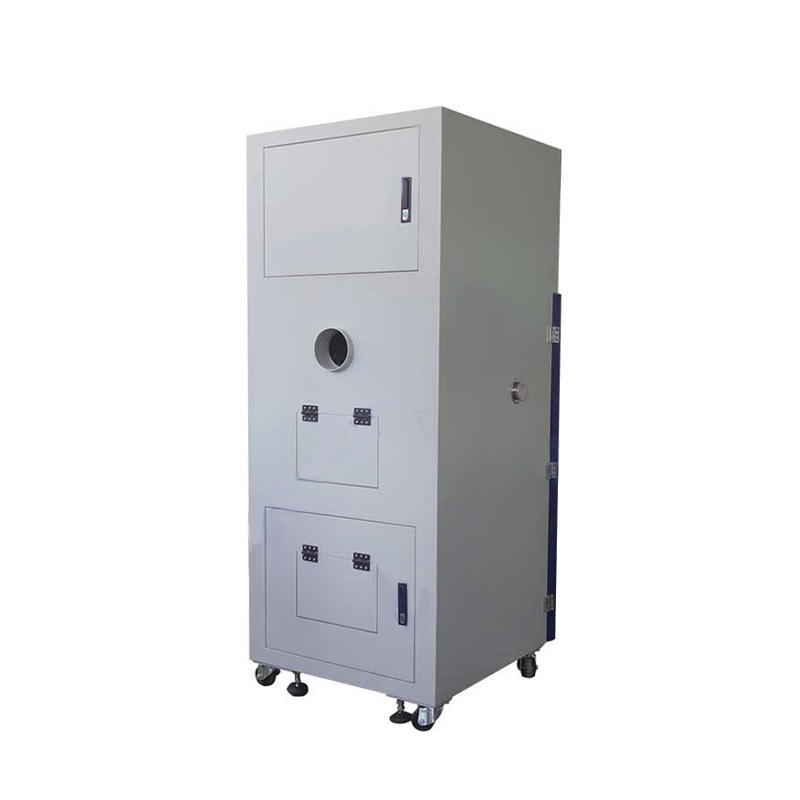

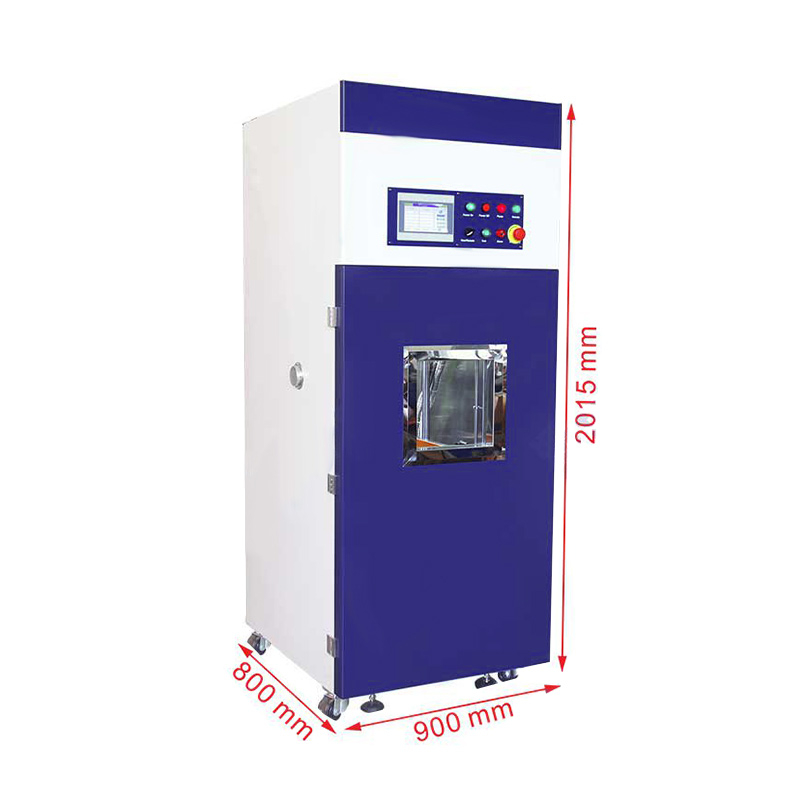

Installation size: W800*D900*H2015mm

Weight: About 450Kg

Version number: V2.1

CY-TE905-UL Needle Extrusion machine is a machine that can be used in lithium ion battery extrusion test and needle test process. The hydraulic cylinder is selected as the driving element of the equipment, and the special fixture is configured to fix the battery and the working head, which can realize the test of various cylinders, aluminum shells, soft bags and large power cells and battery packs. The equipment design data collection function, the experimental data can be continuously collected and stored. Thoughtful safety design, double-layer sheet metal structure, explosion-proof observation window, back design explosion-proof opening, exhaust gas discharge reservation, can be local and remote control.

Functional characteristics

applicable to GB31241-2014, UN38.3 battery test standard, can be used for battery, battery pack extrusion or needle test;

extrusion function and acupuncture function dual mode can be freely switched, change the working head can be easily realized;

According to the standard extrusion function, it can realize arbitrary setting of pressure, deformation and voltage, and automatically set and store test results;

Acupuncture function can set the acupuncture depth and holding time within the stroke range;

battery fixture design is convenient and easy to use, can be cylindrical, square, soft pack battery clamping and testing;

Design the test chamber lighting, explosion-proof outlet device, forced exhaust, test and recharging outlet according to the requirements of use;

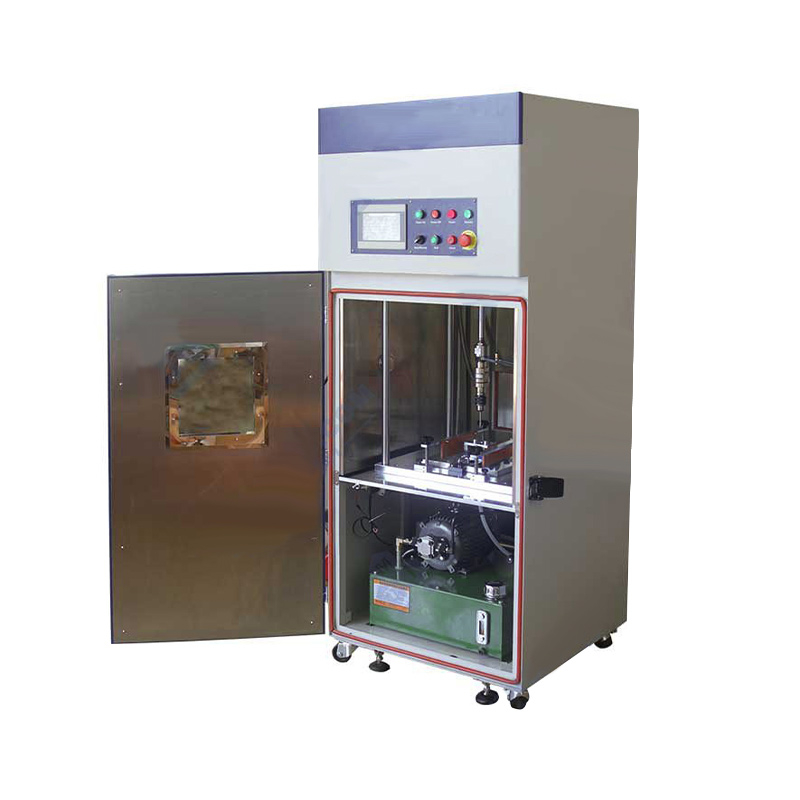

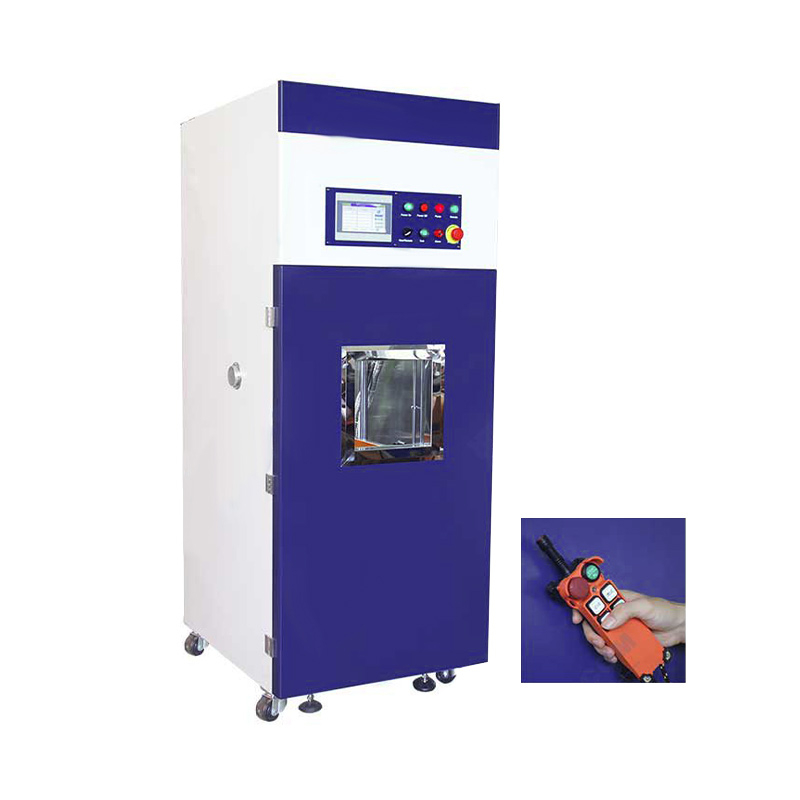

Optional infrared camera monitoring, fire extinguisher, exhaust gas filtration, video surveillance function (video surveillance function requires customers to provide PoE power supply standard IEEE802.3af/at switch) and other function modules;

The selection of high-quality electrical components, the equipment is stable and reliable, with local and remote operation switching function

Parameter

Power source

Voltage three-phase 380VAC±10%(customized 220VAC), frequency 50Hz/60Hz, power 2.5KW

Use environment

The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH(%), and there is no vibration or   electromagnetic interference

Driving mode

Hydraulic cylinder drive, cylinder   diameter Φ40mm, stroke 350mm, effective needling/extrusion stroke 330mm,   integrated fuel supply station

Extrusion pressure

Max.15KN, according to the standard test pressure   is 13KN, the accuracy is better than ±1%

Platen size

Standard diameter Φ150mm, can be customized according to requirements

Needling time

Hold the needle in place, 0~9999s can be   set

Needle size

Φ2, Φ3, Φ4, Φ5, Φ6, Φ7, Φ8, can be customized according to requirements

Battery clamp

Standard cylindrical type 1 set (diameter   Max.Φ32, Min.Φ14), standard   square 1 set (Max.300*300mm)

Needling speed

1~90mm/s

Data storage

USB storage of test data

Alarm function

Oil pump overload, door protection, excessive   pressure, abnormal test and so on

Observation window

L382*W332mm, explosion-proof laminated   glass

Work space

L600mm*W600mm*H400mm(maximum operating   chamber space)

Equipment size

W800mm*D900mm*H2015mm

weight

About 450Kg
