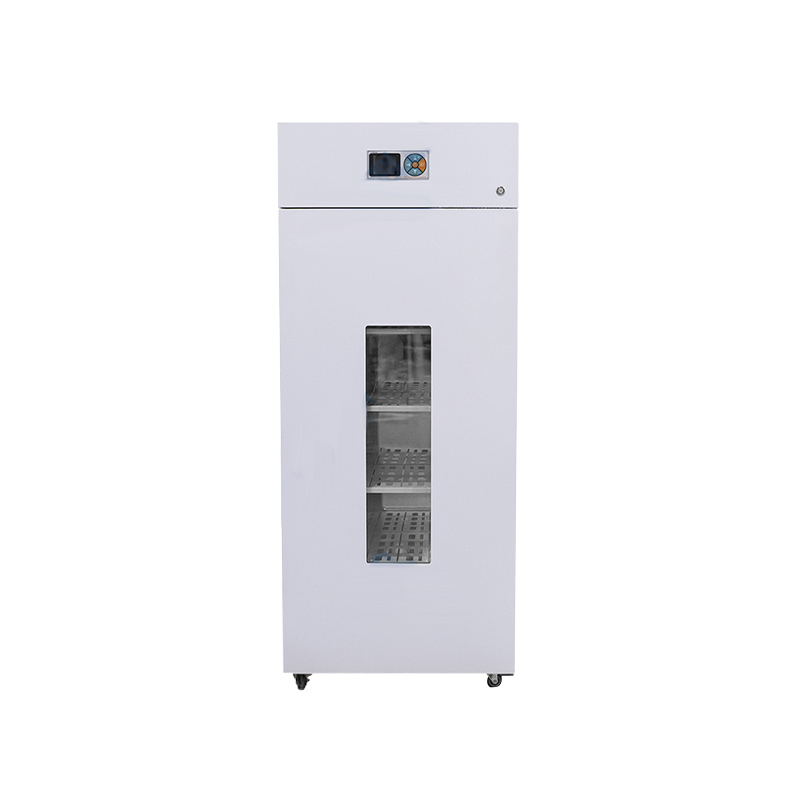

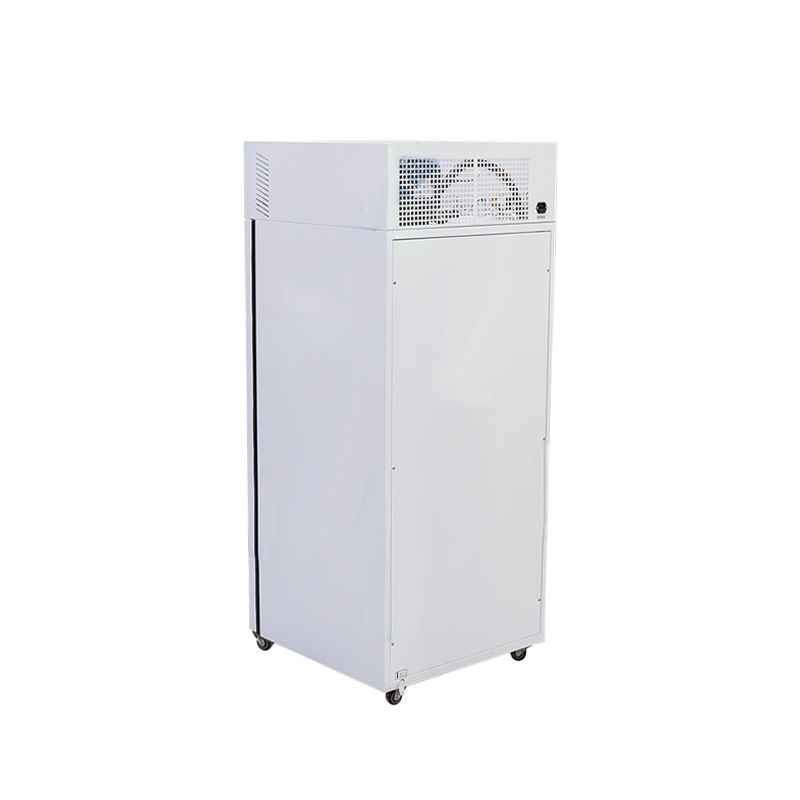

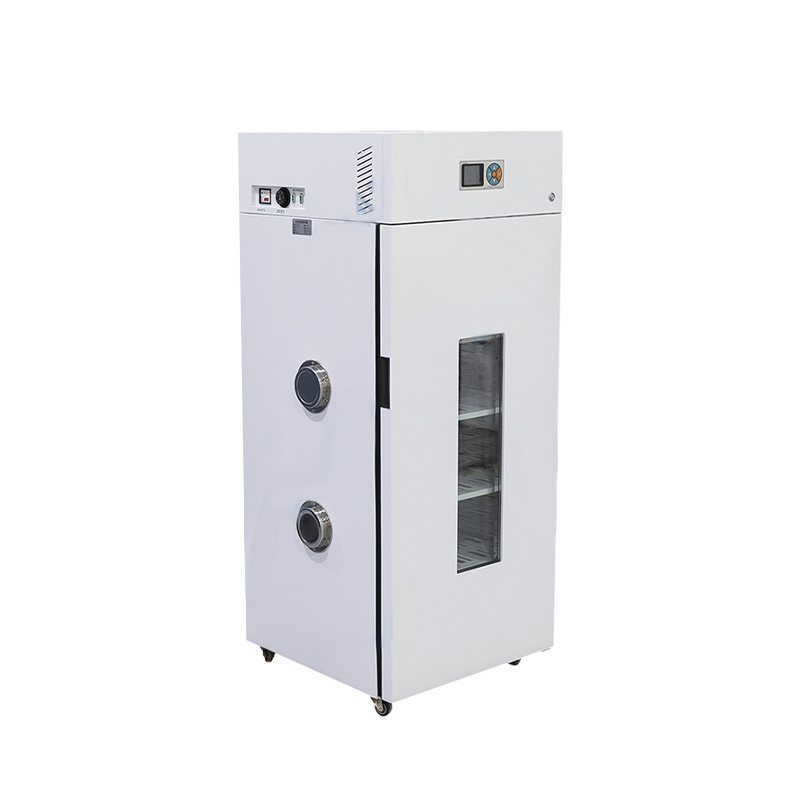

battery constant temperature test box

    Battery high temperature test box is specially used for lithium battery products such as blue electric test system with special structure test box.

Battery high temperature test box is specially used for lithium battery products such as blue electric test system with special structure test box. Features such as customized battery carrier and multiple temperature protection. Can be a long period of uninterrupted, multi-temperature point, balanced frost-free control.

Product model: CY-TE906-LBI-300HT

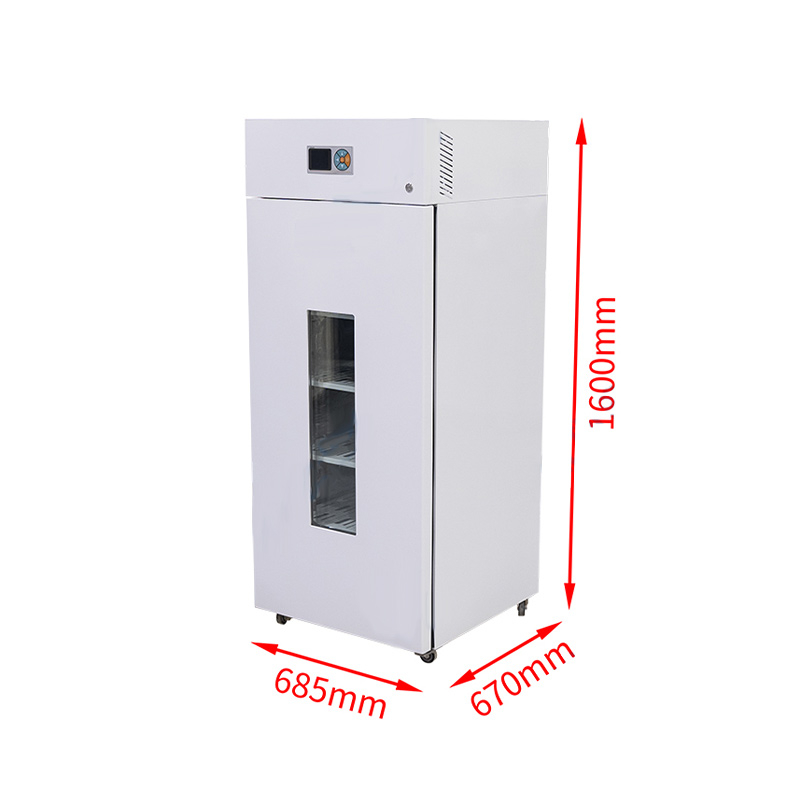

Dimensions: about 685*670*1600mm

Net weight/gross weight (kg) : about 115/ about 157KG

The battery high temperature test box is specially designed for lithium battery products such as blue electric test system with special structure test box. Features such as customized battery carrier and multiple temperature protection. Can be a long period of uninterrupted, multi-temperature point, balanced frost-free control.

 Functional characteristics

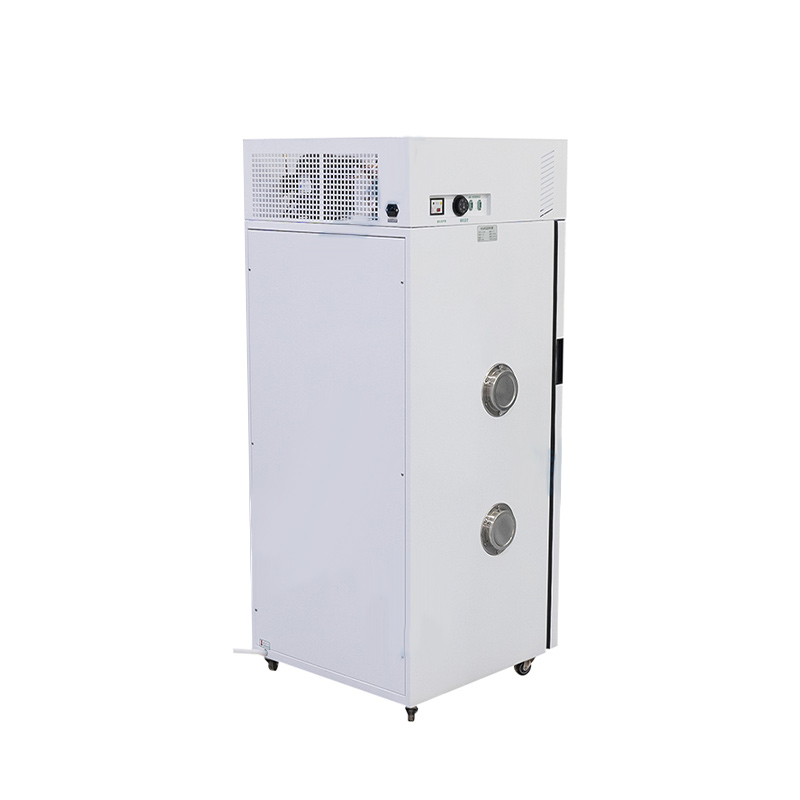

The test box is equipped with a threaded test hole;

test box is used to clamp the separator of the battery, combined with the characteristics of the battery, using special technology manufacturing;

The box and studio are designed with arc structure;

The studio is made of mirror stainless steel plate, the shelf can be adjusted height and free assembly, easy to clean the working room;

The work room is equipped with lighting;

A fan is installed in the work room to form forced convection;

outer box surface spray treatment, the whole machine appearance is beautiful and reasonable, easy to use and maintenance;

The door of the test box is double-door design, and the inner door is tempered glass, which can directly observe the culture in the working room. The outer door is sealed by magnetic door, which has good sealing property.

fitted with leakage protector;

is equipped with auxiliary temperature controller to ensure that the product can work normally (for heating) even when the main temperature control is out of control;

with hot and cold automatic control function;

Temperature control using the latest microcomputer intelligent control system, LCD LCD screen display temperature, high precision, no overshoot;

RS485 communication interface, used to connect to the computer, with the computer display, print temperature and time data, to provide a strong guarantee for the test process data storage and playback.

Parameter

Electric source

Single-phase AC220V±10%V frequency 50Hz, power about 1.2KW

Nominal volume (L)

300

Temperature control range ()

10 ~ 50

Temperature resolution

0.1

Temperature fluctuation ()

Plus or minus 1

Temperature uniformity (° C)

Plus or minus 2

Timing range

1~9999min

refrigerant

R134a

Working hours

continuous

Studio size

W520*D480*H1170mm

Overall dimension

W685*D670*H1600mm

Box size

W820*D850*H1880mm

Net/gross weight

About 115/ about 157kg

Number of partitions (blocks)

Standard 4, up to 18
