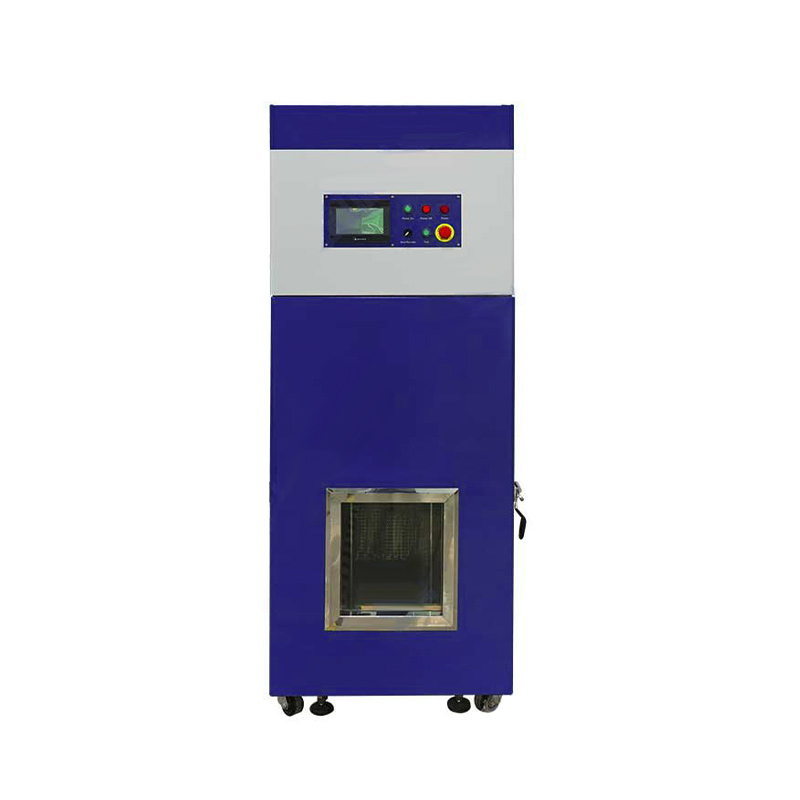

battery directional drop testing machine

    battery directional drop tester is a device that can be applied to the safety test of lithium-ion batteries and battery packs, which can realize the simulation test of the safety performance of the battery in accordance with a certain attitude at a high height. The design is designed to fall freely in a pre-set direction at a height of up to 1.5m, falling on the concrete floor or other required ground.

    Product model: CY-TE908

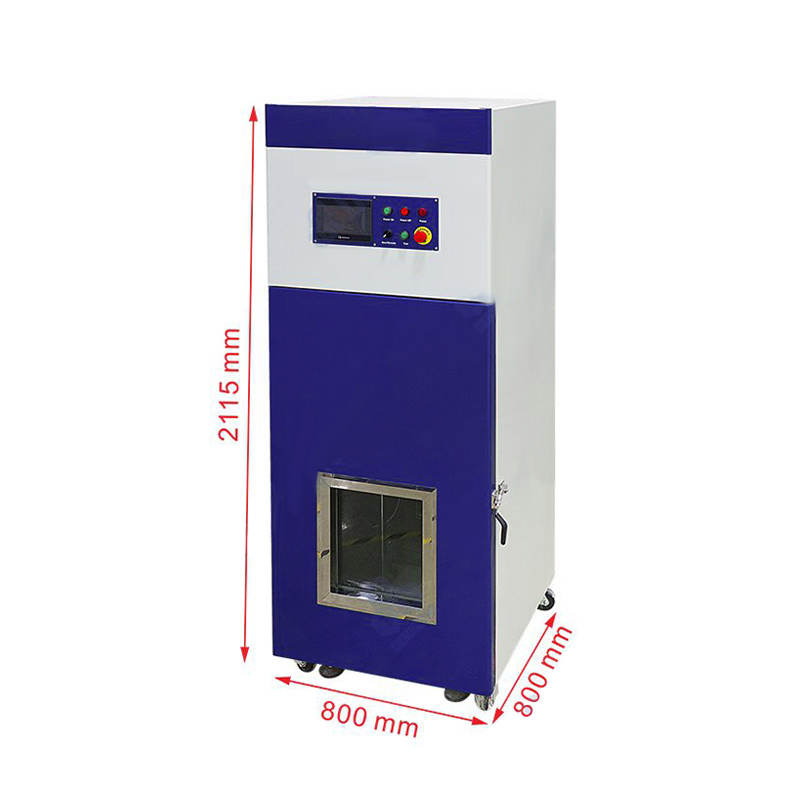

    Installation dimensions: W800mm*D800mm*H2115mm

    Weight: About 350Kg

    CY-TE908 battery directional drop tester is a device that can be applied to the safety test of lithium-ion batteries and battery packs, which can realize the simulation test of the safety performance of the battery in accordance with a certain attitude at a high height. The design is designed to fall freely in a pre-set direction at a height of up to 1.5m, falling on the concrete floor or other required ground.

    Functional characteristics:

    applicable standards GB31241-2014, IEC62133, GB/T31485-2015, GB/T741-2014, etc.

    The battery is fixed by mechanical clamping and vacuum adsorption to achieve directional free drop without dead Angle;

    compatible with the height indicators required in various test standards, drop height can be freely set in HMI;

    electric hook, to ensure safety, if need a long time maintenance operation design mechanical safety lock;

    worm gear and worm reducer motor drive lifting weight block, motor power down self-locking;

    Test box double explosion-proof reinforced sheet metal, explosion-proof pressure relief port design, explosion-proof laminated glass observation window, built-in lighting;

    Selection of high-quality electrical components to ensure the reliability of work, with local and remote control operation switch function

    Parameter

    Electric source

    Voltage single-phase 220VAC±10%(customized 110VAC), frequency 50Hz/60Hz, power 1KW

    Use environment

    The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH(%), and there is no vibration or   electromagnetic interference

    True empty source

    Vacuum degree Max. -99Kpa

    Test item

    Directional drop test, including surface   fall, Angle fall, edge fall, etc

    Test object

    Buttons, cylindrical, flexible packaging,   square lithium batteries and various lithium battery packs

    Applicable standard

    GB31241-2014,IEC62133,GB/T31485-2015,GB/T741-2014,   etc

    Drop height

    Max. 1500mm, can be set freely

    Suitable sample

    Buttons, cylindrical, flexible packaging,   square and various inclusions

    Sample fixation

    Max. 200*200mm fixed surface, mechanical   clamping and vacuum adsorption two ways

    Sample weight

    Mechanical clamping Max. 10Kg, vacuum   adsorption Max. 5Kg

    Observation window

    L382*W332mm, explosion-proof laminated   glass

    Auxiliary function

    Explosion-proof pressure relief port,   built-in lighting, optional fire extinguisher, video surveillance function   (video surveillance function requires the customer to provide PoE power   supply standard IEEE802.3af/at switch)

    Work space

    L300mm*W250mm*H1500mm

    Mounting dimension

    W800mm*D800mm*H2115mm

    weight

    About 350Kg
