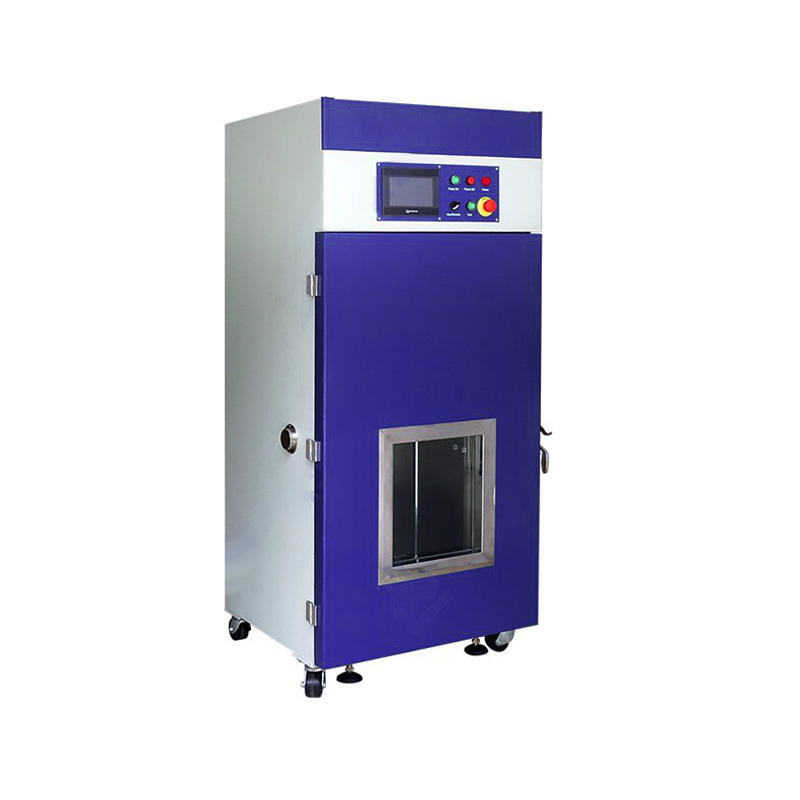

battery heavy impact testing machine

     battery heavy impact tester is a device that can be applied to the safety test of lithium-ion batteries and battery packs, which can simulate the safety performance of batteries when they are impacted by heavy objects.

 battery heavy impact tester is a device that can be applied to the safety test of lithium-ion batteries and battery packs, which can simulate the safety performance of batteries when they are impacted by heavy objects. A weight of 10Kg or 9.1Kg is designed to fall freely at a distance of 1m or 610mm and strike a metal rod with a diameter of 15.8mm (5/8 inch), which presses down vertically on the battery sample under test.

Product model: CY-TE902

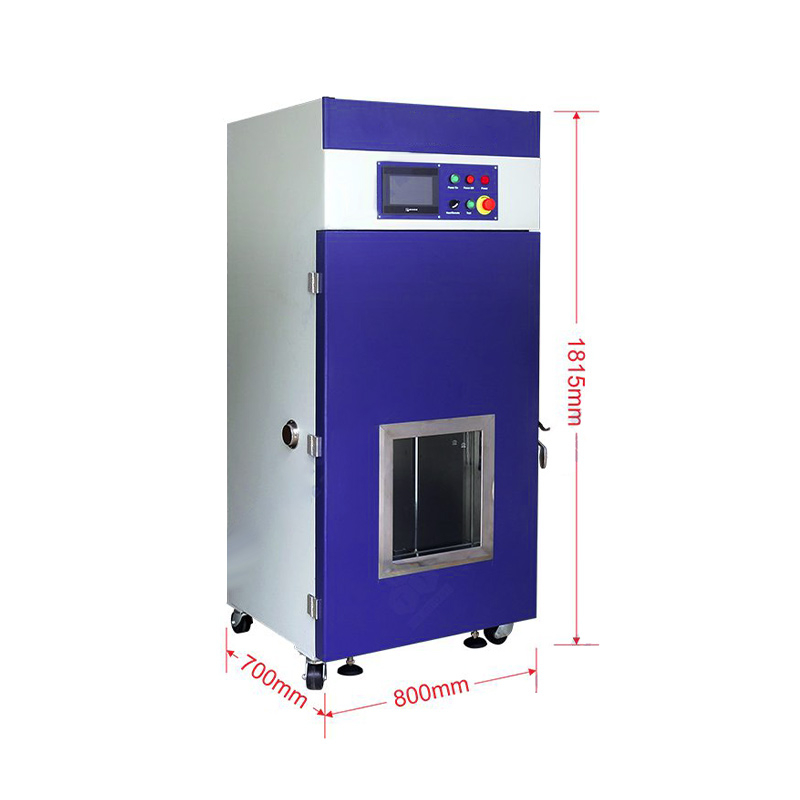

Installation size: W800mm*D700mm*H1815mm

Weight: About 300Kg

Version number: v2.0

CY-TE902 battery heavy impact tester is a device that can be applied to the safety test of lithium-ion batteries and battery packs, which can simulate the safety performance of batteries when they are impacted by heavy objects. A weight of 10Kg or 9.1Kg is designed to fall freely at a distance of 1m or 610mm and strike a metal rod with a diameter of 15.8mm (5/8 inch), which presses down vertically on the battery sample under test

Feature:

applicable standards GB31241-2014, UN38.3, GB/T18287-2000, etc.

Automated testing according to a variety of test standards selected on the HMI;

Compatible with two kinds of heavy objects and a variety of height test standards, the weight is used to adjust the weight weight, the height can be freely set;

electric hook, to ensure safety, if need a long time maintenance operation design mechanical safety lock;

worm gear and worm reducer motor drive lifting weight block, motor power down self-locking;

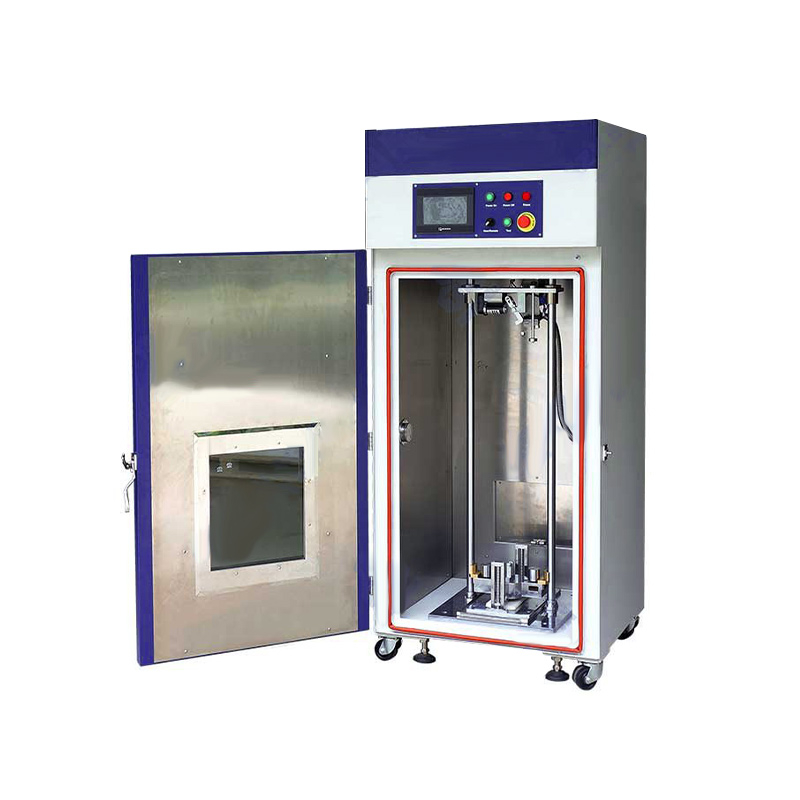

Test box double explosion-proof reinforced sheet metal, explosion-proof pressure relief port design, explosion-proof laminated glass observation window, built-in lighting;

with a limit latch to prevent heavy blocks from falling and ensure the safety of operators;

Selection of high-quality electrical components to ensure the reliability of work, with local and remote control operation switch function

Feature:

Electric source

Voltage single-phase 220VAC±10%(customized 110VAC), frequency 50Hz/60Hz, power 1KW

Use environment

The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH(%), and there is no vibration or   electromagnetic interference

Test item

Heavy impact test

Test object

Buttons, cylindrical, flexible packaging,   square lithium batteries and various lithium battery packs

Applicable standard

GB31241-2014, UN38.3, GB/T18287-2000, etc

Weight mass

10Kg or 9.1Kg, can increase or decrease   the weight adjustment

Impact height

Max. 1000mm, can be set freely

Observation window

L382*W332mm, explosion-proof laminated   glass

Auxiliary function

Explosion-proof pressure relief port,   built-in lighting, optional fire extinguisher, video surveillance function   (video surveillance function requires the customer to provide PoE power   supply standard IEEE802.3af/at switch)

Work space

L300mm*W250mm*H1000mm

Mounting dimension

W800mm*D700mm*H1815mm

weight

About 300Kg
