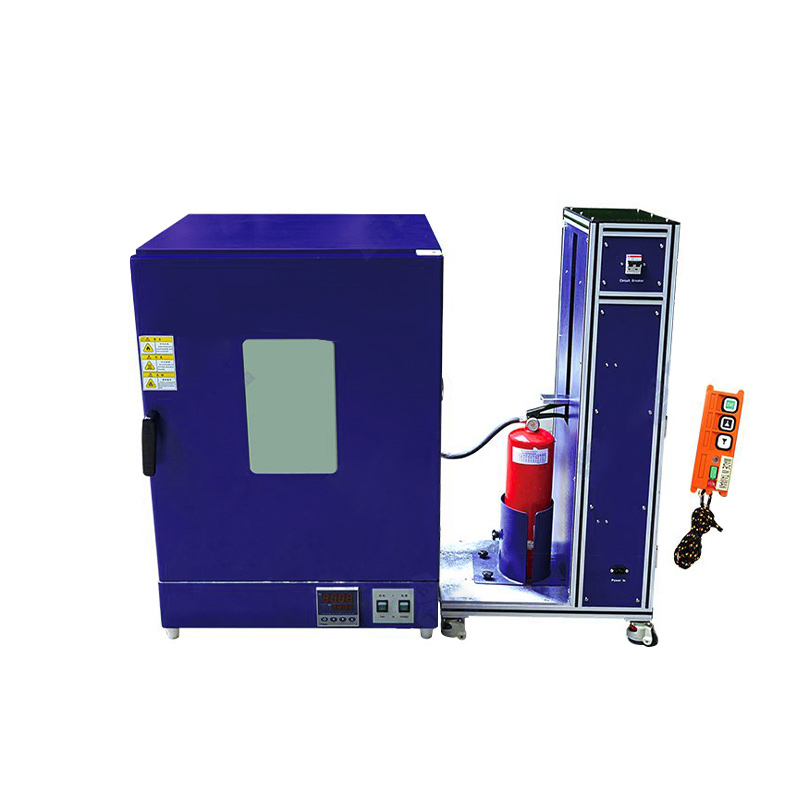

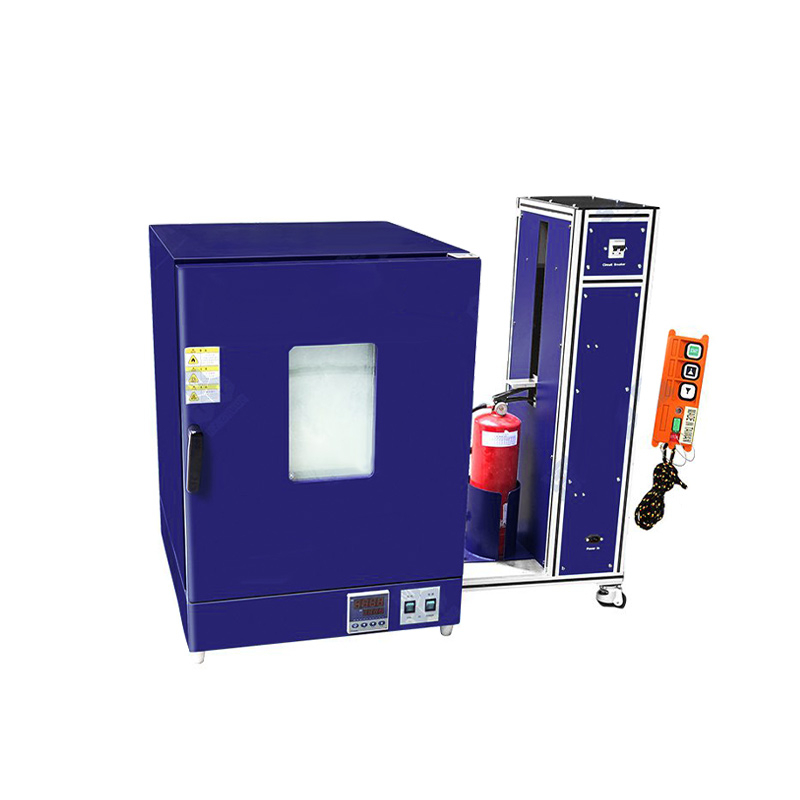

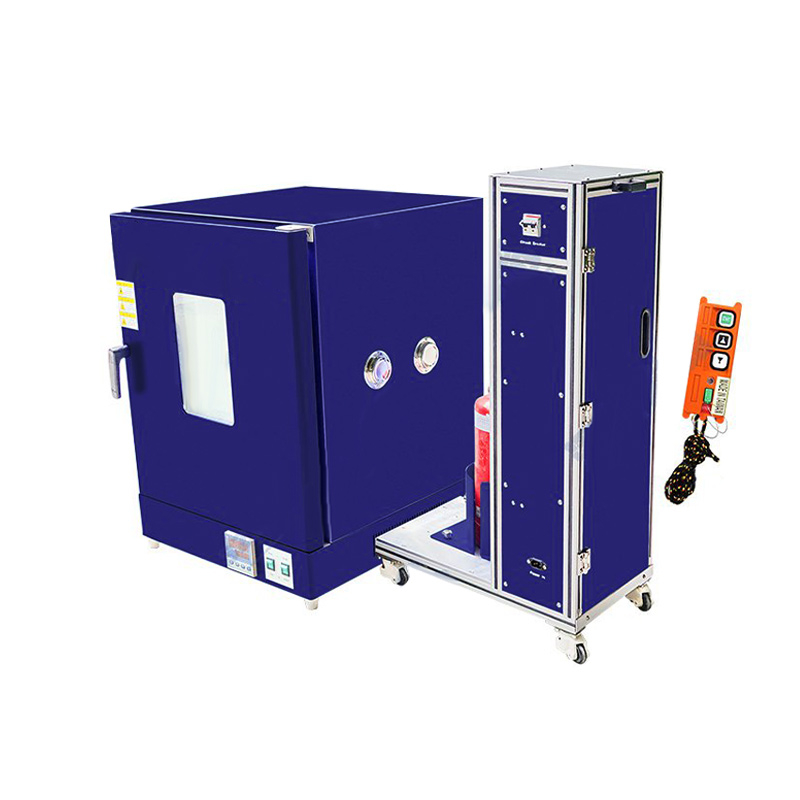

battery high temperature test chamber with fire extinguishing device

    battery high temperature test chamber with fire extinguishing device is a device that can be applied to the safety test of lithium ion batteries, which can simulate the safety performance of battery storage and use under high temperature conditions

battery high temperature test chamber with fire extinguishing device is a device that can be applied to the safety test of lithium ion batteries, which can simulate the safety performance of battery storage and use under high temperature conditions. The automatic fire extinguishing device designed by the equipment can realize automatic fire extinguishing by temperature monitoring or artificial remote control, which is suitable for heat abuse, high temperature use, stress relief and other test projects.

Product model: CY-TE909-130F

Equipment size: box W660*D765*H890mm

Fire extinguishing device W220*D320*H650mm

Weight: the box is about 80Kg, the fire extinguishing device depends on the fire extinguisher

The CY-TE909-130F battery high temperature test chamber with fire extinguishing device is a device that can be applied to the safety test of lithium-ion batteries, which can simulate the safety performance of batteries stored and used at high temperatures. The automatic fire extinguishing device designed by the equipment can realize automatic fire extinguishing by temperature monitoring or artificial remote control, which is suitable for heat abuse, high temperature use, stress relief and other test projects.

Functional characteristics:

Applicable standards GB31241-2014, IEC62133-2012, UN38.3, GB/T31485-2015, GB/T31467.3-2015, GB/T741-2014, etc.

The resistance heating temperature control is accurate, the internal temperature uniformity is good, the temperature fluctuation is small;

Selection of high-quality electrical components to ensure the reliability of work;

The maximum battery capacity is 20Ah.

designed with lighting and observation window, easy to use;

Fire extinguisher can be opened by remote manual control or automatic temperature monitoring;

The installation position can be adjusted to use different volumes of fire extinguishers, and it is recommended to use Class D fire extinguishers dedicated to lithium batteries

Parameter

Electric source

Voltage single-phase 220VAC±10%(customized 110VAC), frequency 50Hz/60Hz, power 2KW

Use environment

The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH(%), and there is no vibration or   electromagnetic interference

Test item

Heat abuse test, high temperature use   test, stress relief test

Test object

Button, cylindrical, flexible packaging,   square lithium battery

Applicable standard

GB31241-2014, IEC62133-2012, UN38.3,   GB/T31485, GB/T31467.3, GB/T741-2014, etc

Suitable sample

Buttons, cylindrical, flexible packaging,   square and various inclusions

Temperature range

RT Room temperature +10-150, can be set freely

Heating rate

The nonlinearity is about 7/min

Temperature distribution

Uniformity ±2 (working area)

Temperature control accuracy

±1 (optional ±0.1 temperature controller)

Test hole

Φ50mm*2, with plugs

Explosion-proof port

Φ150mm*1

Smoke vent

Φ32mm*1, need to be equipped with exhaust fan

Inner shelf

2 floors

Work space

W450mm*D540mm*H540mm, 130L

Observation window

W200mm*H300mm, explosion-proof film

Fire extinguishing method

Manual remote control trigger or   temperature monitoring trigger (trigger temperature can be set)

Fire extinguisher

User matching, adaptive size adjustable   (such as the United States 1L, 2L, 6L Class D fire extinguishers, etc.)

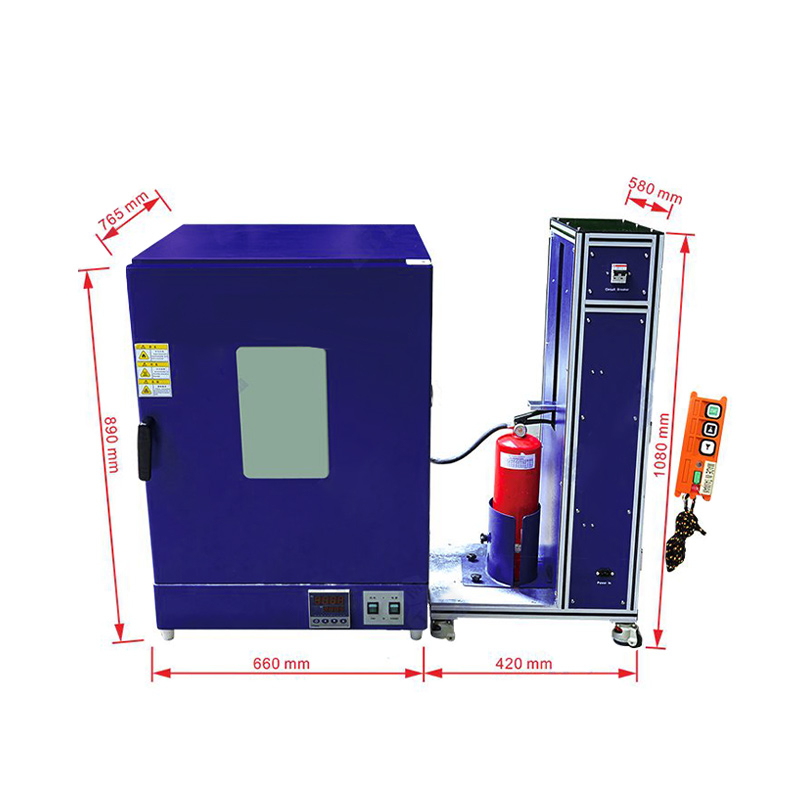

Equipment size

Box W660 x D765 x H890mm

weight

Fire extinguishing device   W220*D320*H650mm
