battery short circuit explosion proof box

battery short circuit explosion proof box

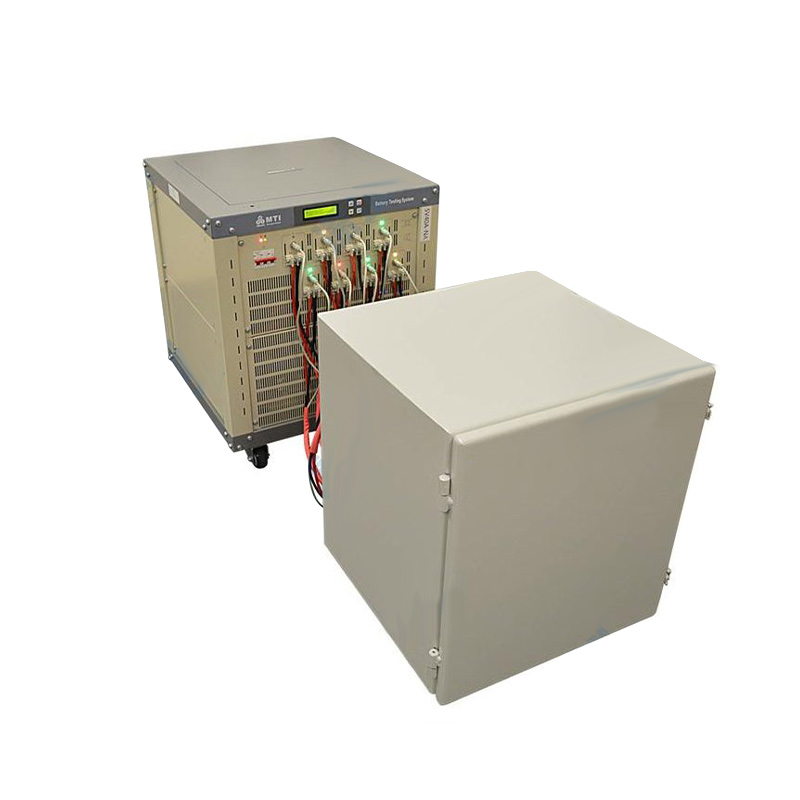

small mobile explosion-proof case for short circuit or overshoot testing of batteries, and can also be used in conjunction with our high temperature autoclave.

Inquire Now

CY-BS058 is a small mobile explosion-proof case for short circuit or overshoot testing of batteries, and can also be used in conjunction with our high temperature autoclave.

Product model: CY-BS058

CY-BS058 is a small portable explosion-proof case designed for short circuit or overshoot testing of batteries, and can also be used in conjunction with our high temperature autoclaves。

Technical parameters:

Materials	High-strength carbon steel
Internal dimension	500 mm × 500mm × 500mm(L ×W × H)

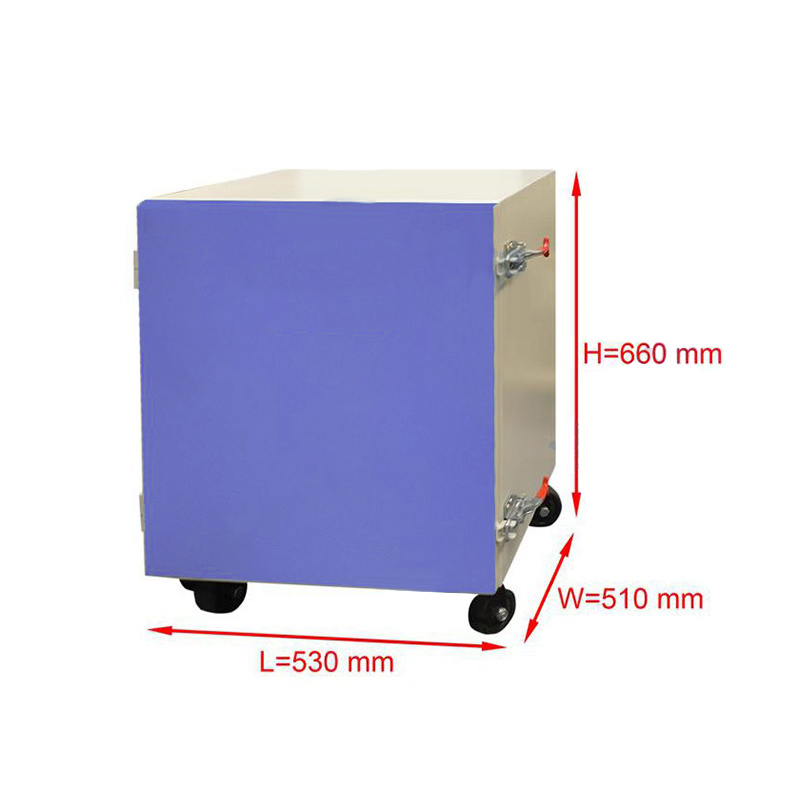

External dimension	530 mm × 510mm× 660mm (L ×W × H)
Steel plate thickness	5mm
The length of the device when the blast door is opened to its maximum extent	1080mm

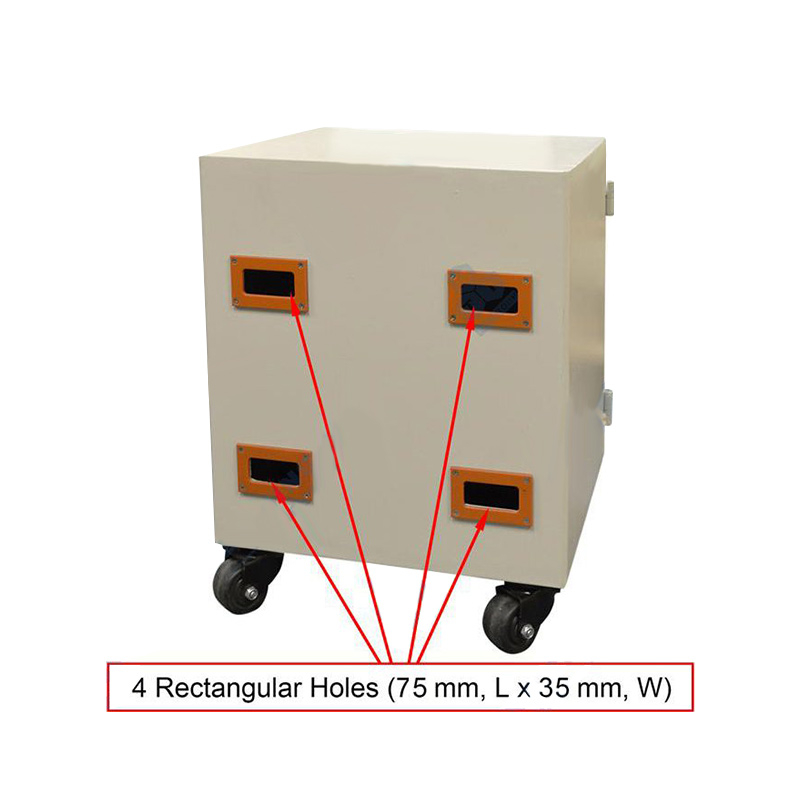

Lead null	There are 4 square lead holes on the back of the explosion-proof box, the dimensions are: 75mm L x 35mm W
Travelling wheel	The bottom of the explosion-proof case is equipped with 4 moving wheels for easy movement
Apply	Especially suitable for lithium battery overcharge and short circuit experiments
Quality guarantee	One year warranty lifetime maintenance
