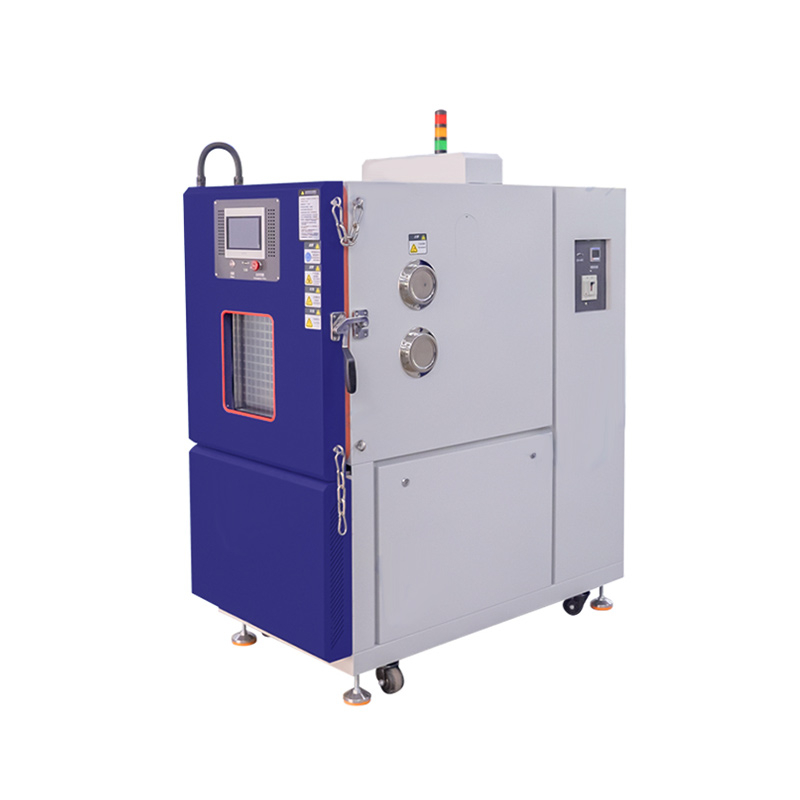

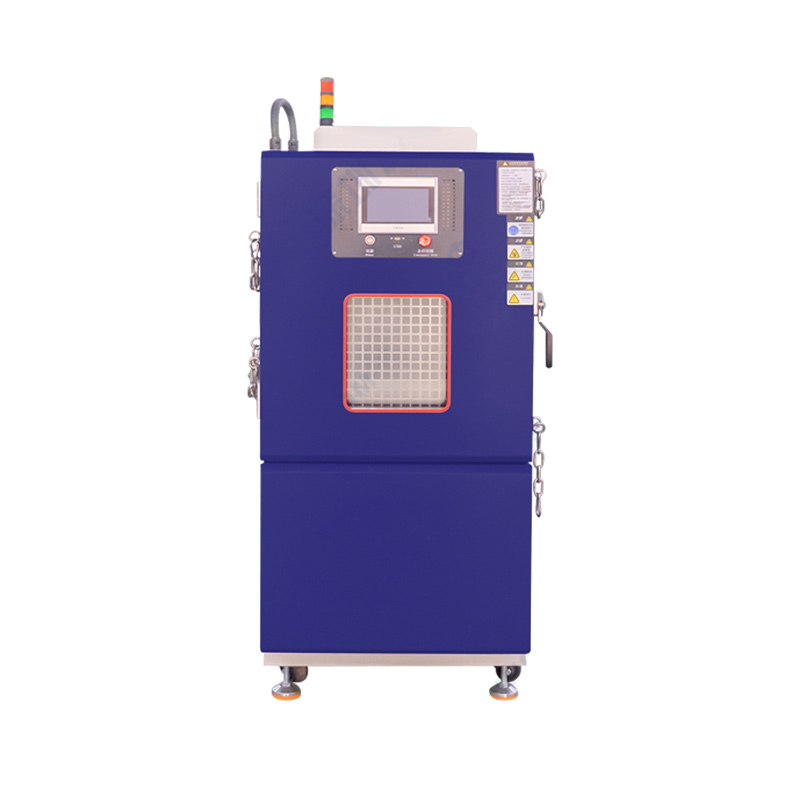

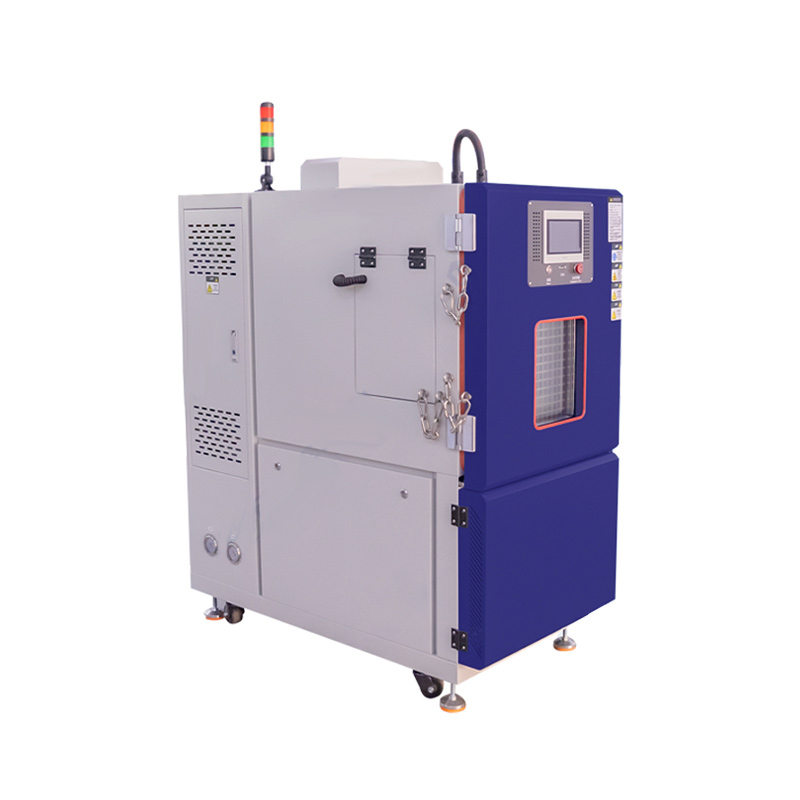

Battery Temperature Cycling Testing Machine

    battery temperature cycling testing machine is a device that can be used for safety testing of lithium-ion batteries and battery packs. It can simulate the safe performance of the battery under changes in high and low temperature environments

battery temperature cycling testing machine is a device that can be used for safety testing of lithium-ion batteries and battery packs. It can simulate the safe performance of the battery under changes in high and low temperature environments. The design can achieve temperature testing within the range of -70°C to +150°C, and can be widely used in industries such as electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemistry, building materials, etc.
Product Model:CY-TE906-150P-70-5
Internal Chamber Size:Approximately W500*D500*H600mm

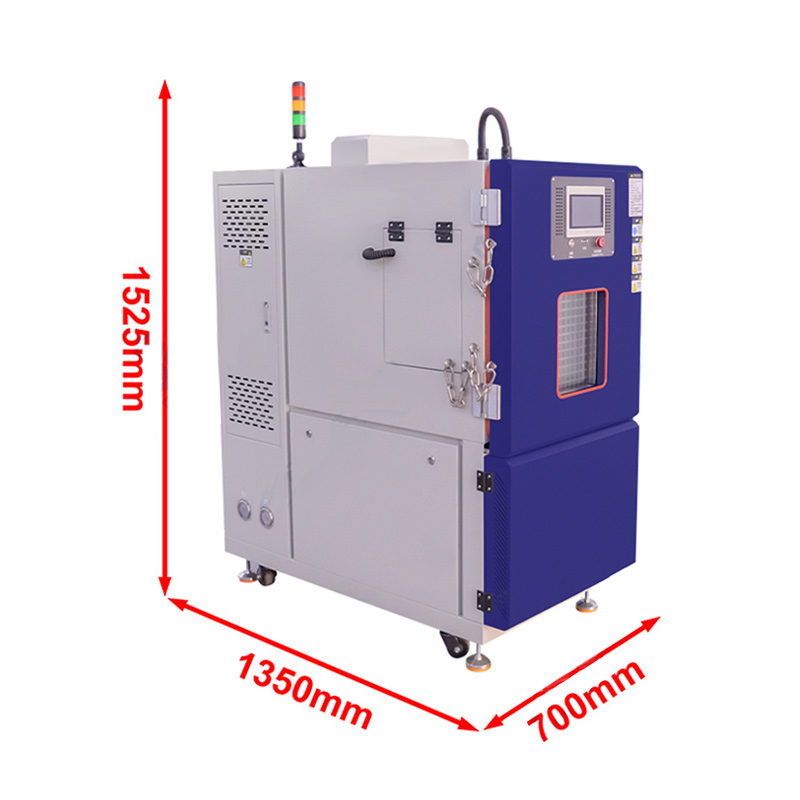

Overall Equipment Size:Approximately W700*D1350*H1525mm (excluding protruding parts)
Weight:About 380KG
CY-TE906-150P-70-5 Battery Temperature Cycling Testing Machine is a device that can be used for safety testing of lithium-ion batteries and battery packs. It can simulate the safe performance of batteries when placed in a high-temperature and low-temperature environment. The design can achieve temperature testing within the range of -70°C to +150°C, and can be widely used in industries such as electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemistry, building materials, etc.
Functions and Features:
A two-stage air-cooled refrigeration method is used, with imported environmentally friendly refrigerants;
Designed with compressor overpressure protection, overtemperature protection, and leakage protection safety protection functions;
PWM cold control technology, more accurate temperature control and energy saving;

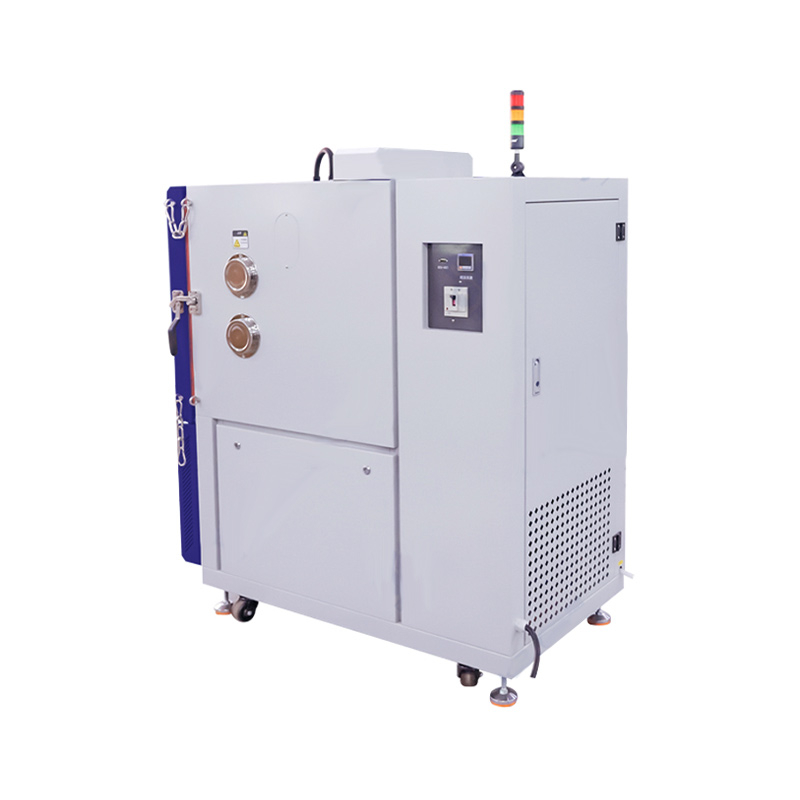

The side of the box is designed with cable holes, and the light inside the box is equipped on the door.

Tech parameter:

Power Supply

Three-phase five-wire AC380V±10%, frequency 50Hz, power about 9KW

Environmental Requirements

Temperature: 25±3, relative humidity: 85%RH, ambient   pressure: 86 ~ 106Kpa

Temperature Resolution/Fluctuation

0.01 / plus or minus   0.5 or less

Temperature Range

-70 ~ +150 (-70 sustainable use >1000h)

Temperature Bias

Plus or minus 2 or less

Temperature Uniformity

2 or less

Ramp Rate for Temperature Rise

-40℃→+75, 5/min (nonlinear no-load) (test ambient temperature 25)

Ramp Rate for Temperature Drop

+75℃→-40, 5/min (nonlinear no-load), -40℃→-70, 1/min (nonlinear no-load) (test ambient temperature 25)

Cooling Method

air-cooled

Noise Level

A Sound level 65dB(A)(1m in front of the gate from the ground height of 1.2m,   measured in free space)

Effective Volume

150L

Equipment Weight

About 380KG

Interior of Equipment

About W500*D500*H600mm

Overall Equipment

Approx. W700*D1350*H1525mm (excluding   protruding parts)
