Constant temperature and humidity boxConstant temperature and humidity box

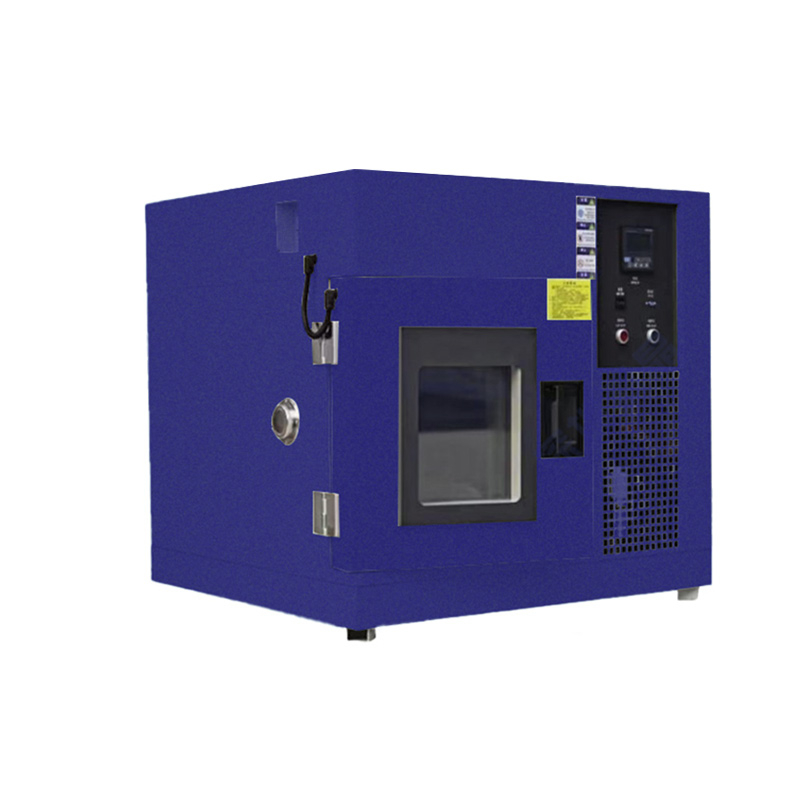

Constant temperature and humidity box

    Constant temperature and humidity box is a device that can be applied to the safety test of lithium ion batteries and battery packs, which can realize the safety performance of the battery in the high temperature

Constant temperature and humidity box is a device that can be applied to the safety test of lithium ion batteries and battery packs, which can realize the safety performance of the battery in the high temperature, low temperature, high humidity and low humidity environment changes. The design can realize the temperature range of -40 ~ +150, humidity 20% to 98%RH within the test, and can be widely used in electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemicals, building materials and other industries.

Product Model: CY-TE906-H36P-40-1

Equipment container: about W300*D300*H400mm

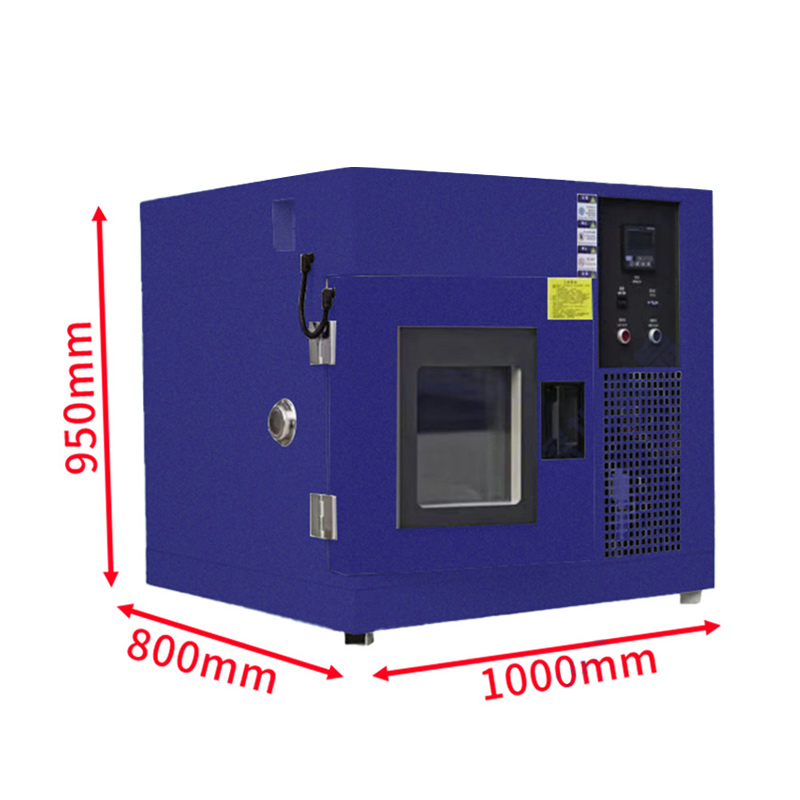

Overall equipment: about W1000*D800*H950mm

Weight: About 190KG

CY-TE906-H36P-40-1 Constant temperature and humidity box is a device that can be applied to the safety test of lithium ion batteries and battery packs, which can realize the safety performance of the battery in the high temperature, low temperature, high humidity and low humidity environment changes. The design can realize the temperature range of -40 ~ +150, humidity 20% to 98%RH within the test, and can be widely used in electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemicals, building materials and other industries.

Unit air-cooled refrigeration, imported environmentally friendly refrigerant;

Designed with compressor overpressure protection, humidifier dry burning protection, humidifier water shortage protection, test chamber protection and other safety protection functions;

PWM cold control technology, more accurate temperature control and energy saving;

The side of the box is provided with cable holes, and the door is provided with a lighting inside the box.

Parameter

Electric source

Single-phase AC220V±10%, frequency 50HZ, power about 5KW

Environmental requirement

Temperature: 5 ~ 35, relative humidity: 85%RH, ambient air   pressure: 86 ~ 106Kpa

Temperature resolution/fluctuation

0.01 / plus or minus   0.5 or less

Temperature range

-40 ~ +150

Temperature deviation

Plus or minus 2 or less

Temperature uniformity

≤±2 (9 points relative deviation)

Heating rate

-40℃→+150, 5/min (nonlinear load)

Cooling rate

+150℃→-40, 1/min (nonlinear load)

Standard load

30W calorific value

Refrigeration mode

air-cooled

Humidity range

(20 ~ 85) 20% ~ 98%RH

Relative humidity deviation

Plus or minus 3.0% RH or less

Humidity fluctuation

Plus or minus 2.0% RH or less

noise

A Sound level 65dB(A)(1m in front of the gate from the ground height of 1.2m,   measured in free space)

Effective volume

36L

Equipment weight

Approx 190KG

Equipment liner

About W300*D300*H400mm

Whole equipment

About W1000*D800*H950mm
