explosion-proof box can be used for lithium-ion battery overcharge and overdischarge test and storage to prevent unnecessary damage caused by battery combustion or explosion
explosion-proof box can be used for lithium-ion battery overcharge and overdischarge test and storage to prevent unnecessary damage caused by battery combustion or explosion. The equipment adopts metal frame design, double sheet metal structure, strong texture, good explosion-proof effect.
Product model: CY-TE903

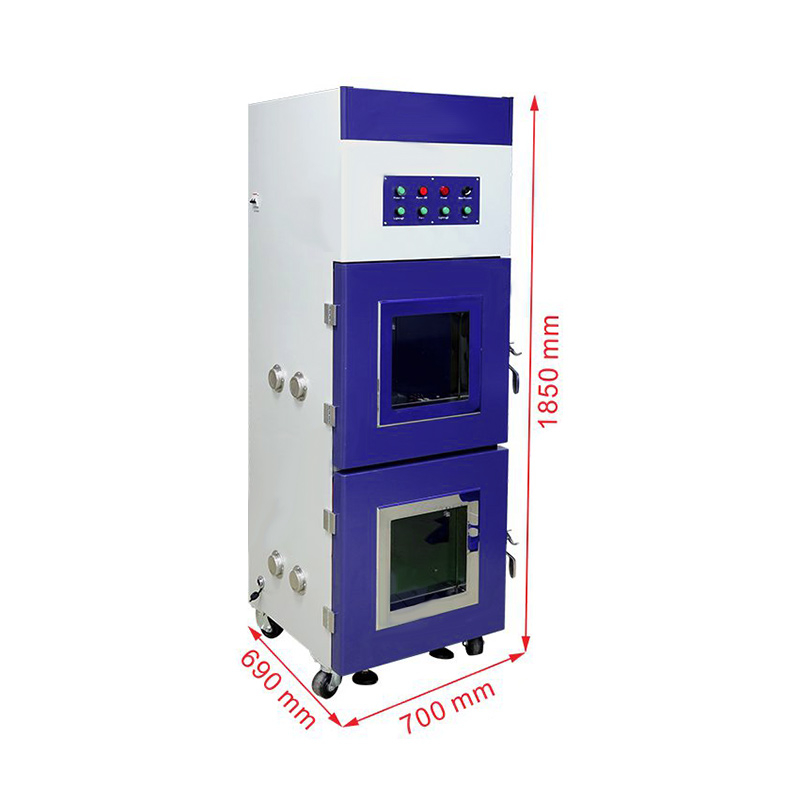

Installation size: L700*W690*H1850mm
Weight: About 200kg
Version number: V1.5
The CY-TE903 explosion-proof box can be used for lithium-ion battery overcharge and overdischarge test and storage to prevent unnecessary damage caused by battery combustion or explosion. The equipment adopts metal frame design, double sheet metal structure, strong texture, good explosion-proof effect.
Functional characteristics:

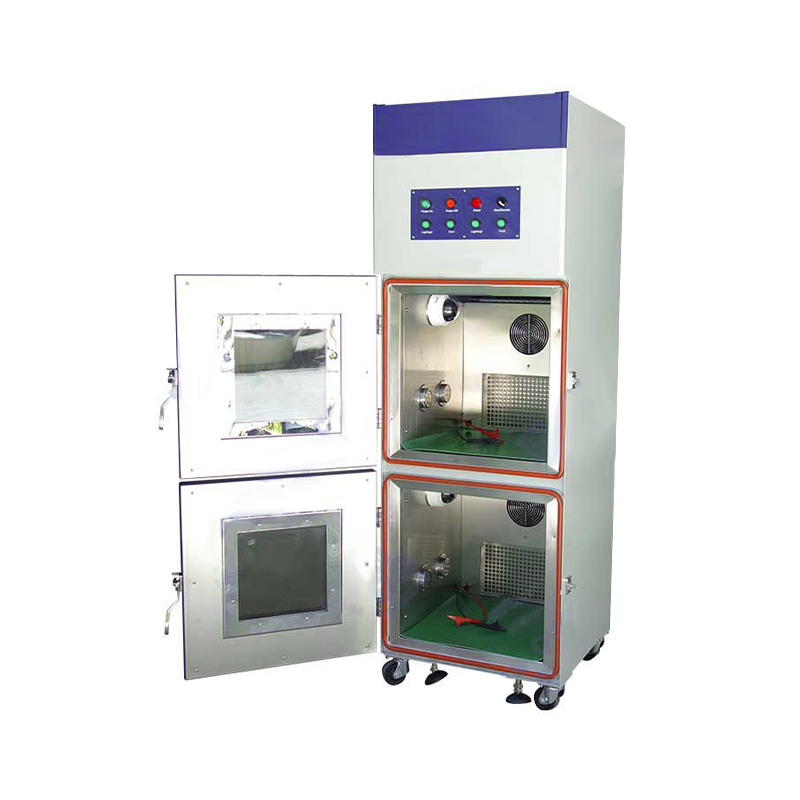

The box is divided into two layers, each layer has an explosion-proof chamber;
Each explosion-proof chamber shall be designed with an explosion-proof pressure relief opening and an explosion-proof glass observation window;
The bottom of the explosion-proof chamber is covered with insulating rubber to prevent external short circuit of the battery;
The box is equipped with high brightness LED energy-saving explosion-proof light, the lamp irradiation Angle is adjustable;

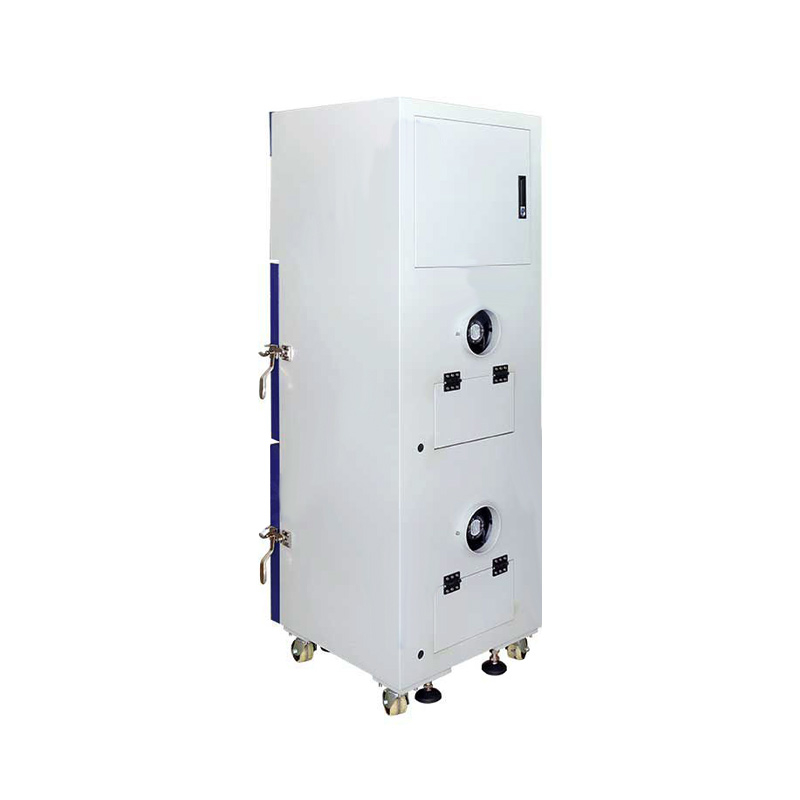

A powerful exhaust fan is installed at the rear of the box, which can be manually started to exhaust the smoke to the outside of the box;
Each explosion-proof chamber is designed with two test holes for passing through the test line or supplementing the air;
Each explosion-proof chamber is equipped with a 3m long test cable with clamps, which can withstand a maximum current of 30A;
Easy to operate, safe and reliable, beautiful appearance.
Optional fire extinguisher module and video surveillance function (video surveillance function requires the customer to provide PoE power supply standard IEEE802.3af/at switch)
Parameter:
Electric source | Voltage single-phase 220VAC±10% (customized 110VAC), frequency 50Hz/60Hz, power 100W |
Box material | The inner layer is made of brushed stainless steel and the outer layer of cold-rolled steel plate is treated with baking paint |
illumination | LED explosion-proof light, lamp irradiation Angle can be adjusted |
Test load | Standard wire test current maximum 30A |
Auxiliary function | Explosion-proof pressure relief port, powerful exhaust fan, tuyere, movable footing |
Explosion-proof chamber | L500*W500*H500mm, a total of two layers, one upper and lower |
Equipment size | L700*W690*H1850mm |
weight | Approx. 200kg |
