normal temperature battery external short circuit testing machine is a device that can be applied to the external short circuit testing process of lithium ion batteries

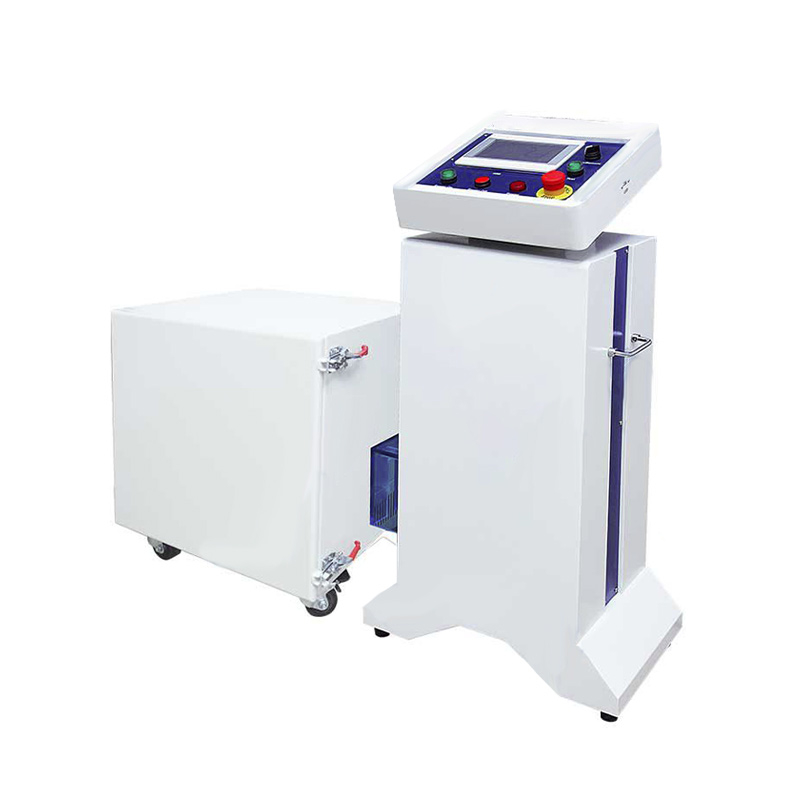

normal temperature battery external short circuit testing machine is a device that can be applied to the external short circuit testing process of lithium ion batteries. The device is composed of a short-circuit control unit and an explosion-proof box. While detecting and recording the surface temperature of the battery, it can complete the external short-circuit test of the lithium battery at normal temperature, and meet various battery safety test standards at home and abroad.
Functional characteristics
Applicable standards GB31241-2014, UN38.3, IEC62133-2012, GB/T741-2014, etc.
Adopt imported DC high voltage relay to ensure the short circuit is safe and reliable;
Closed metal explosion-proof box, good impact pressure resistance;
Explosion-proof box design explosion-proof pressure relief port and test port;
Transfer terminals patented for batteries with different short circuit currents, and battery surface temperature measurement devices;
Selection of high-quality electrical components, test current voltmeter display, with local and remote operation switching function;
Technical parameters MSK-TE901-A200 MSK-TE901-A1000
Power supply voltage single-phase 220VAC±10%(110VAC can be customized), frequency 50Hz/60Hz, power 1KW is the same as A200
Recommended operating environment Ambient temperature 25±3 ° C, humidity 30 to 90RH(%), no vibration and electromagnetic interference The same as A200
Test items Lithium-ion battery and battery pack external short circuit test is the same as A200
Applicable standards GB31241-2014, UN38.3, IEC62133-2012, GB/T741-2014, etc. are the same as A200
Short circuit voltage Max.100V, accuracy 0.2% same as A200
Short circuit current Max. 200A, accuracy 0.2% Max. 1000A, accuracy 0.2%
Battery temperature measurement Max. 200℃, accuracy ±1℃ is the same as A200
Short circuit resistance 80±20mΩ, carrying 4KW <5mΩ, optional resistance cabinet 80±20mΩ, carrying 80KW
Installation size Explosion-proof oven W700mm*D650mm*H900mm,
Control box W500mm*D500mm*H700mm
Explosion-proof oven W700mm*D650mm*H900mm,
Control box W500mm*D500mm*H700mm
Resistance cabinet W700mm*D500mm*H900mm(optional)
Weight explosion-proof oven 100kg, control box 46kg explosion-proof oven 100kg, control box 46Kg, resistance cabinet 180kg;
Technical parameter | CY-TE901-A200 | CY-TE901-A1000 |
Electric source | Voltage single-phase 220VAC±10%(customized 110VAC), frequency 50Hz/60Hz, power 1KW | Same as A200 |
Use environment | The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH(%), and there is no vibration or electromagnetic interference | Same as A200 |
Test item | Lithium ion battery and battery pack external short circuit test | Same as A200 |
Applicable standard | GB31241-2014, UN38.3, IEC62133-2012, GB/T741-2014, etc | Same as A200 |
Short-circuit voltage | Max.100V, accuracy 0.2% | Same as A200 |
Short-circuit current | Max.200A, accuracy 0.2% | Max.1000A, accuracy 0.2% |
Battery temperature measurement | Max. 200℃, accuracy ±1℃ | Same as A200 |
Short-circuit resistance | 80±20mΩ, bearing 4KW | <5mΩ, optional resistance cabinet to achieve 80±20mΩ, bearing 80KW |
Mounting dimension | Explosion-proof oven W700mm*D650mm*H900mm, control box W500mm*D500mm*H700mm | Explosion-proof oven W700mm*D650mm*H900mm, control box W500mm*D500mm*H700mm Resistance cabinet W700mm*D500mm*H900mm(optional) |
weight | Explosion-proof oven 100kg, control box about 46kg | Explosion-proof oven 100kg, control box about 46Kg, resistance cabinet 180kg |
