security test center video surveillance system

security test center video surveillance system

Safety Test Center video monitoring system is a set of CY planning can be applied to lithium ion battery safety test center remote video and audio monitoring system

Inquire Now Next Product

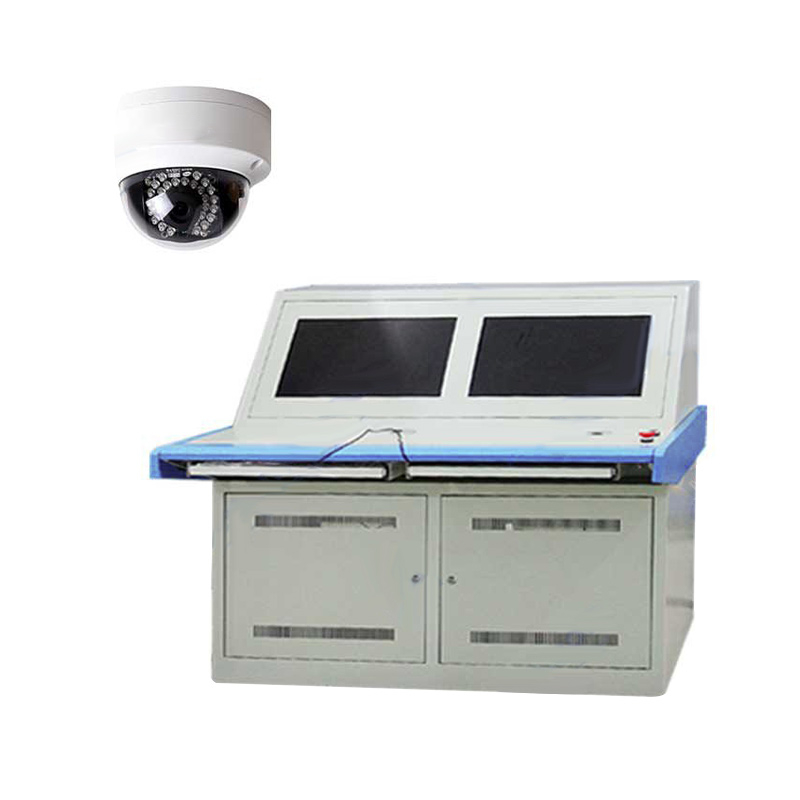

Scope of application: CY-TE900-V Safety Test Center video monitoring system is a set of CY planning can be applied to lithium ion battery safety test center remote video and audio monitoring system.

Product model: CY-TE900-V

Installation size: L700mm*W700mm*H1080mm

Weight: 80Kg

Version number: V1.0

Cy-te900-v Safety Test Center video monitoring system is a set of CY planning can be applied to lithium ion battery safety test center remote video and audio monitoring system.

Functional features:

 Applicable standards GB31241-2014, UN38.3, IEC62133-2012, GB31485-2015, etc.

 infrared HD camera, can clearly record part of the experimental equipment inside and all the equipment peripheral test process;

 High performance video recorder, can be split screen monitoring and historical playback, can also be configured according to the requirements of the corresponding capacity of the hard disk;

 placed in the central control center operation, safe and reliable;；

Camera	Product Model: CY-2CD3135F-I Quantity: Set this parameter based on customer requirements Camera features: day and night conversion, wide dynamic, infrared light Imaging device: 1/3 inch Progressive Scan CMOS Effective pixels: 3 million Lens parameters: 4mm@F2.0, (2.8mm, 6mm, 12mm optional) Minimum illumination: 0.07Lux@(F1.2, AGC ON), 0Lux with IR, 0.01 Lux @ (pro series, AGC ON), 0 Lux with IR Electronic shutter: 1/3 second to 1/100,000 second Dynamic detection: Supported Other parameters: infrared irradiation distance: 10-30 meters Network protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour Protection level: IP66 Power supply voltage: DC 12V Power supply: 5W MAX (ICR switching moment 7W) Installation mode: Desktop installation, ceiling installation Product size: 111×84mm Product weight: 500g
Video system	Power supply voltage: AC 220V, 47-63Hz Power: ≤40W (excluding hard disk) Video input: Up to 16 channels, BNC interface, 1.0Vp-p, 75Ω Video output: 2 channels, BNC interface, 1.0Vp-p, 75Ω, 16 loop output, 1 VGA output, 1 HDMI output Audio output: 2 channels, BNC interface Other interfaces: RS232, RS485, RJ-45, 3 USB2.0, 1 Support video: playback Storage space: 3TB hard disk (can be freely increased according to the required camera and storage time) Dimensions: 445×470×90mm Product weight: ≤8kg
video display	19 "video display output, full screen or multi-screen segmentation Power supply voltage AC 220V
Control system	Simplex remote console Installation size: L700mmW700mmH1080mm
Weight	About 80Kg
