temperature-controlled battery external short circuit testing machine is a device that can be used in the external short circuit testing process of lithium ion batteries.
temperature-controlled battery external short circuit testing machine is a device that can be used in the external short circuit testing process of lithium ion batteries. The device is composed of a short-circuit control unit and a temperature-controlled explosion-proof box. While detecting and recording the surface temperature of the battery, it can complete the external short-circuit test of the lithium battery under normal temperature and high temperature, and meet various battery safety test standards at home and abroad.
Product model: CY-TE901-P
Installation size: CY-TE901-P200: explosion-proof oven W670mm*D780mm*H900mm
Control box W580*D370*H1010
CY-TE901-P1000: explosion-proof oven W670mm*D780mm*H900mm,
Control box W580*D370*H1010
Resistance cabinet W700mm*D500mm*H900mm(optional)
Weight: CY-TE901-P200: explosion-proof oven 60kg, control box about 46kg
CY-TE901-P1000: explosion-proof oven 60kg, control box about 46Kg, resistance cabinet 180kg
Version number: V1.1

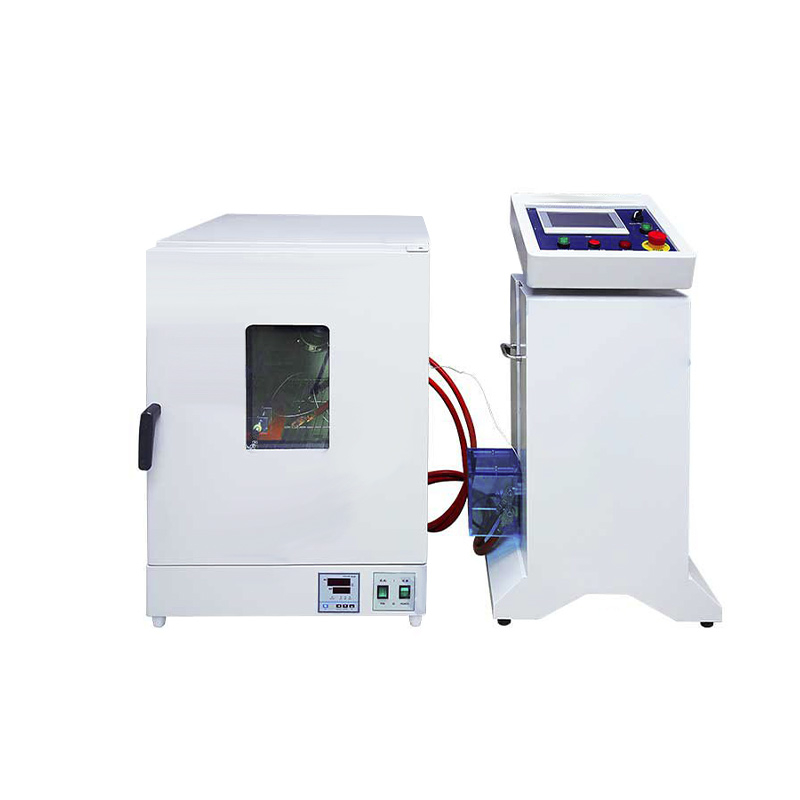

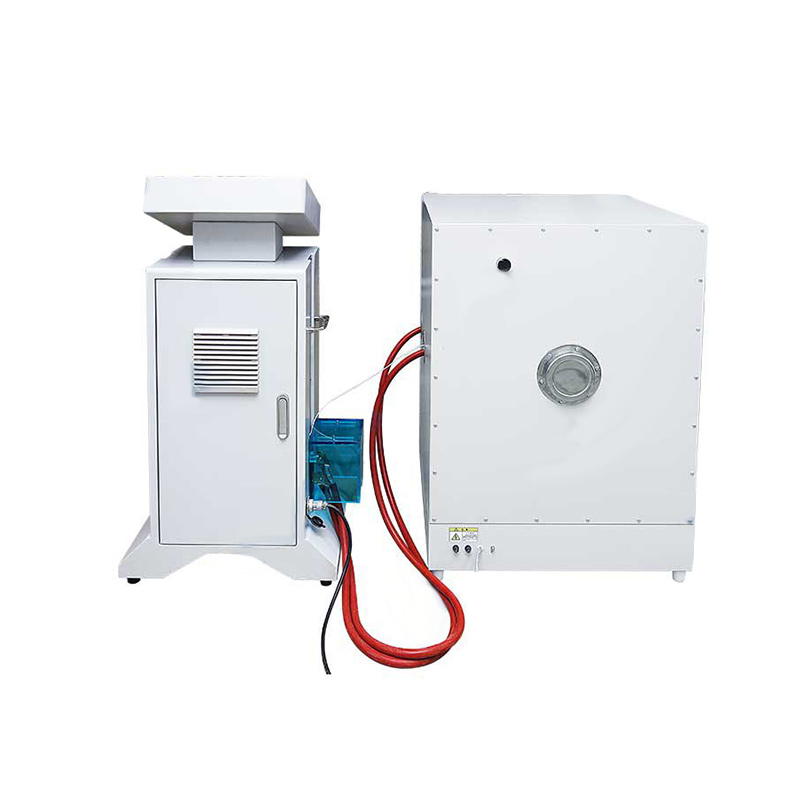

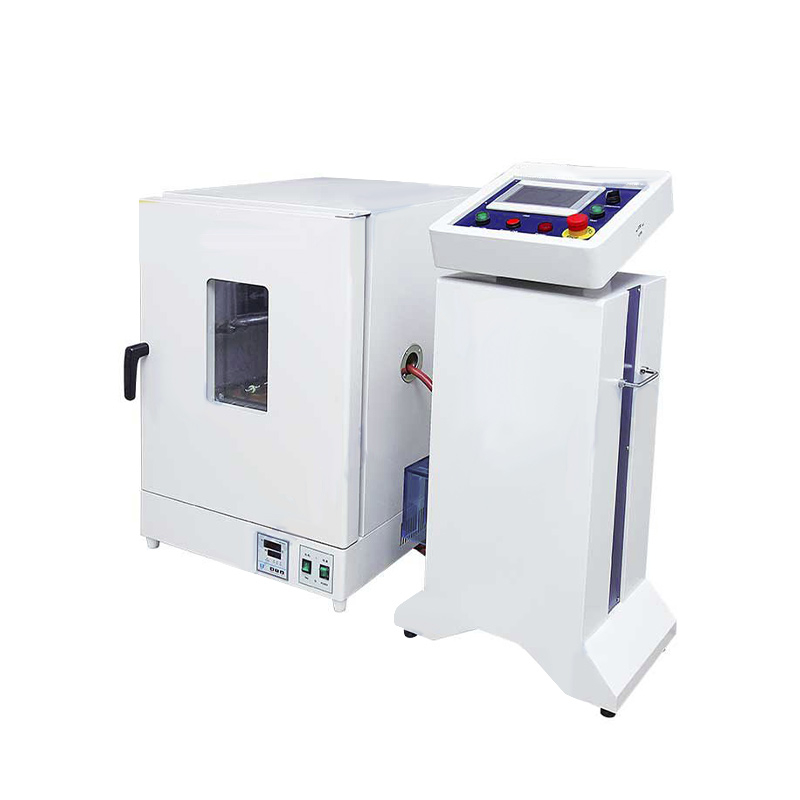

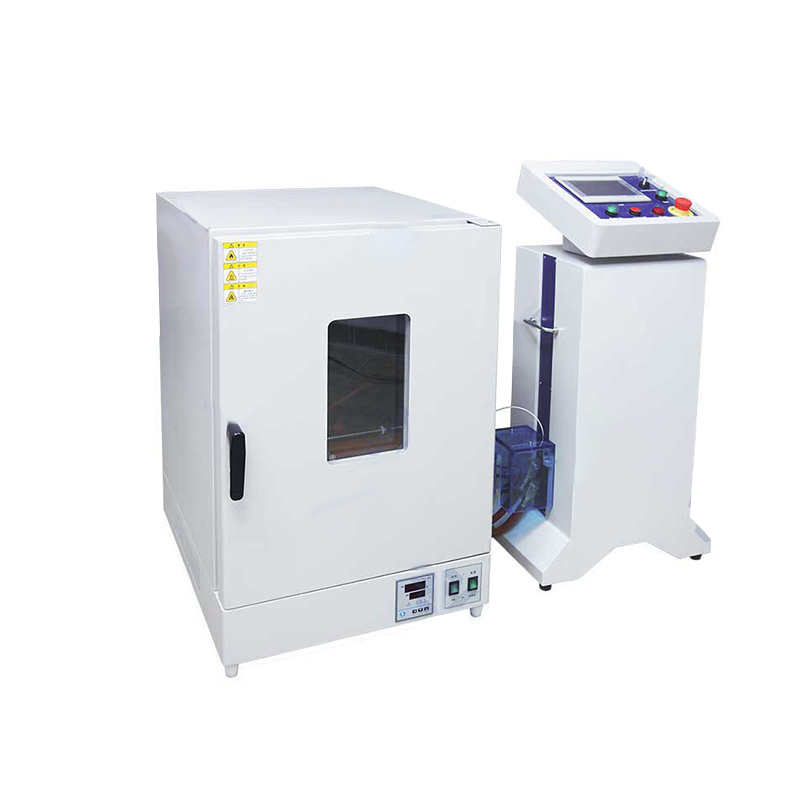

CY-TE901-P temperature-controlled battery external short circuit testing machine is a device that can be applied to the external short circuit testing process of lithium ion batteries. The device is composed of a short-circuit control unit and a temperature-controlled explosion-proof box. While detecting and recording the surface temperature of the battery, it can complete the external short-circuit test of the lithium battery under normal temperature and high temperature, and meet various battery safety test standards at home and abroad.
Functional characteristics
Applicable standards GB31241-2014, UN38.3, IEC62133-2012, GB/T741-2014, etc.
Adopt imported DC high voltage relay to ensure the safety and reliability of short circuit;
Hot air explosion-proof oven, reinforced sheet metal frame design, strong impact pressure resistance;
with cavity heating duct design, good temperature uniformity, to ensure the test environment standards;
The observation window is made of explosion-proof laminated glass for easy observation;
Design battery surface temperature measuring device, and optional resistance cabinet to achieve different test internal resistance requirements;
Selection of high-quality electrical components, test current voltmeter display, with local and remote operation switching function;
Technical parameter | CY-TE901-P200 | CY-TE901-P1000 |
Electric source | Voltage single-phase 220VAC±10% (customizable 110VAC/60Hz), frequency 50Hz, power 1.5KW | Same as P200 |
Use environment | The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH(%), and there is no vibration or electromagnetic interference | Same as P200 |
Test item | Lithium ion battery and battery pack external short circuit test | Same as P200 |
Applicable standard | GB31241-2014, UN38.3, IEC62133-2012, GB/T741-2014, etc | Same as P200 |
Short-circuit voltage | Max.100V, accuracy 0.2% | Same as P200 |
Short-circuit current | Max.200A, accuracy 0.2% | Max.1000A, accuracy 0.2% |
Oven temperature | Max. 150±2℃ | Same as P200 |
Battery temperature measurement | Max. 200℃, accuracy ±1℃ | Same as P200 |
Short-circuit resistance | 80±20mΩ, bearing 4KW | <5mΩ, optional resistance cabinet to achieve 80±20mΩ, bearing 80KW |
Mounting dimension | Explosion-proof oven W670mm*D780mm*H900mm Control box W580*D370*H1010 | Explosion-proof oven W670mm*D780mm*H900mm, control box W580*D370*H1010 Resistance cabinet W700mm*D500mm*H900mm (optional) |
weight | Explosion-proof oven 60kg, control box about 46kg | Explosion-proof oven 60kg, control box about 46Kg, resistance cabinet 180kg |
