button electric constant temperature testing machine is mainly used in button cell in the condition of constant temperature of charge and discharge test, thermostat and battery tester is the integration of design
button electric constant temperature testing machine is mainly used in button cell in the condition of constant temperature of charge and discharge test, thermostat and battery tester is the integration of design, equipment covers an area of maximum use, can be placed 160 buckle.
Product model: CY-TE906-160CH

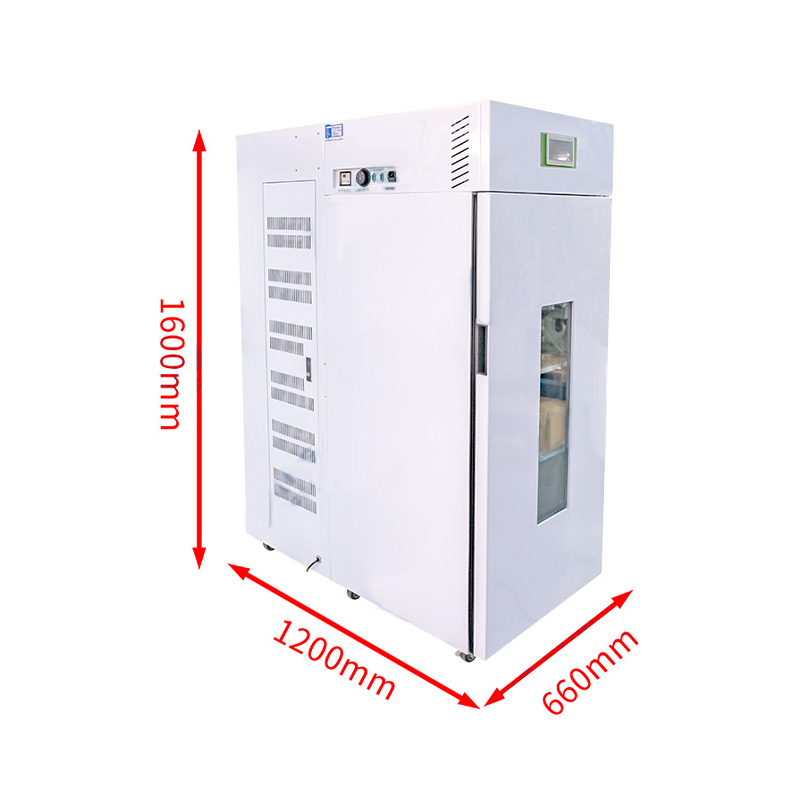

Equipment size: about W660*D1200*H1600mm
Weight: About 270Kg
Release date: 2023-03-07
Version number: V1.4
Functional characteristics
CY-TE906-160CH CY-TE906-160CH constant temperature test machine is mainly used in the charge and discharge test of buckle batteries under constant temperature state. The integrated design of temperature box and battery tester enables the maximum utilization of equipment footprint and can place 160 buckle batteries.
Double-layer overall structure and programmed temperature control system, equipped with air cooling system and electric heating system, with fast heating speed, stable cooling and other characteristics;
The balanced temperature regulation method of forced circulation ventilation is adopted. The control system controls the output of the heater through PID automatic calculation and output results according to the set temperature value, so as to achieve the dynamic balance of temperature;
special jig for power deduction, clamping up and down, easy to install.。
Parameter:
Power | Single-phase AC220V±10%, frequency 50Hz, total power about 3KW (including tester) |
Working environment requirement | Temperature ≤25℃, humidity ≤85%RH |
Nominal volume | 300L |
Box material | Outer box cold-rolled steel spray, inner stainless steel mirror plate |
Temperature range | 0 ℃ to 60 ℃ |
Temperature resolution | 0.1 ℃ |
Temperature fluctuation | + / - 1 ℃ |
Temperature uniformity | Plus or minus 1.5 ℃ |
Threading hole | 4 pieces, diameter φ50mm |
Electrical control system | LCD control panel, forced circulation ventilation |
tester | Standard 5V10mA 8-channel battery tester, optional brand |
Septum number | Four pieces |
Liner size | About W520 x D490 x H1190mm |
Overall dimension | About W660*D1200*H1600mm |
Weight about 190KG | About 270Kg |
