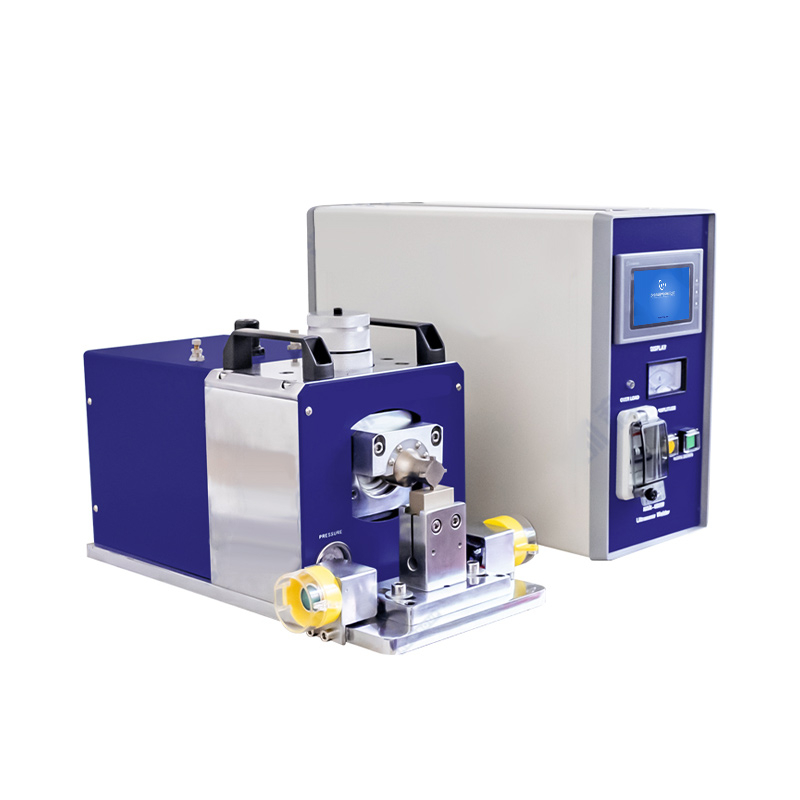

The Ultrasonic welding machine (Intelligent Argon version) is designed for use in the argon environment of the glove box. Equipment for lamination welding of metal foil can be used in lithium-ion batteries
The Ultrasonic welding machine (Intelligent Argon version) is designed for use in the argon environment of the glove box. Equipment for lamination welding of metal foil can be used in lithium-ion batteries, nickel-metal hydride batteries, nickel-chromium batteries and various secondary battery welding processes. Equipment power selection of high-quality electronic components, stable power, good welding consistency. The overall equipment design is compact, HMI parameter adjustment, easy to use.
International advanced voltage regulating circuit, stable welding output power, good welding consistency;
Strong welding power, solid welding, low internal resistance, no virtual welding;
Can achieve up to 20 layers of copper foil laminated welding (depending on the battery copper foil, thickness and electrode thickness);
Welding mold using special abrasive steel, good wear resistance, long service life;

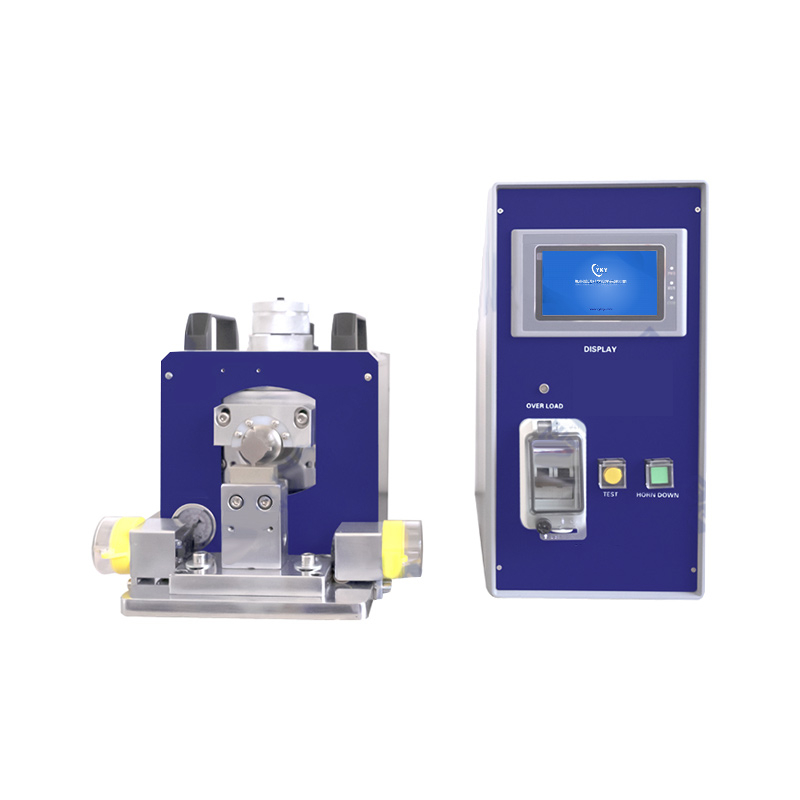

HMI operation, digital setting, easy to use;
It can be operated in the argon gas environment of the glove box.
Power supply | Single phase voltage AC110V-220V, frequency 50Hz/60Hz, power approximately 800W |
Gas source | 0.5-0.8MPa compressed air |
Working environment | Glove box environment (water oxygen ≤1ppm), no vibration and electromagnetic interference |
Welding power | 50~800W adjustable(Adjust the welding amplitude 0~100%, the output power will change accordingly) |
Ultrasonic frequency | 40KHz±10% |
Welding time | Less than 0.4s, adjustable |
Weld head and weld base | Standard welding mold area: 3 * 6MM comes standard with two sets of welding heads and sockets. (Used for welding the positive and negative electrode tabs of lithium battery cells) |
Welding process 1 | Welding pure aluminum strip 0.10mm+pure aluminum foil 0.016mm within 20 layers |
Welding process 2 | Welding pure nickel strip 0.10mm+copper foil 0.009mm within 20 layers |

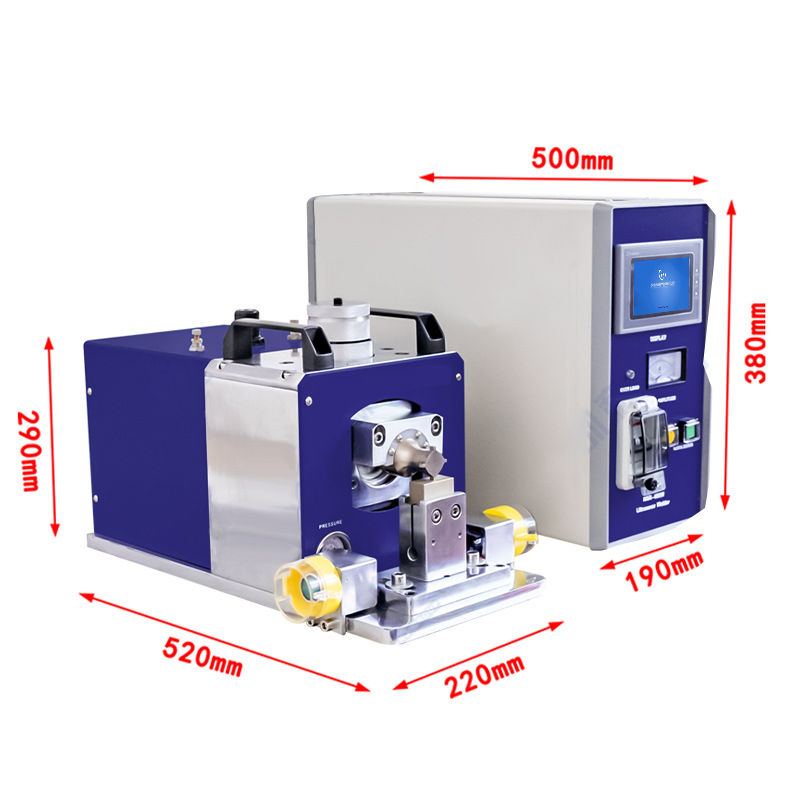

Size | Machine: L520*W220*H290mm Control box: L500*W190*H380mm |
Transfer inside and outside the box | By customizing the KF40 feedthrough flange to connect to the glove box (work unit and control unit) |
Weight | 52.5 KG |
