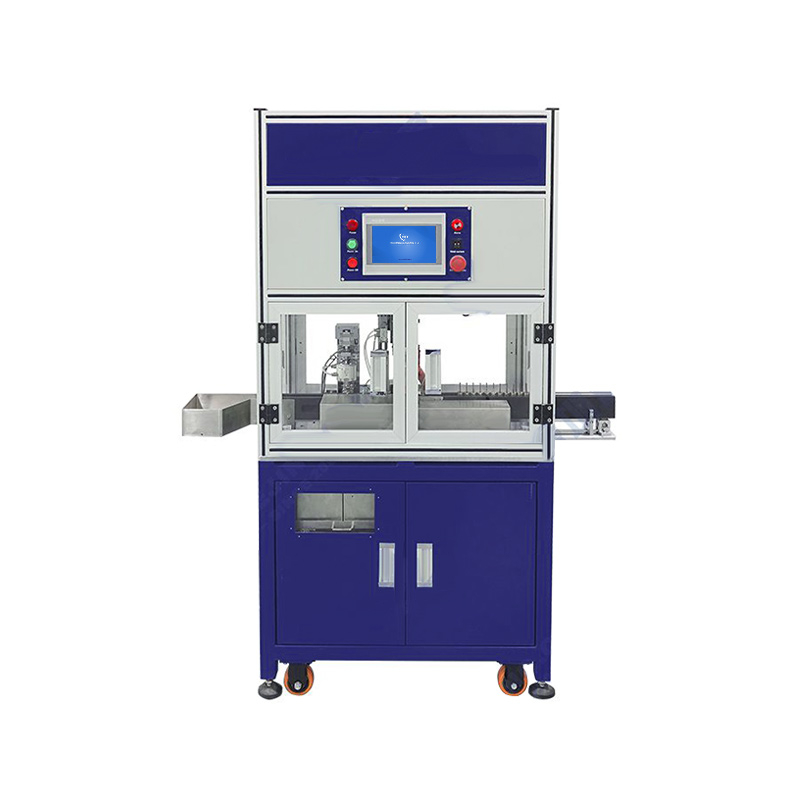

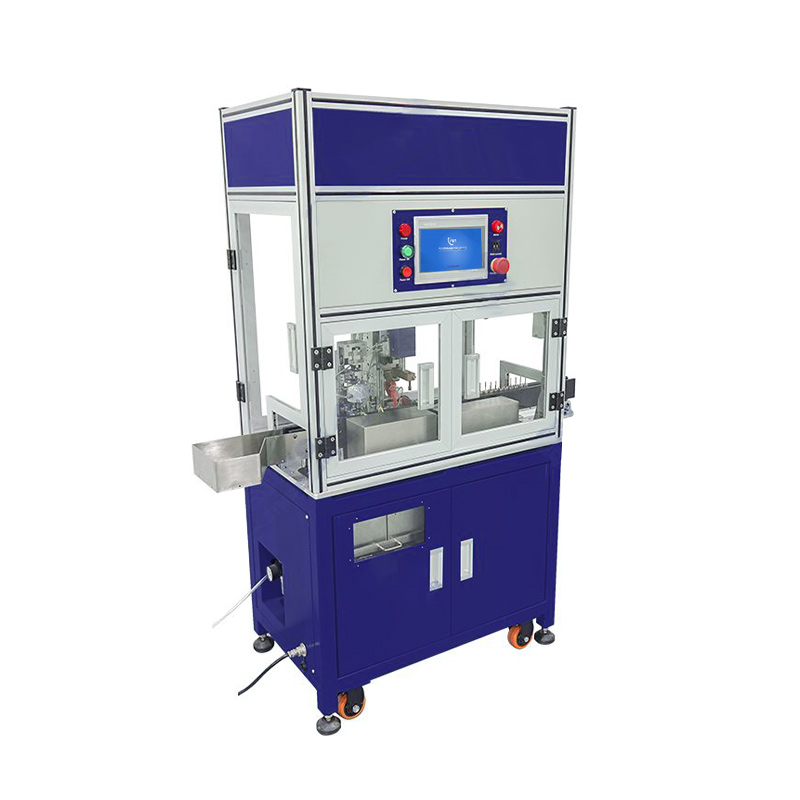

The automatic negative electrode spot welding machine for cylindrical batteries is a negative electrode spot welding and weld point tensile testing equipment used for cylindrical batteries.
The automatic negative electrode spot welding machine for cylindrical batteries is a negative electrode spot welding and weld point tensile testing equipment used for cylindrical batteries. The equipment adopts manual loading and belt conveyor feeding to realize automatic negative electrode spot welding and weld point tensile testing, manual material collection and manual waste recycling.
Standard 18650 cylindrical battery negative electrode welding;
Manual loading and material collection, automatic welding, automatic tensile measurement, safe, convenient and efficient;
Vertical spot welding of battery negative electrode ear, firm, non-blackened, good consistency;
Adopting precision tensile test components, the test tensile force is independently adjustable and high in precision;
The equipment can be used alone or connected with the rolling groove process equipment;
The welding needle is easy to collect and reuse;
It can realize sample preparation and small and medium batches;
The tensile test can be shielded or set to sampling mode;
Power supply | Single-phase 220VAC±10%, frequency 50Hz, power 5KW |
Gas source | 0.5-0.8MPa compressed air |
Usage environment | Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference |
Applicable batteries | Standard diameter: φ18mm height: 67mm (customizable φ14-φ32mm, height: 40-70mm) |
Ear tab requirements | The positive pole ear should be 10~15mm higher than the aluminum shell |
Welding power | 0~10VA adjustable |
Test tension | ≤50N adjustable (recommended 5N) |
Applicable scope | Applicable to 0.1mm~0.2mm thick pole ears (special thickness can be customized) |
Number of placements | A maximum of 27 batteries can be placed on the conveyor line |
Storage capacity | Good product collection box: can hold 50~60 batteries |
Welding efficiency | Defective product collection box: can hold about 60 batteries |

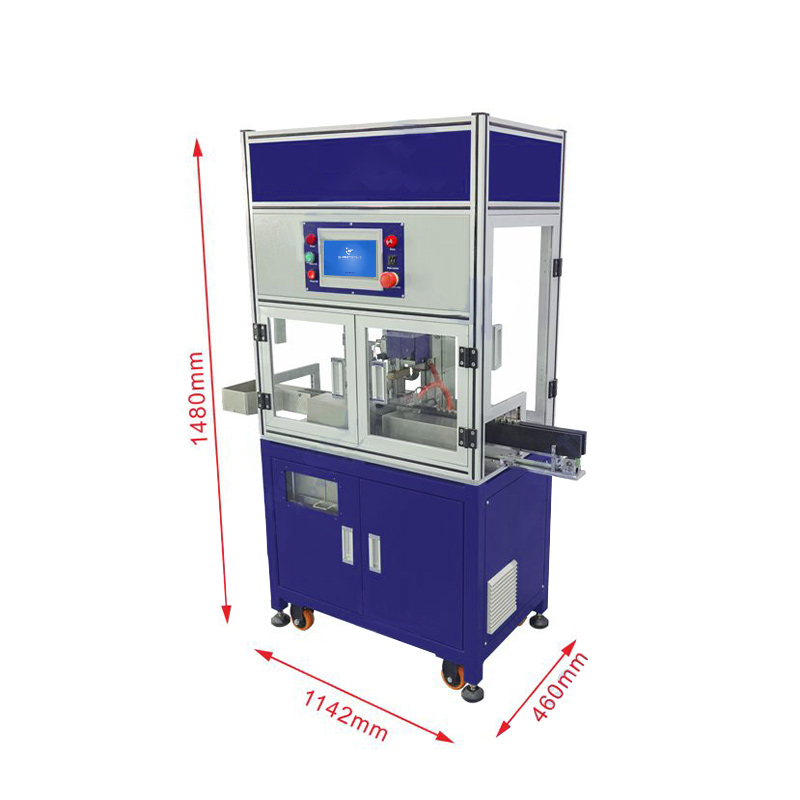

Equipment size | Solder pin collection box: can hold >50 Solder pins |
Weight | 360 pieces/hour (stable and continuous operation) |
