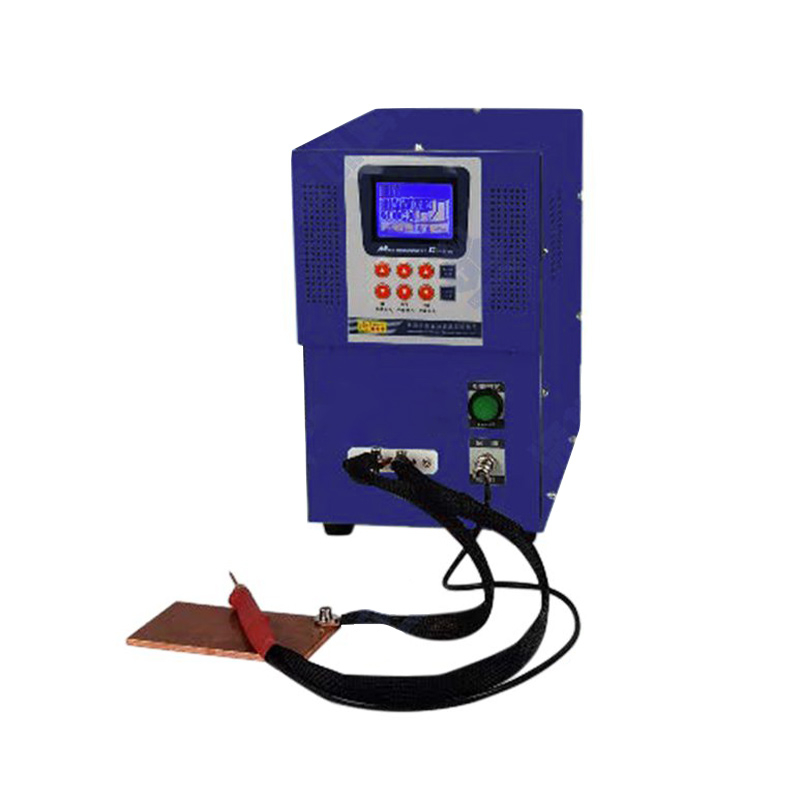

Handheld button type battery spot welder

The hand-held button battery spot welding machine is mainly used for welding the positive and negative ears of button battery and the shell.

The hand-held button battery spot welding machine is mainly used for welding the positive and negative ears of button battery and the shell.

Functional features:

Special hand-held rod, accurate alignment, flexible welding, convenient and fast.

The structure is simple, the appearance is beautiful and lightweight, the work table is small, and the space is saved.

Dc inverter welding power supply, microcomputer single-chip control;

Parameter keyboard setting adjustment, using LCD display;

Workpiece counting function, real-time display of welding quantity;

Small welding spark, solder joint does not change color, firm, uniform;

Input power supply	Single-phase AC220V±10% (AC110V can be customized), frequency 50Hz/60Hz, power: 600W
output power	8KW
Drive form	Hand press type
Input signal	microswitch
Pre welding current	0-99 cycles are adjustable
Welding time	The value ranges from 0.2 to 3.0ms
welding current	0-99 cycles are adjustable
Electrode pressure	0.5 2 KGF
Electrode diameter	Import welding needle Φ3mm
Welding wire length	Φ12m3，Length 650mm
Size of electrical box	L350W210H350mm
Whole weight	30kg
