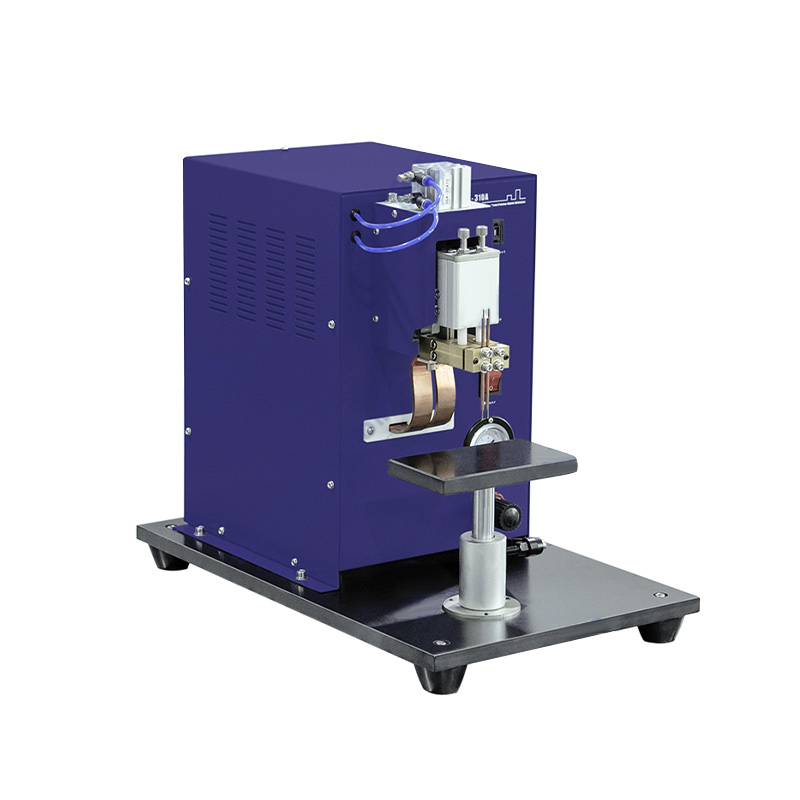

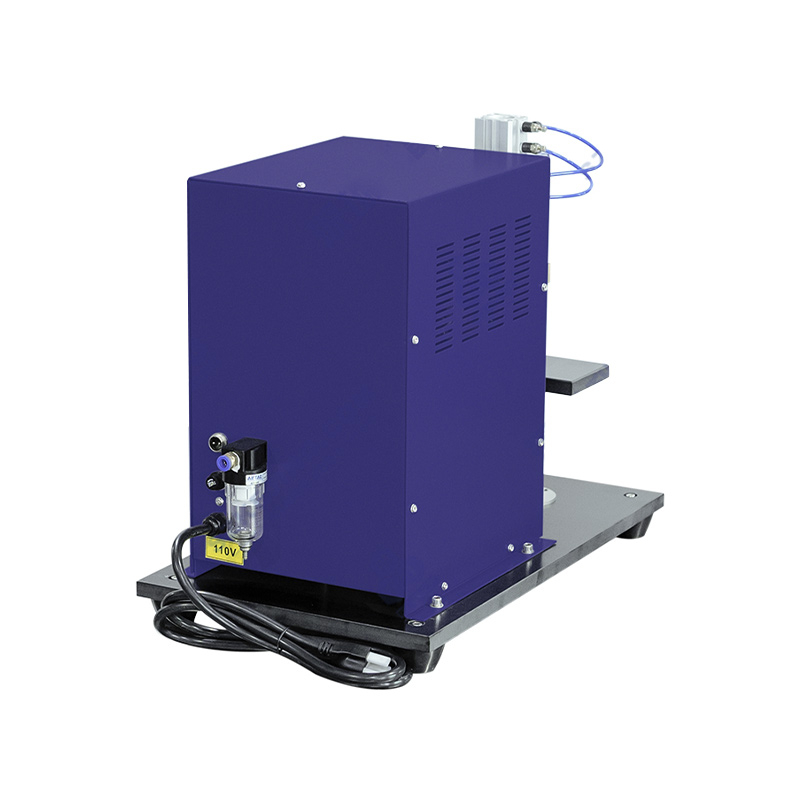

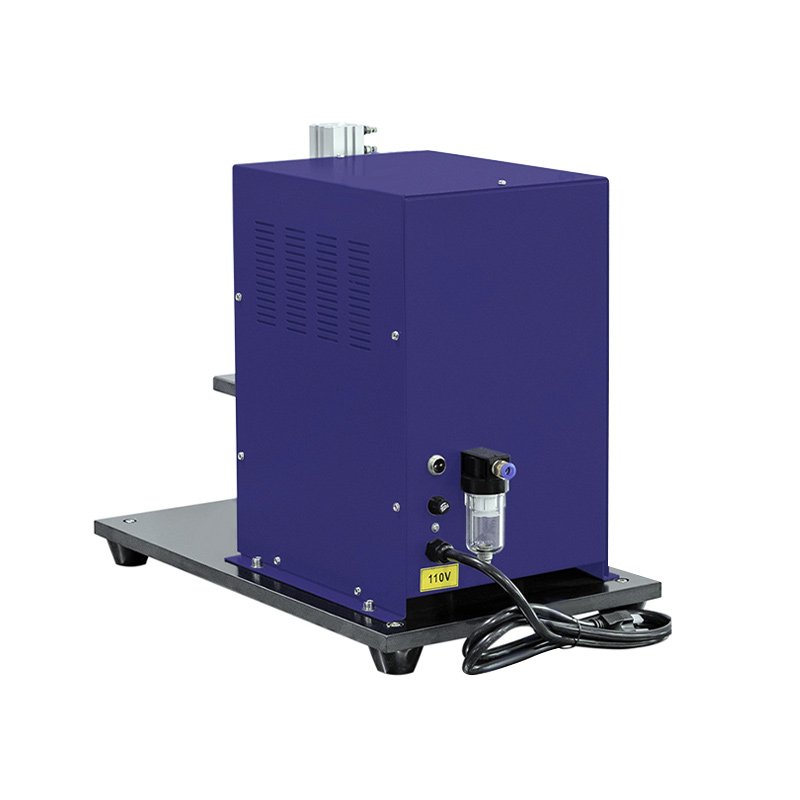

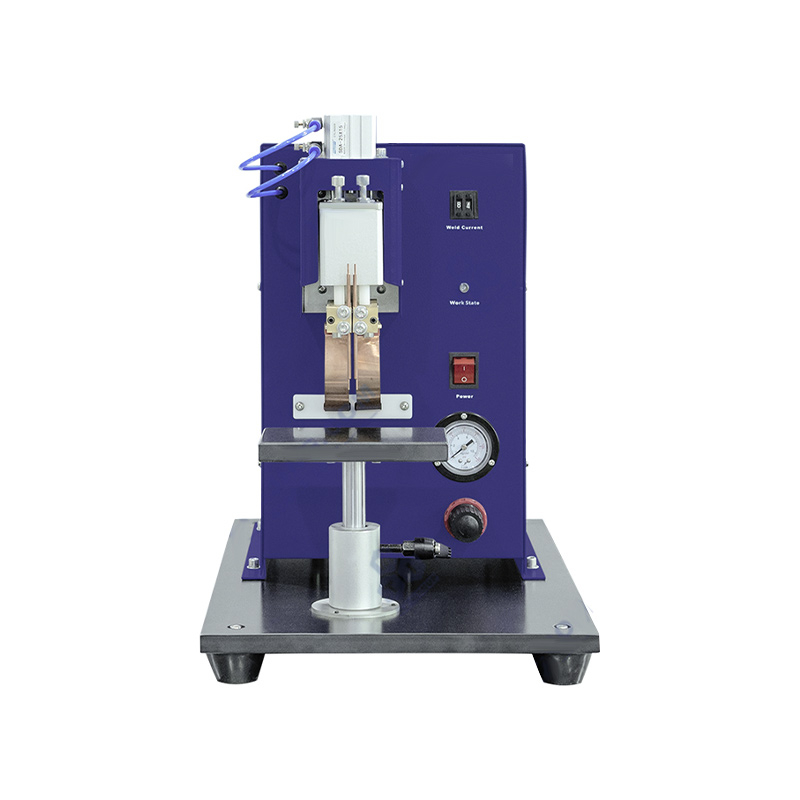

Inverter pneumatic spot welder

    The inverter pneumatic spot welding machine is a cylinder driven AC pulse welding machine, which can be used in the welding process of nickel-metal hydride, nickel-chromium and various lithium ion batteries


The inverter pneumatic spot welding machine is a cylinder driven AC pulse welding machine, which can be used in the welding process of nickel-metal hydride, nickel-chromium and various lithium ion batteries

Functional features:

Beautiful appearance, lightweight;

The welding current is stable, the solder joint size is uniform, the welding spark is small, no blackening

Cylinder drive, independent and adjustable welding pressure, good consistency of welding force;

The welding effect is good, the welding joint bonding force is strong, and the internal resistance of the battery is too large.

The pressure of the two welding needles is adjusted independently, and the adjustment is convenient to ensure the stable and reliable welding pressure.

Pneumatic spot welder is labor-saving and easy to connect with motorized equipment.

Tech parameter:

Power source

Single-phase AC220V±10% (AC110V can be   customized), frequency 50Hz/60Hz, power:  2KW

Air source

0.5-0.8MPa Air compressor

Work environment

The recommended ambient temperature is   25±3 ° C, humidity is 30 to 90RH, and no vibration or electromagnetic   interference is required

Welding power

10KW

Scope of application

0.03mm - 0. 5mm welding pieces

Overall dimension

L510mm*W310mm*H450mm

weight

30Kg
