Push-button ultrasonic welding machine

Ultrasonic welding machine (push-button) is a device that can be applied to the lamination welding of metal foil, which can be applied to lithium-ion batteries, nickel-metal hydride batteries

Inquire Now Next Product

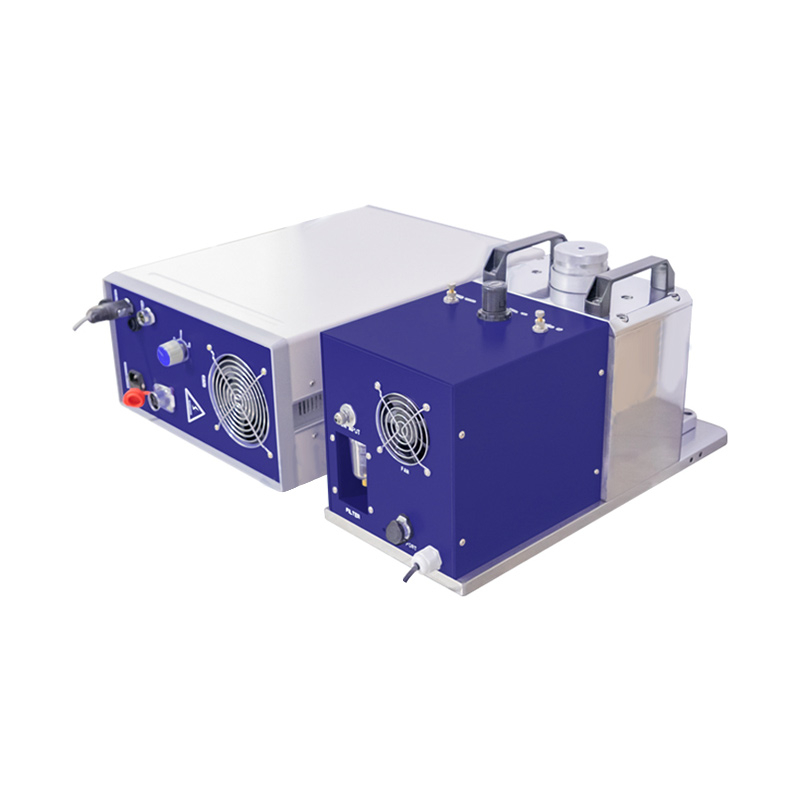

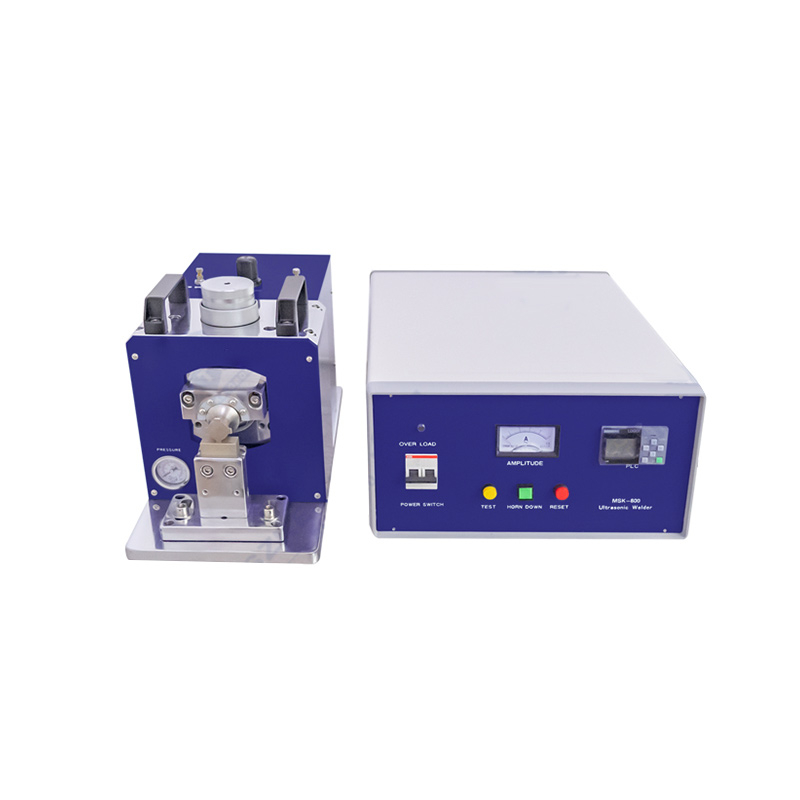

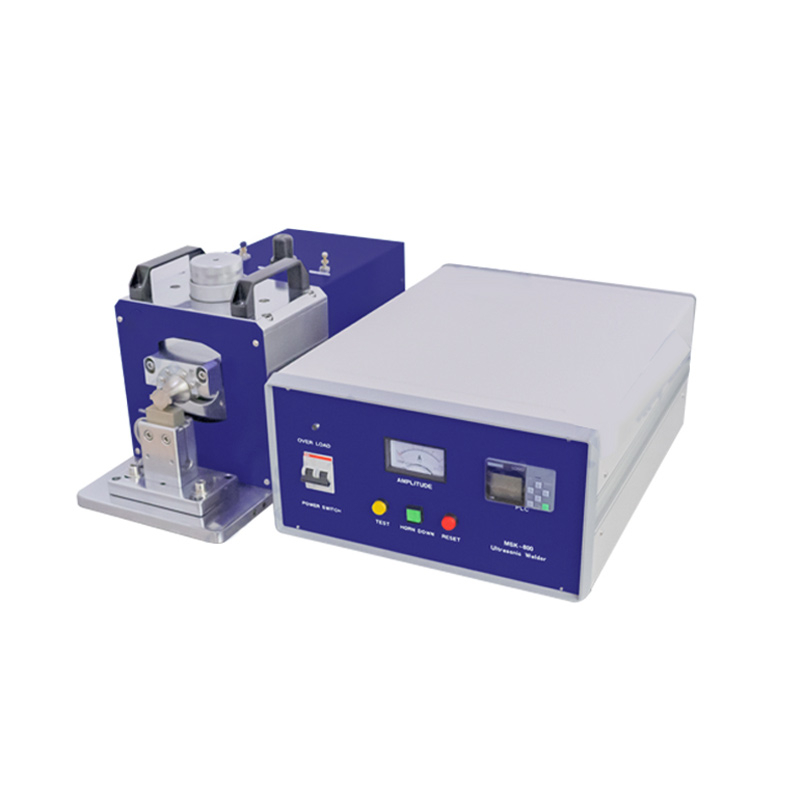

Ultrasonic welding machine (push-button) is a device that can be applied to the lamination welding of metal foil, which can be applied to lithium-ion batteries, nickel-metal hydride batteries, nickel-chromium batteries and various secondary battery welding processes. Equipment power selection of high-quality electronic components, stable power, good welding consistency.

Functional features:

Internal voltage regulating circuit, welding output power is stable, welding consistency is good;

Strong welding power, solid welding, low internal resistance, no virtual welding;

Can achieve up to 20 layers of copper foil laminated welding (depending on the thickness of copper foil, aluminum foil and pole ear thickness);

Welding mold using special abrasive steel, good wear resistance, long service life;

The ultrasonic electric box is controlled by SIEMENS PLC, intelligent and flexible, and the ultrasonic output performance is stable and the output power is strong.

Tech parameter：

Electric source	Single-phase AC110V-220V±10%, frequency 50Hz/60Hz, power about 800W
Air source	0.5-0.8MPa dry compressed air
Working environment	The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH, No vibration and electromagnetic interference
Welding power	50~800W adjustable (adjust welding amplitude 0~100%, the output power will change accordingly)
Ultrasonic frequency	40KHz±10%
Welding time	Less than 0.4s, adjustable
Weld head and weld base	Standard welding mold area: 3*6MM standard with two sets of welding head welding base. (Used for welding of positive and negative lugs of lithium battery cells)
Welding process 1	welding pure aluminum strip 0.10mm+ pure aluminum foil 0.016mm within 20 layers
Welding process 2	welding pure nickel strip 0.10mm+ copper foil 0.009mm within 20 layers

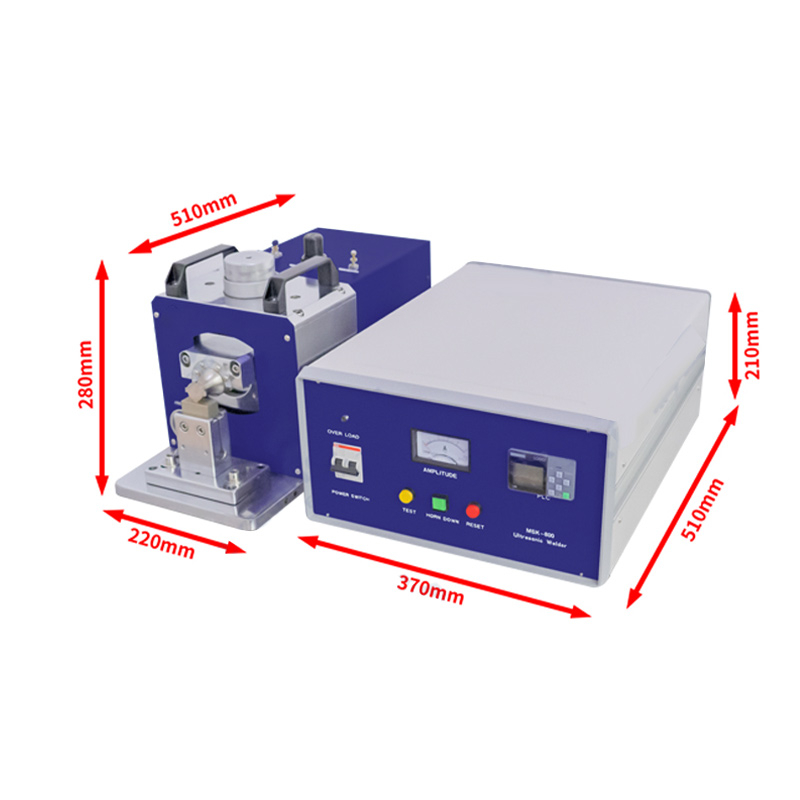

Optional function	Customizable feedthrough for use in an inert gas glove box The generator is about L510W220H280mm; Control box about L370W510H210mm The generator is about 37.5KG; Control box about 10KG
Equipment size	Customizable feedthrough for use in an inert gas glove box The generator is about L510W220H280mm; Control box about L370W510H210mm
weight	The generator is about 37.5KG; Control box about 10KG
