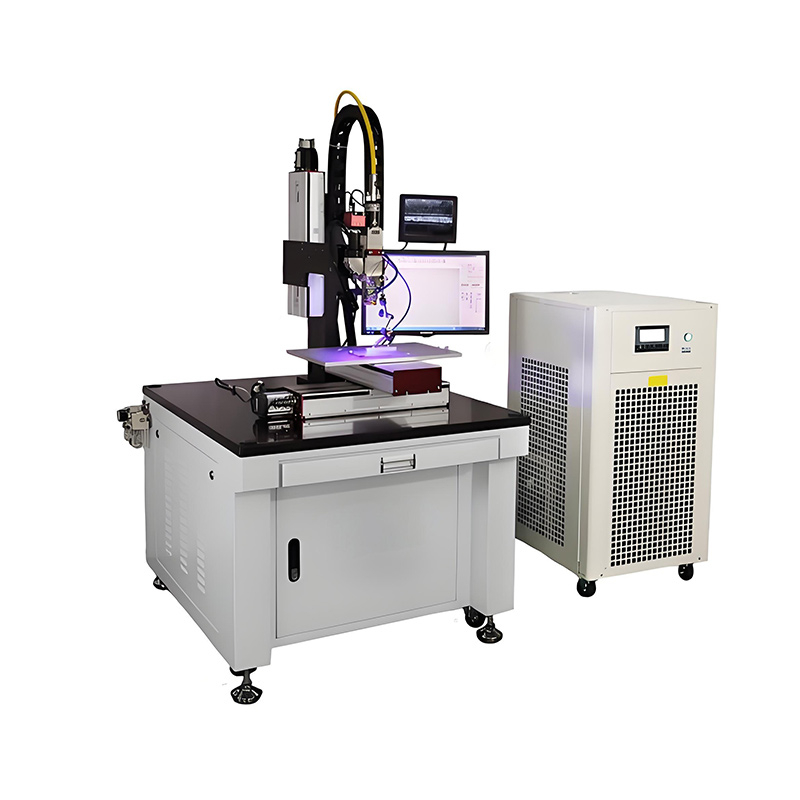

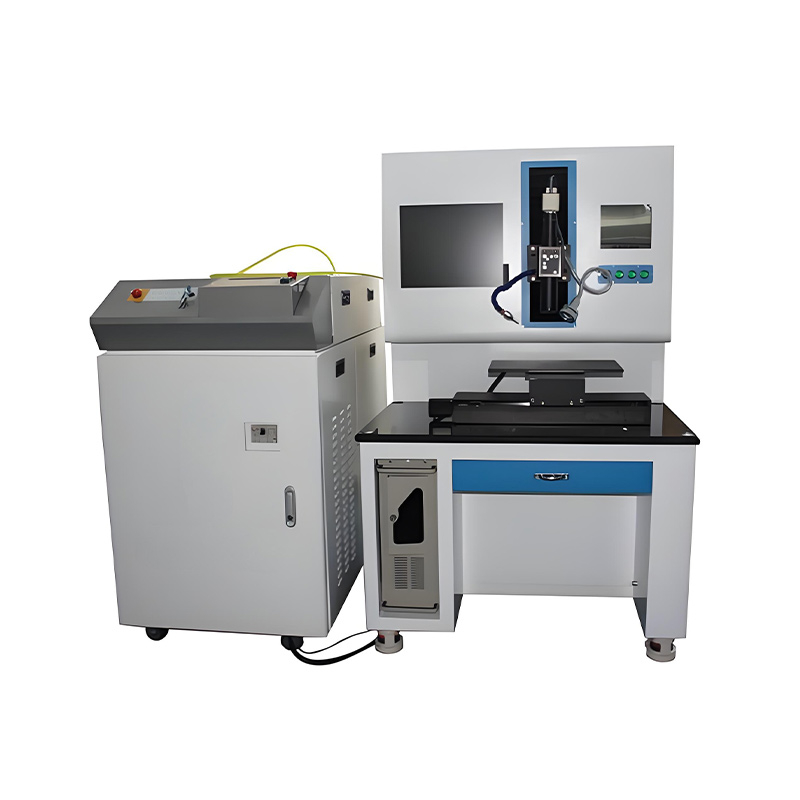

Square aluminum shell 2-in-1 Tab laser welding machineSquare aluminum shell 2-in-1 Tab laser welding machine

Square aluminum shell 2-in-1 Tab laser welding machine

    The square aluminum shell two-in-one Tap laser welding machine is a specialized laser welding equipment designed for the manufacturing process of square aluminum shell batteries. This device typically integrates multiple welding functions, capable of efficiently completing key steps such as battery cap sealing welding, cell soft connection with cover plate welding, and sealing pin welding

The square aluminum shell two-in-one Tap laser welding machine is a specialized laser welding equipment designed for the manufacturing process of square aluminum shell batteries. This device typically integrates multiple welding functions, capable of efficiently completing key steps such as battery cap sealing welding, cell soft connection with cover plate welding, and sealing pin welding.

Product Overview

The square aluminum shell two-in-one Tap laser welding machine is engineered to address the specific welding requirements in the production of square aluminum shell batteries. It is designed to handle various welding tasks with precision and speed, ensuring high-quality welds that are critical for the performance and safety of the batteries. The machine is often automated and integrated into the production line to enhance efficiency and consistency in manufacturing.

Product Features:

1. High Welding Speed: The machine is capable of high welding speeds, which is essential for keeping up with the demands of high-volume battery production.

2. Precision Welding: With its high energy density and stable power output, the Tap laser welding machine achieves precise welding with minimal damage to surrounding materials.

3. Automation and Integration: The Tap laser welding machine can be seamlessly integrated into automated production lines, improving productionefficiency and ensuring consistent manufacturing processes.

4. Versatility: Suitable for welding a variety of materials, including metals and plastics, and even different materials together, offering great flexibility.

5. Energy-Efficient and Environmentally Friendly: The laser welding process does not require additional materials like filler wires or fluxes, reducing environmental pollution.

Purchase Information:

If you are interested in our Square aluminum shell Tap laser welding machine, please feel free to contact us for more information and pricing.

Contact phone number: 183-3926-3857

Email: jack@cysitech.com

Contact person: Jack Yang

WeChat: 183 3926 3857

Detailed Parameter

Laser   machine

Operating   voltage

380V±10%

Laser   output power

2000W

Laser   wavelength

1070±10nm

Beam   quality

M21.3

Operation   mode

Continuous

Power   adjustable range

10-100%

Transmission   cable core/cladding diameter

50   μm

Output   fiber interface

QBH/QD

Power   stability

<   2%

Indicator   wavelength

650

Fiber   length

20m

Overall   power consumption

≤5   KW

Cooling   mode

Water   Cooling

Minimum   cooling capacity requirement

3   kW

Operating   temperature

5-45℃

Storage   temperature

-20-60℃

humidness

10-95%

Overall   dimension

L590*W482*H132mm

Machine   parameters

Effective   stroke

L1200*W1300*H2165   mm

Positioning   accuracy

L650*W520*H980   mm

Repeated   positioning accuracy

600mm*500mm


300mm

Effective   stroke





X   Axismm

600mm

Y   Axismm

500mm

Z   Axismm

300mm

Positioning   accuracy





X   Axismm

±0.05mm

Y   Axismm

±0.05mm

Z   Axismm

±0.05mm

Repeated   positioning accuracy





X   Axismm

±0.02mm

Y   Axismm

±0.02mm

Z   Axismm

±0.02mm

Fast   positioning speed

X   Axismm/sec

1000

Y   Axismm/sec

1000

Z   Axismm/sec

500

Class   of protection

IP54

 Major parts

Component Name

Component   Description

Major Host

laser   light source

Controller

Touch   screen control

Machine tool

servo   motor

Random   accessories

(wires,   welder head, etc.)

User Manual

1 set

 Application Fields of Square aluminum shell Tap laser welding machine:

Square aluminum shell two-in-one Tap laser welding machine is mainly used in the production process of square aluminum shell batteries, especially in the battery manufacturing of electric vehicles, energy storage systems, mobile communication equipment, laptop computers, power tools and other fields. Here are some specific application areas:

1. Electric vehicle (EV) batteries: In the battery packs of electric vehicles, square aluminum shell batteries are widely used due to their high energy density and good thermal management performance. The Tap laser welding machine is used to weld the top cover and battery housing of the battery to ensure the tightness and safety of the battery.

2. Energy storage systems: In renewable energy storage systems such as solar and wind energy, square aluminum shell batteries are favored for their long life and high reliability. Laser welding technology is used to ensure the long-term stability and performance of battery components.

3. Mobile communication base stations: Mobile communication base stations usually require high-capacity and high-reliability batteries as backup power. Square aluminum shell batteries are preferred for their superior performance, and Tap laser welding machines play an important role in the production of these batteries.

4. Laptops and tablets: In the manufacturing of batteries for laptops and tablets, square aluminum-shell batteries are popular for their thinness and high energy density. Tap laser welding machines are used to achieve precise and firm connection of battery components.

5. Power tools: Power tools require high power and high capacity batteries to provide lasting power. Square aluminum shell batteries are ideal because of their ability to provide the required performance, and Tap laser welding machines ensure battery reliability and durability.

6. Home energy storage: As the demand for renewable energy and emergency power in households increases, the use of square aluminum shell batteries in home energy storage systems is also increasing. Laser welding technology ensures a high standard of quality and safety in the manufacture of these batteries.

7. Military and aviation: In the military and aviation fields, the performance and safety requirements of batteries are extremely high. Square aluminum-shell batteries are valued for their ability to provide stable power under extreme conditions, and Tap laser welding machines play a key role in the production of these high-performance batteries.



Application Case: " Sealing Pin Laser Welding Process Using a Tap laser welding machines "



Using a square aluminum shell two-in-one Tap laser welding machine to weld aluminum alloy involves the following steps:

1. Preparation of Aluminum Parts:

Clean the aluminum plates to remove dirt, including polishing, chemical cleaning, and sandblasting to eliminate surface oil and impurities.

2. Positioning and Clamping Aluminum Parts:

Use clamps or fixtures to ensure the metal plates are correctly aligned with no gaps at the edges.

Adjusting Laser Parameters for Specific Aluminum Alloys:

Adjust the laser power based on the type and thickness of the aluminum alloy, and select continuous or pulse welding modes.

3. Welding Process:

The laser welding process is divided into three stages: heating, melting mixing, and cooling solidification.

Heating: The laser beam heats a specific part of the aluminum components.

Melting Point: The heat melts this part and mixes the molten aluminum of the two separate components.

Solidification: The mixed molten metal forms a solid joint as it cools.

4. Surface Treatment:

Clean the welding area after welding, remove excess material, and apply other surface treatment techniques such as anodizing, painting, or electrophoretic coating.

5. Pre-weld Cleaning:

Carefully scrub the weld joint with a stiff brush in hot water or soak it in a specific solution.

6. Choosing the Right Specification Parameters:

Determine the welding specification parameters based on the welding characteristics of the aluminum alloy, including welding current, wire feeding speed, and welding speed.

7. Selection of Protective Gas:

Choose the appropriate protective gas for the mother material of different thicknesses, such as Ar100% or Ar70% + He30%.

8. Bevel Treatment:

For thick plate T-joints, it is required to fill the bevel plus an additional fillet weld, ensuring that the total size of the weld is not less than the plate thickness.

9. Choice of Welding Gun Angle:

In the direction of welding, the welding gun angle is generally controlled at around 90° to ensure adequate gas protection.

These steps outline the basic process of welding aluminum alloy, ensuring the quality of the weld and improving welding efficiency.

These steps provide a basic framework, but specific operations may vary depending on the type, material, and design requirements of the battery. In practice, adjustments may be necessary based on the experimental objectives and equipment capabilities.
