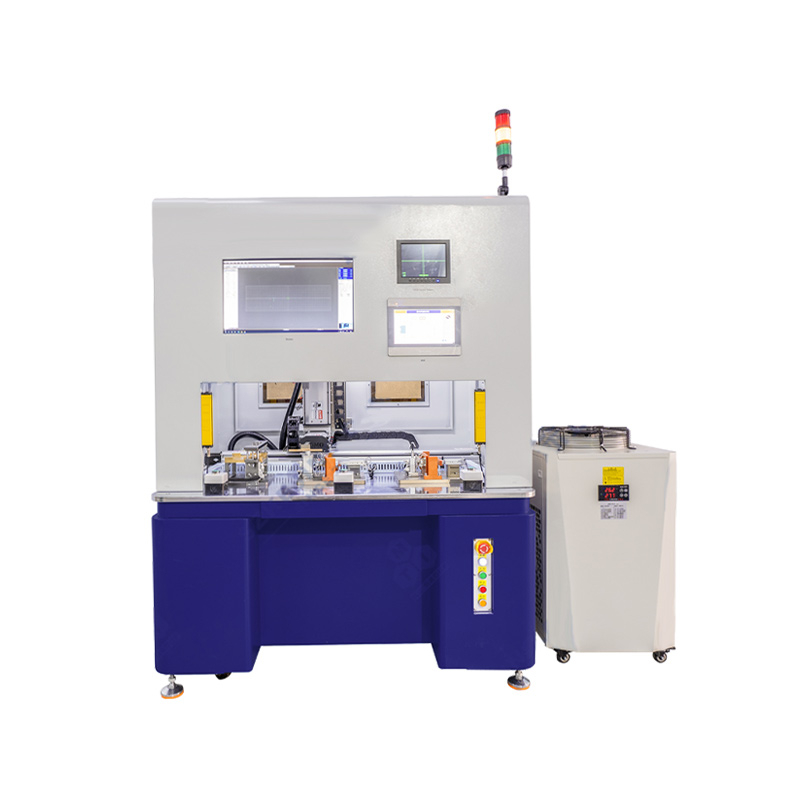

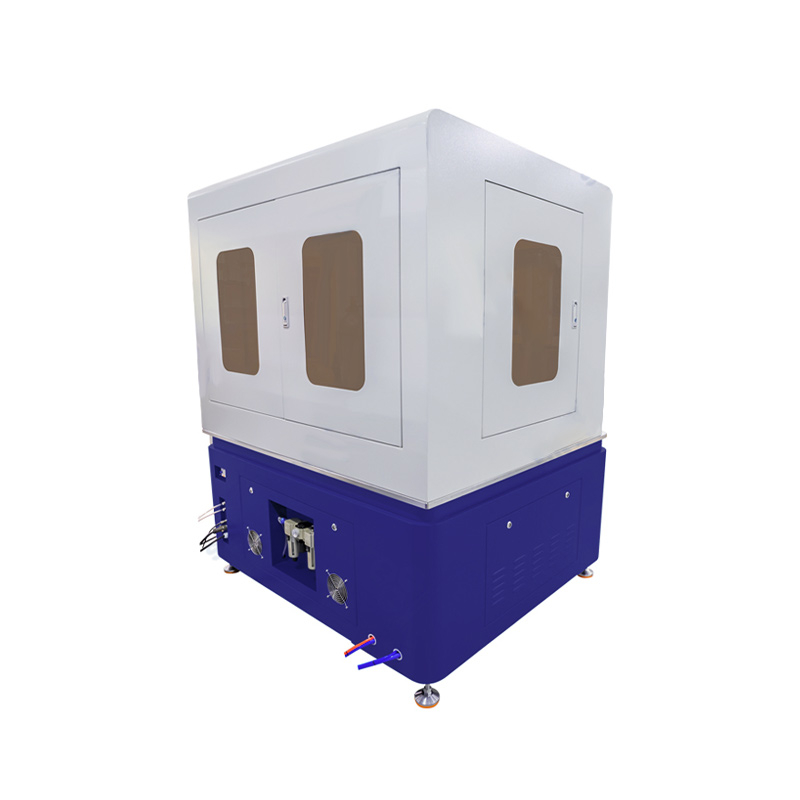

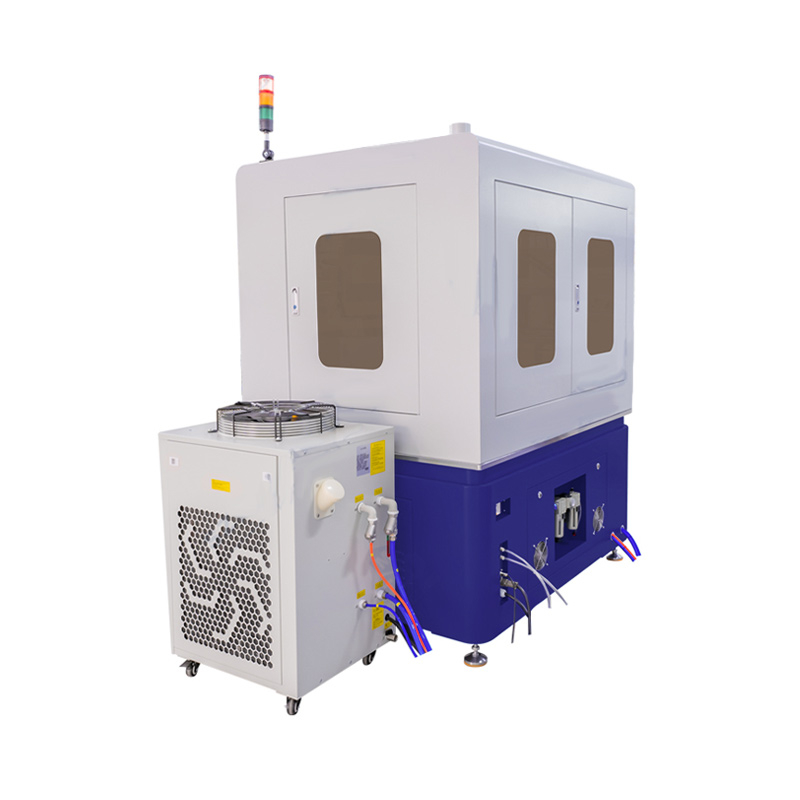

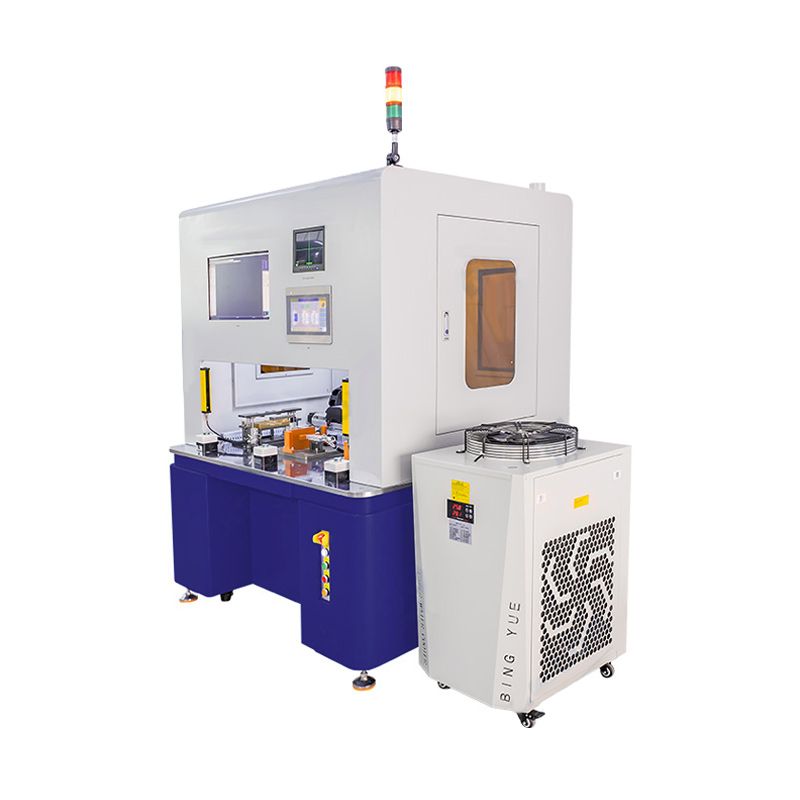

Square aluminum shell sealing nail laser welding machine

    The laser welding machine selects the most advanced fiber laser as the laser source in the world, specially designed for the laser with high reflection material (aluminum/copper), combined with the machine tool independently developed and designed and manufactured by the company,

The laser welding machine selects the most advanced fiber laser as the laser source in the world, specially designed for the laser with high reflection material (aluminum/copper), combined with the machine tool independently developed and designed and manufactured by the company, with good rigidity and stability; With precision rail drive, equipped with high response servo motor, high precision, fast speed; Mainly for fast and precise welding, fiber laser has a high beam quality, high conversion rate, maintenance-free, stable and reliable, low operating costs and small size and a series of advantages, is the preferred equipment for lithium laser welding processing.

Functional characteristics:

High life double drive platform cabinet;

Safe and reliable, all movable doors of the equipment are installed with access control switches;

Laser welding spot fine, high penetration, small taper, high precision, the welding surface effect is flat without bubbles;

The laser welding process is pollution-free, and the heat affected area is small and the deformation is small.

Welding software editing is easy to learn.

Tech parameter:

Laser welding machine parameter

Operating voltage

Single-phase AC220V±10%, frequency 50Hz

Power: 3.6KW

Working current

20A

Laser output power

1500W

Laser wavelength

1070±10nm

Core diameter

50μm

Operation mode

Continuous/Modulated

Power adjustable range

10-100%

Average output power

1500W

Welding speed

10-100m/s

Long-term power stability

±1.5%

Modulation frequency

30-5K HZ

Fiber length

20m

Overall power consumption

≤3.6KW

Cooling mode

Water Cooling

Operating temperature

0-40℃

Storage temperature

-20-60℃

humidness

10-95%

Overall dimension

L536*W482*H66mm

Machine parameters

Overall dimensions of the machine

L1200*W1300*H2165 mm

Overall dimensions of the chiller

L650*W520*H980 mm

Maximum processing dimensions

600mm*500mm

Maximum height of workpiece

300mm

Effective stroke

Positioning accuracy

X axis (mm)

600mm

Y axis (mm)

500mm

Z axis (mm)

300mm



Repeat positioning accuracy



X axis (mm)

±0.05mm

Y axis (mm)

±0.05mm

Z axis (mm)

±0.05mm

Fast positioning speed

Effective stroke



X axis (mm)

±0.02mm

Y axis (mm)

±0.02mm

Z axis (mm)

±0.02mm

Positioning accuracy

X axis (mm)

1000

Y axis (mm)

1000

Z axis (mm)

500

Protection level

IP54
