Square aluminum shell three-in-one laser welding machineSquare aluminum shell three-in-one laser welding machine

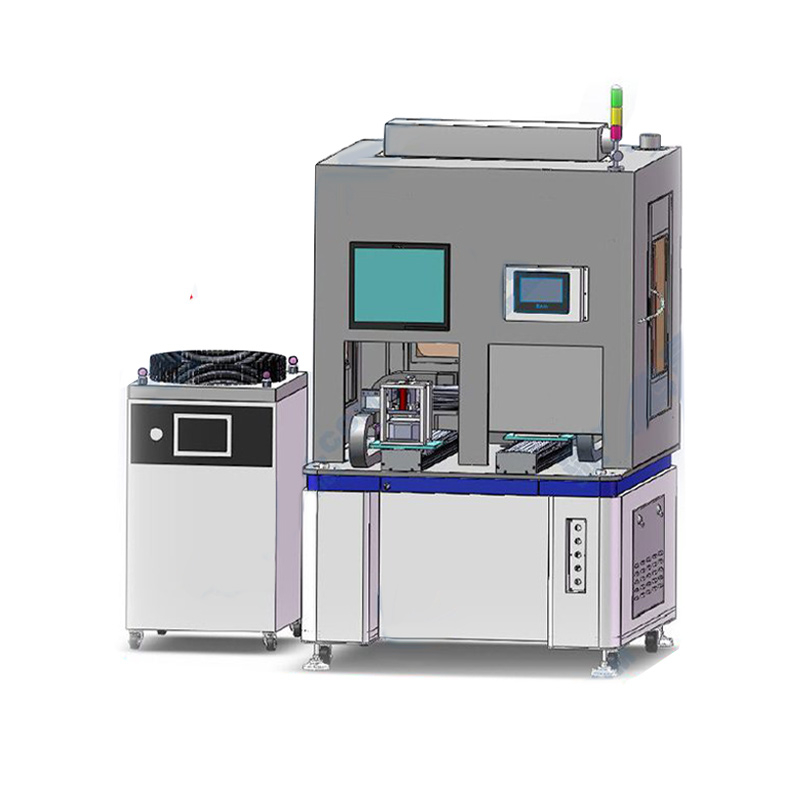

Square aluminum shell three-in-one laser welding machine

    The laser welding machine selects the most advanced fiber laser as the laser source in the world, specially designed for the laser with high reflection material (aluminum/copper), combined with the machine tool independently

The laser welding machine selects the most advanced fiber laser as the laser source in the world, specially designed for the laser with high reflection material (aluminum/copper), combined with the machine tool independently developed and designed and manufactured by the company, with good rigidity and stability; With precision rail drive, equipped with high response servo motor, high precision, fast speed; Mainly for fast and precise welding, fiber laser has a high beam quality, high conversion rate, maintenance-free, stable and reliable, low operating costs and small size and a series of advantages, is the preferred equipment for lithium laser welding processing.

Functional features:

High life double drive platform cabinet;

Safe and reliable, each movable door of the equipment is installed with access control switches, and the front is installed with safety grating to prevent false start during debugging;

Laser welding spot fine, high penetration, small taper, high precision, the welding surface effect is flat without bubbles;

The heat affected area of laser welding is small and the deformation is small.

Welding software editing is easy to learn.

Tech parameter

Major   Parameter

Power   Supply

Single-phase   AC220V±10%, frequency 50Hz, power about 3.5KW

Gas   source

0.5-0.8Mpa   dry compressed air

0.1-0.2Mpa   inert gas

working   temperature

10-50℃

Environmental   requirements

Temperature:   10 ~ 40℃, humidity: less than 90%, air pressure: 86 ~ 106KPa

Laser   output power

2000W

Operation   mode

Continuous/modulation

Adjustable   power range

10-100%

Long   term power stability

±1.5%

Fiber   length

20m

Cooling   method

Water   cooling

Water   cooling temperature requirements

2025℃depending   on working hours

Sample   stage parameter

Maximum   machining size

Customized   according to the size of the prototype cell

Maximum   height of work

Customized   according to the size of the prototype cell

Effective   travel X axis

X   Axis

880mm

Y   Axis

230mm

Z   Axis

240mm

Fast   positioning speed

X   Axis

500mm/s

Y   Axis

500mm/s

Z   Axis

500mm/s

Class   of protection

IP54

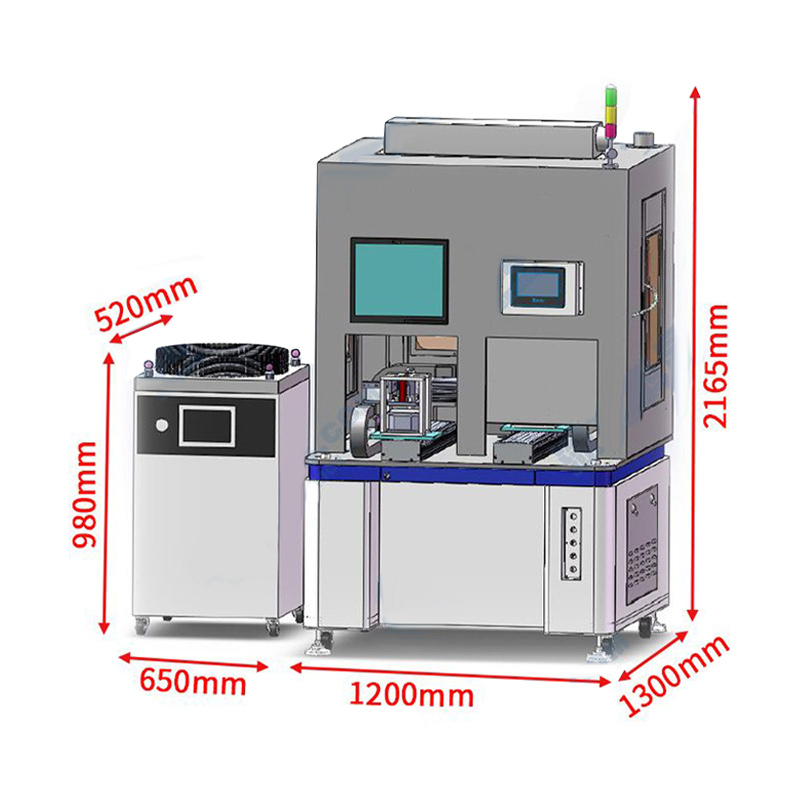

Overall   dimensions

L1400*W1210*H1880mm(Tri-color   lights not included

Body   weight of equipment

About   630kg

Water   chilling machine

Power

Single-phase   AC220V±10%, frequency 50Hz, power about 2.8 KW

Scope   of use

Ambient   temperature ≤40℃, cold water temperature 8 ~ 30℃

Nominal   cooling capacity

8.5KW

Normal   temperature pump rated head

1435m

Rated   flow of normal temperature pump

58L/min

Rated   lift of chilled water pump

4852m

Rated   flow of chilled water pump

3366L/min

Chilled   water inlet and outlet port

DN15   inner teeth, quick connector 19

Room   temperature water inlet and outlet water interface

DN15   inner teeth, quick fitting 10

Tank   volume

42L

Flow   protection

Disconnect   when ≤0.3bar

refrigerant

R22

Chiller   dimensions

L900*W670*H940mm

Chiller   weight

295kgincludes water chiller
