Ultrasonic pole ear welding machine, compatible with the core pre-welding and final welding function. The cell and the pole lug are put into the jig manually

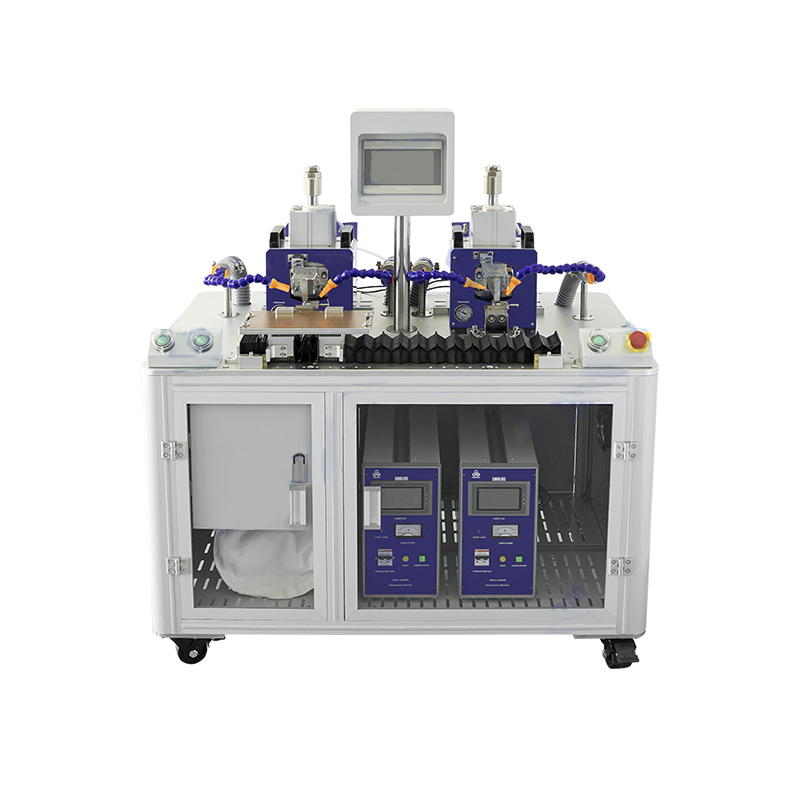

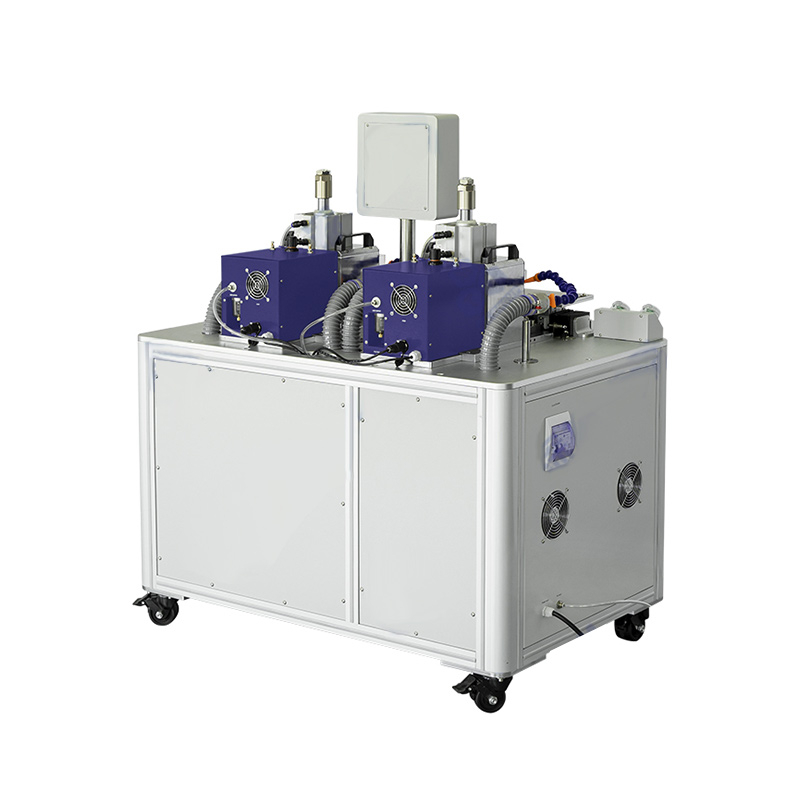

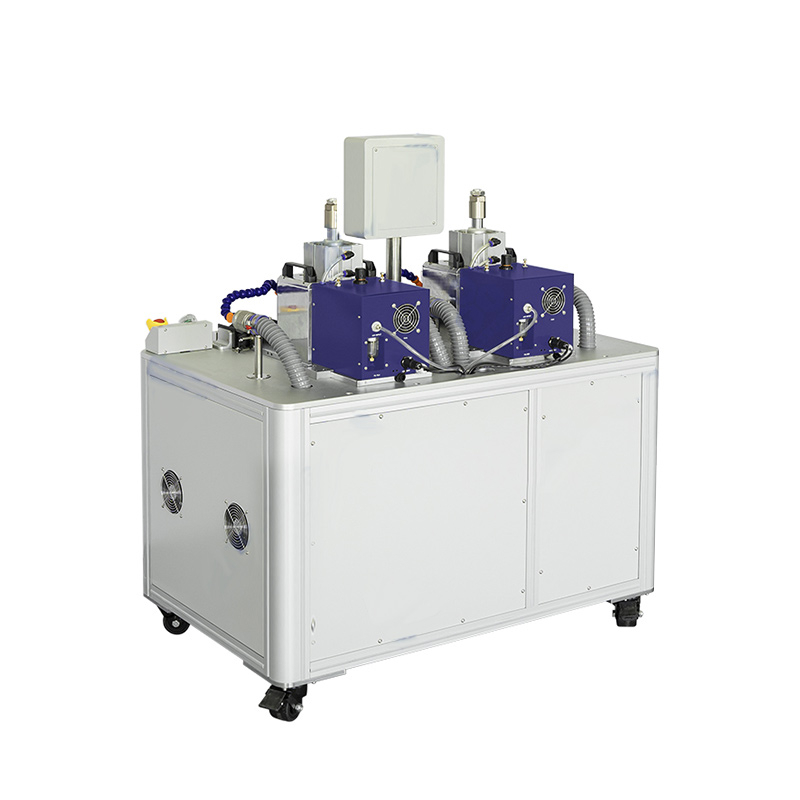

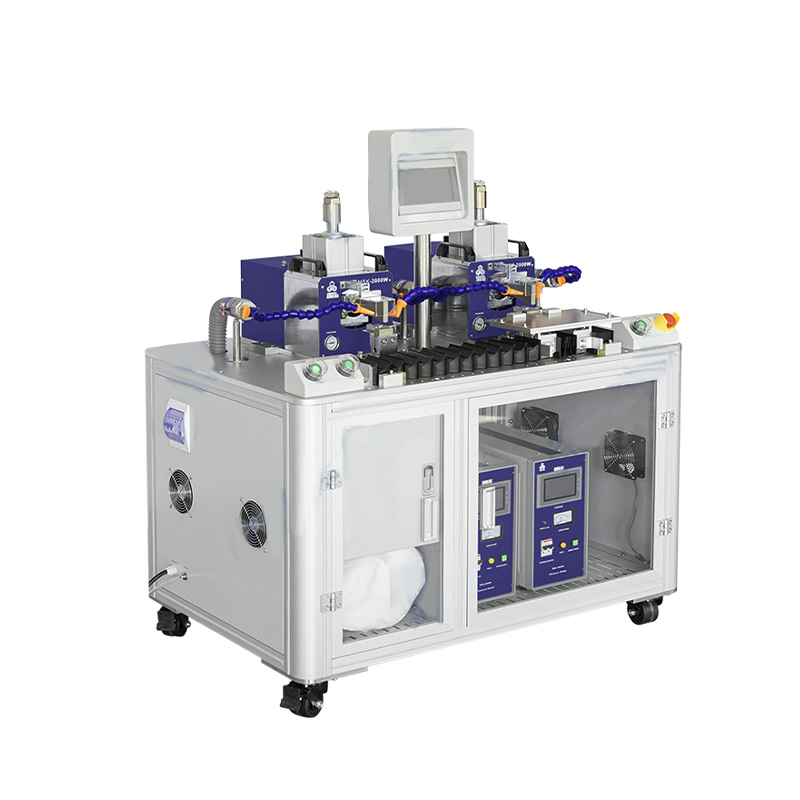

Ultrasonic pole ear welding machine, compatible with the core pre-welding and final welding function. The cell and the pole lug are put into the jig manually, and the jig is manually slipped to the welding station to achieve welding. The equipment includes material sensing, electrode welding, dust removal and other units. Solder joint size, single-outlet lug fixture or double-outlet lug fixture can be customized according to customer requirements.
Double station welding, positive and negative electrode welding separation, welding parameters set independently;
Can be customized single lug fixture or double lug fixture, fast positioning of the cell and the pole;
Compatible with positive ear pre-welding, negative ear pre-welding, positive aluminum ear welding, negative nickel ear welding four functions;
Can be used with the company's pole ear cutting and shaping machine, through the cell jig for circulation, only once the cell can be installed to achieve the pole ear pre-welding, cutting, pole ear welding, reshaping four continuous processes, reduce the chance of human contact with the cell;
Stable and strong welding power, solid welding, good consistency, high yield;
Can achieve up to 30 layers of copper foil or aluminum foil laminated welding;
Welding mold using special mold steel, good wear resistance, long service life;
Equipped with dust removal device, can collect the dust generated during welding;
Configure the starting mode of double start button plus material sensor to ensure safe operation;
Solder joint size can be customized;
HMI operation, digital Settings, easy to use.
Power supply | Single-phase AC220V±10%, frequency 50Hz, power 2.6KW |
Air source | 0.5-0.8MPa compressed air |
Applicable cell | Single pole ear: Max.L380*W210 (pole ear) mm Double outlet ear: Max.L380*W150 (pole ear) mm, see the battery size diagram |
clamp | Standard quantity 1 set (cell size provided by customer) |
Welding power | 0-2000Wadjustable |
Welding head | Standard with 2, solder joint size 3*6mm, can be customized |
Welding time | Less than 0.4s, adjustable |
Ultrasonic frequency | 20KHz |

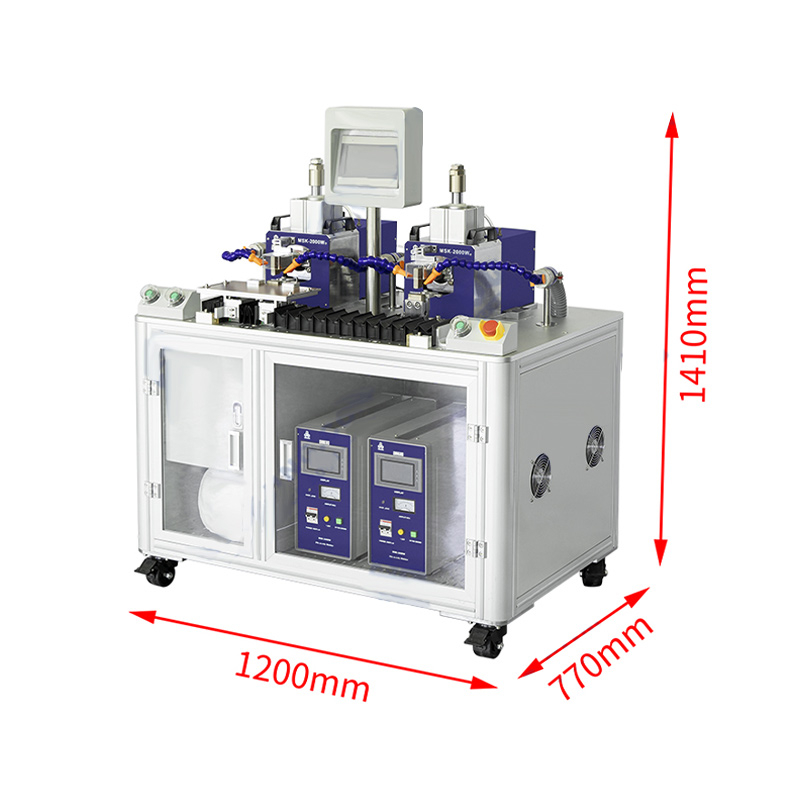

Equipment size | L1200*W770*H1410mm |
weight | 400Kg |
